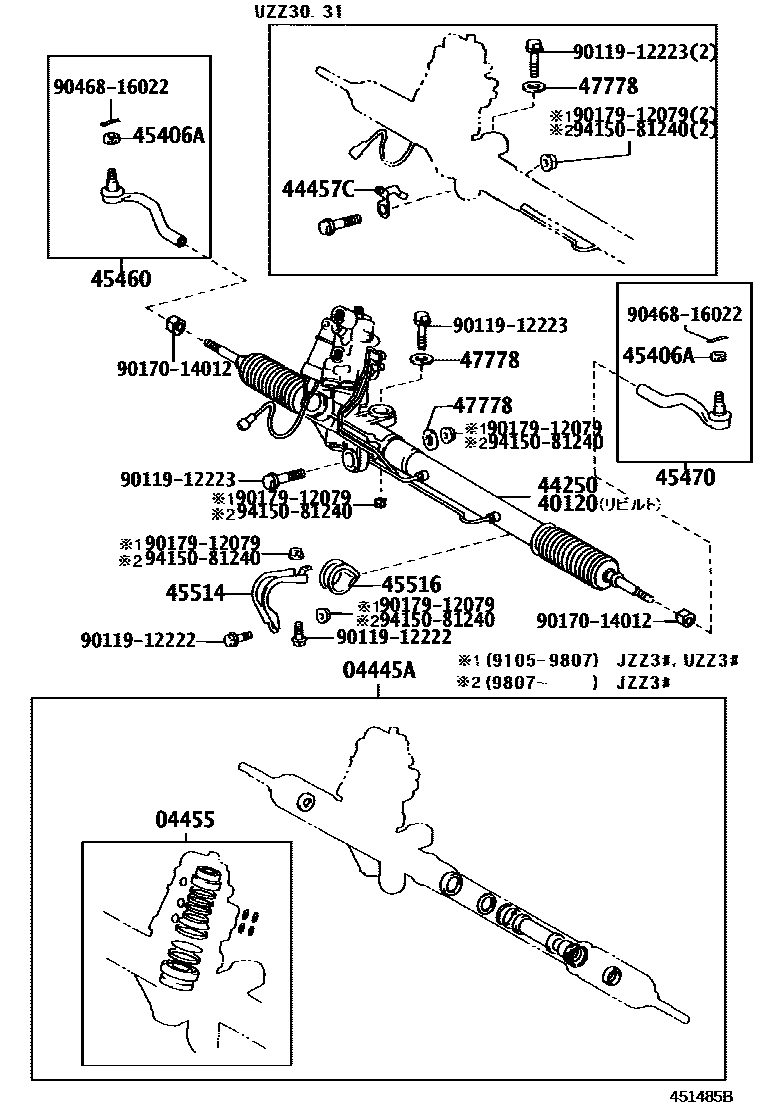

FRONT STEERING GEAR & LINK

0001 1 0003 1 0005 1 0006 1 0007 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-24050iJZZ30,UZZ30,31199105-199212

main04445-24051iJZZ3#,UZZ3#199212-200012

main04445-24060iUZZ32199105-199212

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-24050iJZZ30,UZZ3#199105-199212

main04455-24051iJZZ3#,UZZ3#199212-200012

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-24090iJZZ30,UZZ30,31199105-199401

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-24080iUZZ32199105-199608

main44250-24090iJZZ30,UZZ30,31199105-199401

main44250-24120iJZZ3#,UZZ31199401-199608

main44250-24140iJZZ3#,UZZ31199608-200012

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-24140iUZZ3#199105-199709

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12002×2iJZZ3#,UZZ3#199305

main90171-12028×2iJZZ30,UZZ3#199105-199305

45460ROD ASSY, TIE, RH

main45460-19235iJZZ3#,UZZ31199401-200012

main45460-29365iJZZ30,UZZ3#199105-199401

45470ROD ASSY, TIE, LH

main45470-19065iJZZ3#,UZZ31199401-200012

main45470-29135iJZZ30,UZZ3#199105-199401

45514BRACKET, STEERING RACK HOUSING, NO.1

main45515-24030iJZZ3#,UZZ3#199105

45516GROMMET, STEERING RACK HOUSING, NO.1

main45517-24030iJZZ3#,UZZ3#199105

47778RETAINER, STEERING RACK HOUSING

main47778-24010iUZZ30,31199105-199709

9011912222

main90119-12222

9011912223

main90119-12223

9017014012

main90170-14012

9017912079

main90179-12079

9046816022

main90468-16022

9415081240

main94150-81240

17 parts on this diagram · 5 diagrams in section
