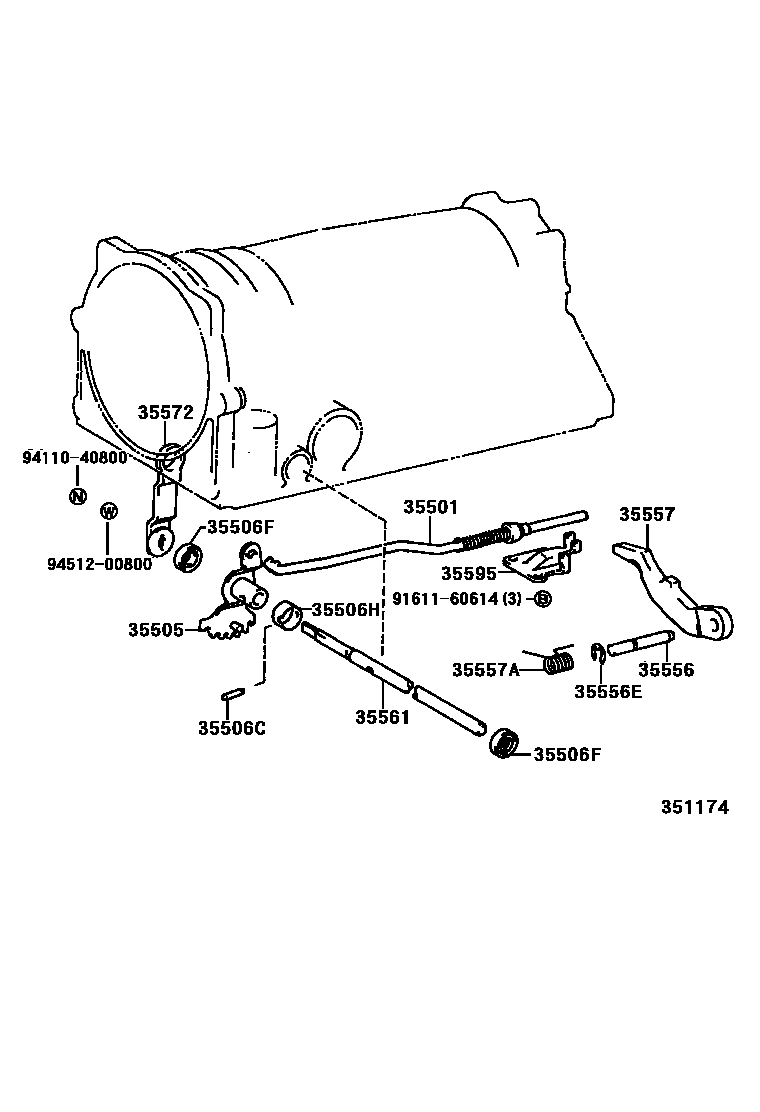

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E 0002 1A340E 0003 1A340E 0004 1A341E 0005 1A341E

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iJZZ31,UZZ31199105-199608

main35501-60010iJZZ30..ATM199608

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22060iJZZ31199401

main35505-50010iJZZ30,UZZ3#..ATM199105

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iJZZ3#,UZZ3#..ATM199105

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iJZZ3#,UZZ3#..ATM199105-199207

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iJZZ3#,UZZ3#..ATM199105

35556SHAFT, PARKING LOCK PAWL

main35556-30020iJZZ3#,UZZ3#..ATM199105

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iJZZ3#,UZZ3#..ATM199105

35557PAWL, PARKING LOCK

main35557-30020iJZZ3#,UZZ3#..ATM199105-199608

main35557-60020iJZZ30..ATM199608

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJZZ3#,UZZ3#..ATM199105

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJZZ30..ATM199105-199207

main35561-50010iUZZ3#199105-199207

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30060iJZZ3#,UZZ3#..ATM199105-199306

main35572-50011iUZZ3#199105-199306

sub35572-30060

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJZZ3#,UZZ3#..ATM199105-199608

main35595-60010iJZZ30..ATM199608

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 5 diagrams in section
