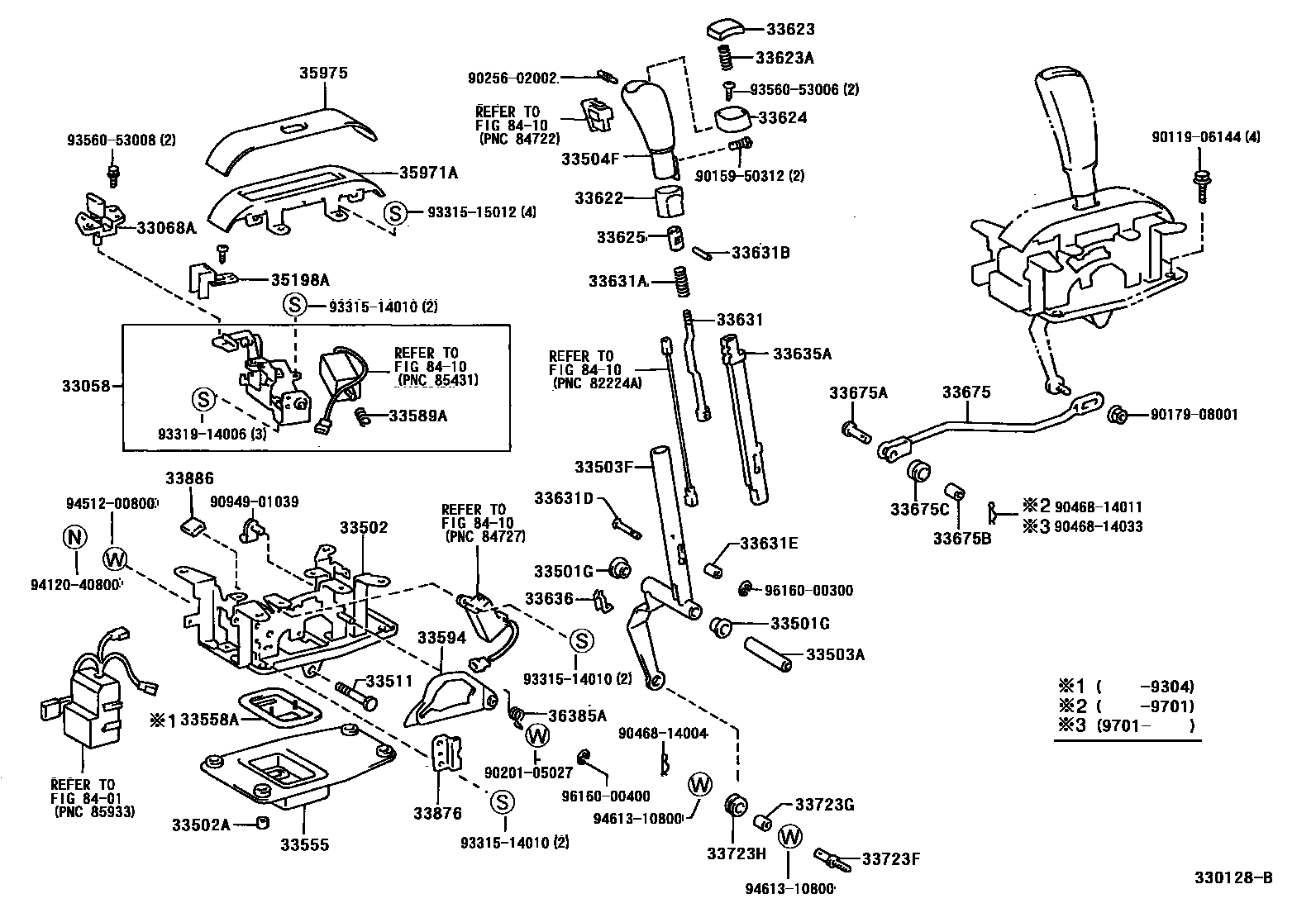

SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33068ABUTTON SUB-ASSY, SHIFT LOCK RELEASE(FOR FLOOR SHIFT)
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
33503ACOLLAR(FOR SHIFT LEVER)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM0#,1#,6#
DARK SPRUCE,TRIM6#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33555BOOT, SHIFT LEVER
33558ASEAL, SHIFT LEVER BOOT DUST, NO.1
33589ASPRING, COMPRESSION (FOR SHIFT LOCK SOLENOID LINK)
33594PLATE, SHIFT LOCK (FOR FLOOR SHIFT)
33622COVER, SHIFT LEVER KNOB, NO.1
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33624HOLDER, KNOB COVER
33625SLEEVE, SHIFT LEVER KNOB
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631BPIN, SLOTTED SPRING (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33631EROLLER (FOR DETENT ROD)
33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33636GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33675ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33876GUIDE, SHIFT LOCK PLATE
33886STOPPER, SHIFT LEVER
35198ABRACKET, WIRE HARNESS CLAMP, NO.4
35971AHOUSING, POSITION INDICATOR, UPPER
35975COVER, SLIDE (FOR POSITION INDICATOR)
36385ASPRING, FLOOR SHIFT LEVER TORSION, NO.1
8401
8410
9011906144
9015950312
9017908001
9020105027
9025602002
9046814004
9046814011
9046814033
9094901039
9331514010
9331515012
9331914006
9356053006
9356053008
9412040800
9451200800
9461310800
9616000300
9616000400
59 parts on this diagram · 4 diagrams in section
