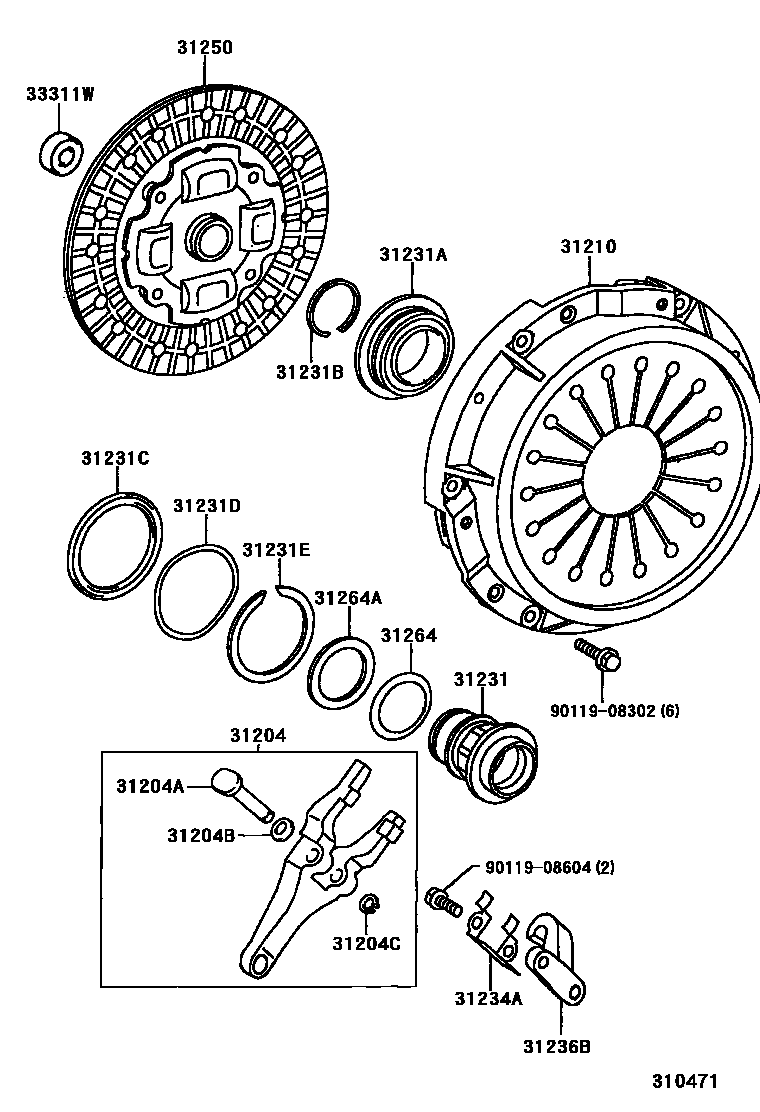

CLUTCH & RELEASE FORK

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-14031iJZZ30..MTM199105-200012

31204APIN(FOR CLUTCH RELEASE FORK)

main90249-10132iJZZ30..MTM199105-200012

31204BWASHER, WAVE(FOR CLUTCH RELEASE FORK)

main90206-10008iJZZ30..MTM199105-200012

31204CRING, E(FOR CLUTCH RELEASE FORK)

main96160-00800iJZZ30..MTM199105-200012

31210COVER ASSY, CLUTCH

main31210-14150iJZZ30..MTM199105-199608

main31210-22140iJZZ30..MTM199608

31231HUB, CLUTCH RELEASE BEARING

main31231-14040iJZZ30..MTM199105

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45012iJZZ30..MTM199105

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main96152-00450iJZZ30..MTM199105

31231CWASHER, PLATE(FOR CLUTCH RELEASE BEARING)

main90201-71001iJZZ30..MTM199105

31231DWASHER, WAVE(FOR CLUTCH RELEASE BEARING)

main90206-72001iJZZ30..MTM199105

31231ERING, SHAFT SNAP(FOR CLUTCH RELEASE BEARING)

main90520-67001iJZZ30..MTM199105

31234ASPRING, RELEASE FORK SUPPORT

main31234-14030iJZZ30..MTM199105

31236BSUPPORT, RELEASE FORK

main31236-14020iJZZ30..MTM199105

31250DISC ASSY, CLUTCH

main31250-14183iJZZ30..MTM199105-199608

sub31250-14184

main31250-22350iJZZ30..MTM199608-200003

sub31250-22351

main31250-22351iJZZ30..MTM200003

sub31250-22352

31264SPRING, CLUTCH THRUST CONE

main31264-14040iJZZ30..MTM199105

31264AWASHER, PLATE(FOR CLUTCH THRUST CONE SPRING)

main90201-45023iJZZ30..MTM199105

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iJZZ30..MTM199105

sub90363-12024

9011908302

main90119-08302

9011908604

main90119-08604

19 parts on this diagram · 1 diagram in section
