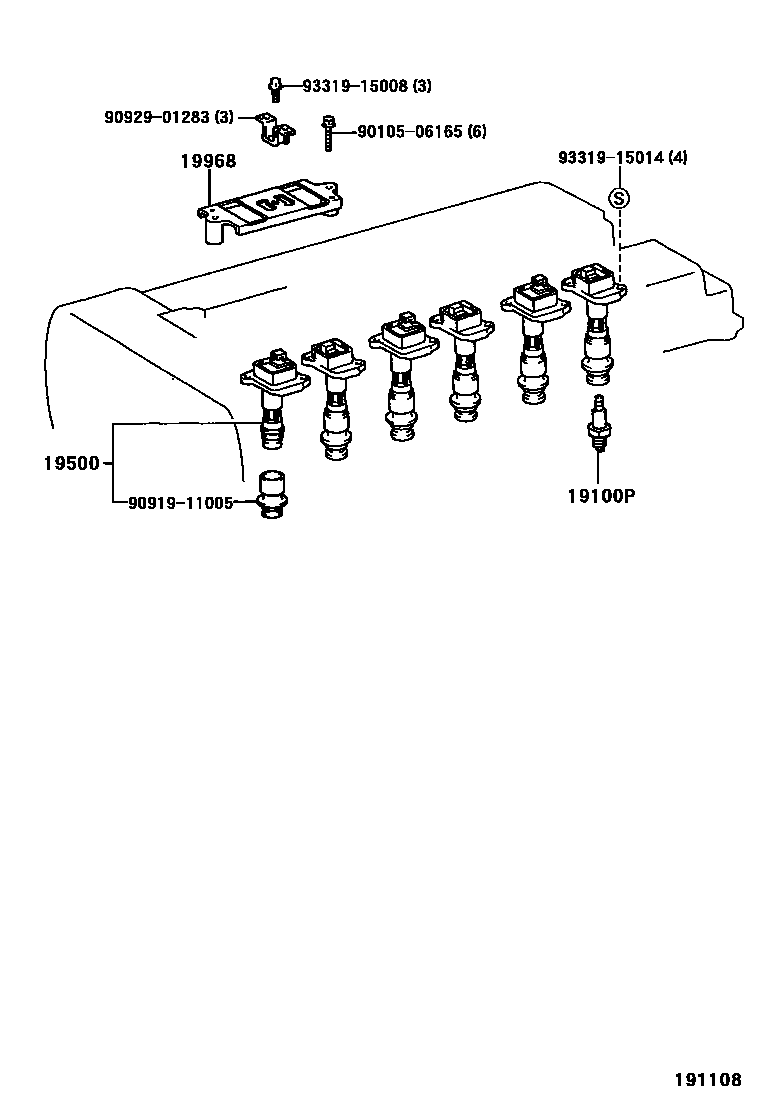

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19100PPLUG, SPARK

main90919-01168i2JZGE..JZZ31199401-199709

sub90919-01217

main90919-01169i2JZGE..JZZ31199401-199709

main90919-01178i1UZFE..UZZ3#199401-199505

sub90919-01210

main90919-01178i1UZFE..UZZ3#199105-199709

sub90919-01210

main90919-01179i1UZFE..UZZ3#199401-199505

main90919-01179i1UZFE..UZZ3#199105-199709

main90919-01180i1JZGTE..JZZ30199105-199608

sub90919-01231

main90919-01181i1UZFE..UZZ3#199105-199608

main90919-01194i1JZGTE..JZZ30199608-200012

main90919-01195i1JZGTE..JZZ30199608-200012

main90919-01196i2JZGE..JZZ31199709-200011

main90919-01197i2JZGE..JZZ31199709-200011

main90919-01219i2JZGE..JZZ31200011-200012

19500COIL ASSY, IGNITION

main90919-02197i1UZFE..UZZ3#199105-199709

main90919-02205i1JZGTE..JZZ30199105-199608

main90919-02216i1JZGTE..JZZ30199608-199709

19968BRACKET, IGNITION COIL

main19968-46010i1JZGTE..JZZ30199105-199608

main19968-50010i1UZFE..UZZ3#199105-199409

main19968-50011i1UZFE..UZZ3#199409-199709

main19969-50010i1UZFE..UZZ3#199105-199409

main19969-50011i1UZFE..UZZ3#199409-199709

9010506165

main90105-06165

9091911005

main90919-11005

9092901283

main90929-01283

9331915008

main93319-15008

9331915014

main93319-15014

8 parts on this diagram · 5 diagrams in section
