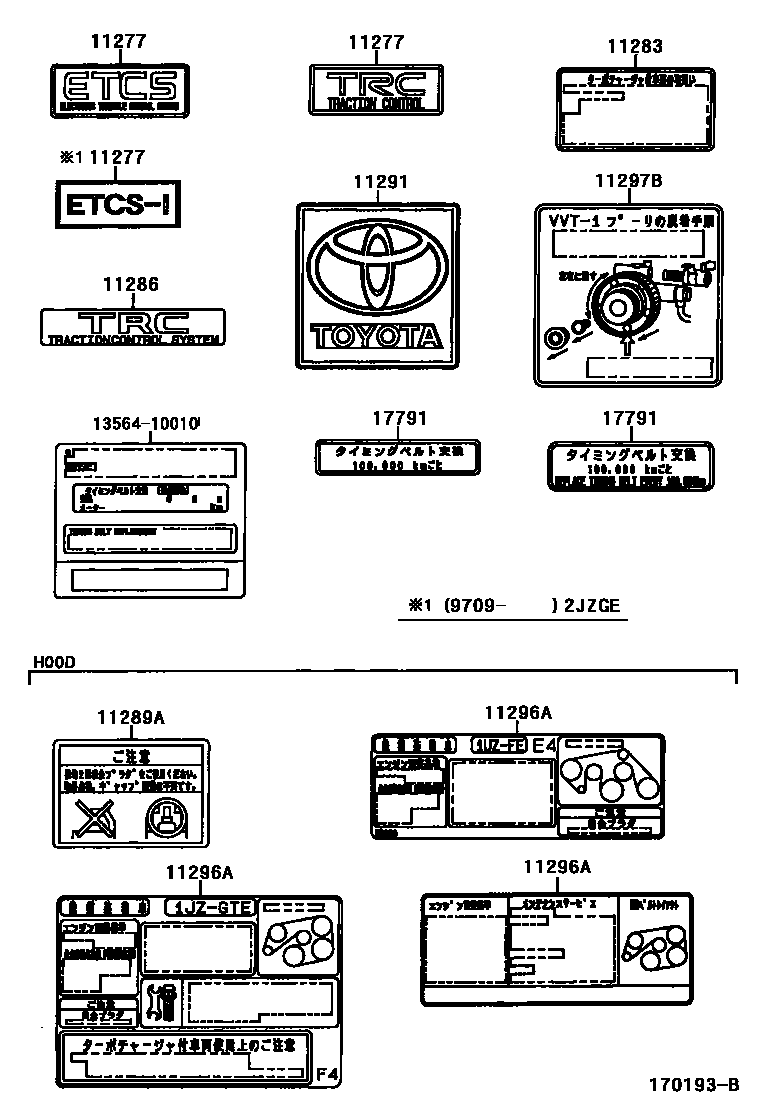

CAUTION PLATE & NAME PLATE (ENGINE)

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-46020i1JZGTE..JZZ30..ATM199105-199205

sub11277-46060

main11277-46060i1JZGTE..JZZ30..ATM199205-199608

sub11277-42020

main11277-46080i1JZGTE..JZZ30199608-200012

main11277-46120i2JZGE..JZZ31199709-200012

11283PLATE, TURBOCHARGER CAUTION

main11294-55010i1JZGTE..JZZ30199608-199710

main11294-55020i1JZGTE..JZZ30199710

11286PLATE, ENGINE SPECIFICATION

main11286-46061i2JZGE..JZZ31199401-199709

main11286-50020i1UZFE..UZZ3#199105-199505

sub11277-42020

11289ALABEL, SPARK PLUG NOTICE

main11289-46020i1JZGTE..JZZ30199608

11291PLATE, ENGINE NAME

main11291-50040i1UZFE..UZZ3#199105-199409

sub11291-50041

main11291-50041i1UZFE..UZZ3#199409-199709

11296ALABEL, ENGINE SERVICE INFORMATION

main11295-46040i2JZGE..JZZ31200011-200012

main11296-46040i1JZGTE..JZZ30199105-199504

sub11296-46200

main11296-46060i2JZGE..JZZ31199401-199504

sub11296-46230

main11296-46080i2JZGE..JZZ31199504-199709

sub11296-46360

main11296-46200i1JZGTE..JZZ30199504-200012

main11296-46300i2JZGE..JZZ31199709-200011

main11296-50090i1UZFE..UZZ3#199105-199505

sub11296-50240

main11296-50240i1UZFE..UZZ3#199505-199608

main11296-50270i1UZFE..UZZ31199608-199709

11297BLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-46011i1JZGTE..JZZ30199608

main11297-46020i2JZGE..JZZ31199709

17791LABEL, MAINTENANCE INFORMATION

main17791-15010i1JZGTE..JZZ30199307

main17791-55010i1JZGTE..JZZ30199203-199307

main17791-74040i2JZGE,1UZFE..JZZ31,UZZ3#199204

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

9 parts on this diagram · 1 diagram in section
