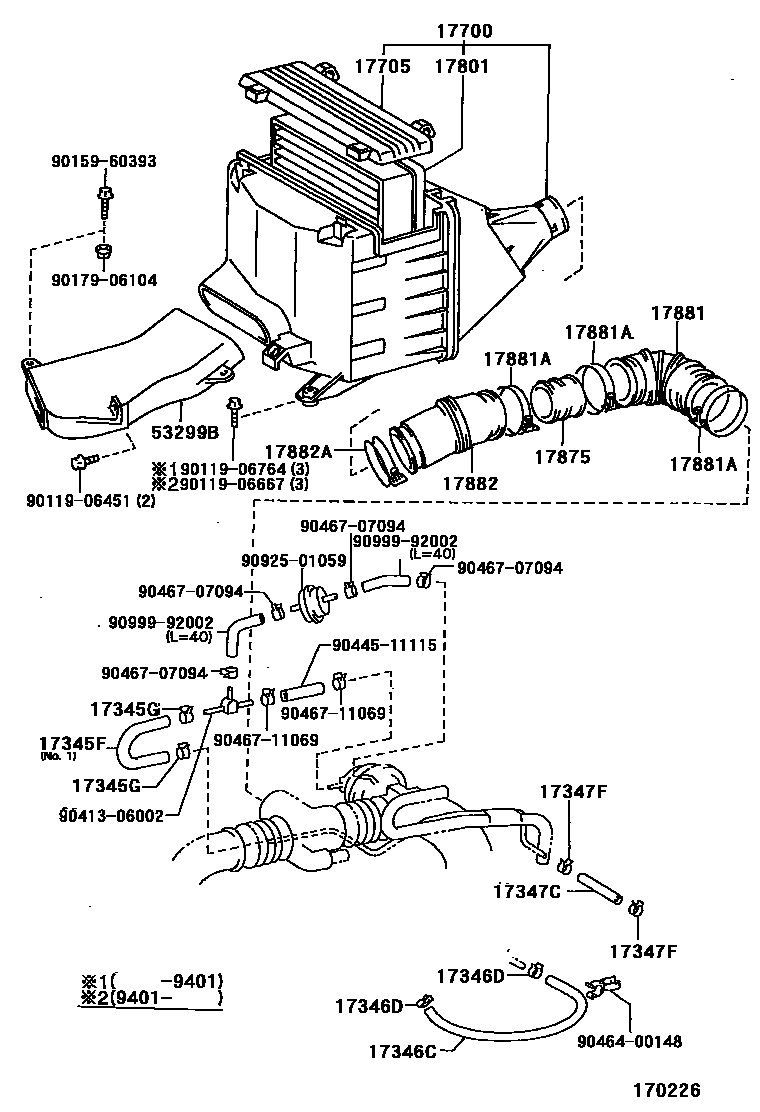

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17345FHOSE, AIR, NO.5

main17345-46010i1JZGTE..JZZ30199105-199608

main17345-46060i1JZGTE..JZZ30199608

main17345-88400i1JZGTE..JZZ30199105-199608

17345GCLAMP OR CLIP(FOR AIR HOSE, NO.5)

main90460-80003i1JZGTE..JZZ30199608

sub90460-80006

main90460-85001i1JZGTE..JZZ30199608

main90467-10106×2i1JZGTE..JZZ30199203-199608

sub96132-51000

main90467-11069×2i1JZGTE..JZZ30199105-199203

17346CHOSE, NO.6

main17346-88400i1JZGTE..JZZ30199105-199608

17346DCLAMP OR CLIP(FOR AIR HOSE NO.6)

main90467-10106×2i1JZGTE..JZZ30199105-199608

sub96132-51000

17347CHOSE, AIR, NO.7

main90445-10061i1JZGTE..JZZ30199105-199608

17347FCLAMP OR CLIP(FOR AIR HOSE)

main90467-10106×2i1JZGTE..JZZ30199105-199608

sub96132-51000

17700CLEANER ASSY, AIR

main17700-46100i1JZGTE..JZZ30199105-199608

main17700-46220i2JZGE..JZZ31199401-199709

main17700-46280i1JZGTE..JZZ30199608

main17700-46370i2JZGE..JZZ31199709-199908

main17700-46371i2JZGE..JZZ31199908

main17700-50040i1UZFE..UZZ3#199105-199505

main17700-50110i1UZFE..UZZ3#199505-199709

17705CAP SUB-ASSY, AIR CLEANER

main17705-46080i1UZFE..UZZ3#199105-199709

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46060i1JZGTE,2JZGE..JZZ3#199105

17875PIPE, INTAKE AIR CONNECTOR

main17875-46030i1JZGTE..JZZ30199105-199608

main17875-50040i1UZFE..UZZ3#199105-199204

main17875-50041i1UZFE..UZZ3#199204-199401

main17875-50090i1UZFE..UZZ3#199401-199709

17881HOSE, AIR CLEANER, NO.1

main17881-46090i1JZGTE..JZZ30199105-199608

main17881-46100i2JZGE..JZZ31199401-199709

main17881-46220i1JZGTE..JZZ30199608

main17881-46260i2JZGE..JZZ31199709

main17881-50010i1UZFE..UZZ3#199105-199505

main17881-50050i1UZFE..UZZ3#199505-199709

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-83004×3i1JZGTE..JZZ30199105-199205

main90460-92001i1UZFE..UZZ3#199105-199709

sub90460-92002

main90460-96001i1UZFE..UZZ3#199105-199709

sub96111-10950

main96111-10830i1JZGTE..JZZ30199608

main96111-10880i2JZGE..JZZ31199401

main96111-10930i2JZGE..JZZ31199401-199709

17882HOSE, AIR CLEANER, NO.2

main17881-46170i2JZGE..JZZ31199401-199709

main17881-46270i2JZGE..JZZ31199709

main17882-46050i1JZGTE..JZZ30199105-199608

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-88005i1JZGTE..JZZ30199105-199205

main90460-96001i1JZGTE..JZZ30199608

sub96111-10950

main96111-10880×2i2JZGE..JZZ31199401

53299BDUCT, COOL AIR INTAKE

main53299-24010iUZZ3#199105-199709

9011906451

main90119-06451

9011906667

main90119-06667

9011906764

main90119-06764

9015960393

main90159-60393

9017906104

main90179-06104

9041306002

main90413-06002

9044511115

main90445-11115

9046400148

main90464-00148

9046707094

main90467-07094

9046711069

main90467-11069

9092501059

main90925-01059

9099992002

main90999-92002

27 parts on this diagram · 7 diagrams in section
