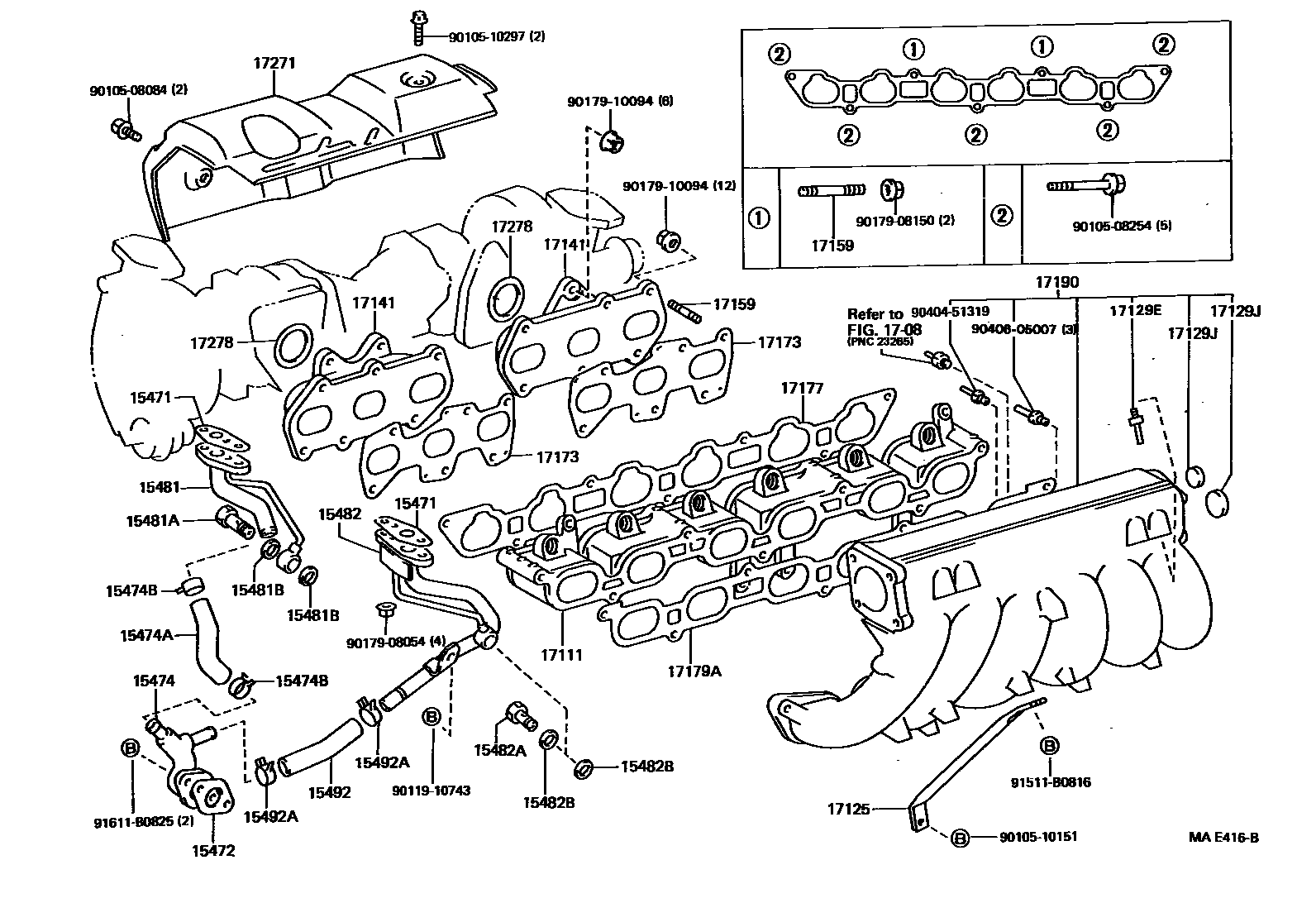

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

15471GASKET, TURBO OIL INLET

main15471-88380i1JZGTE..JZZ30199105-199704

sub15471-88580

main15471-88580i1JZGTE..JZZ30199704

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-88400i1JZGTE..JZZ30199105

15474PIPE, TURBO OIL OUTLET

main15474-88401i1JZGTE..JZZ30199105-199608

main15474-88410i1JZGTE..JZZ30199608

15474AHOSE, TURBO OIL OUTLET

main15491-88401i1JZGTE..JZZ30199105-199608

main15491-88410i1JZGTE..JZZ30199608

15474BCLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)

main90467-26003i1JZGTE..JZZ30199105-199304

sub90467-26007

main90467-26007i1JZGTE..JZZ30199304

15481PIPE, TURBO OIL, NO.1

main15481-88400i1JZGTE..JZZ30199105-199608

main15481-88410i1JZGTE..JZZ30199608

15481ABOLT, UNION, NO.1

main90401-12009i1JZGTE..JZZ30199105

15481BGASKET(FOR UNION BOLT NO.1)

main90430-12110i1JZGTE..JZZ30199105

15482PIPE, TURBO OIL, NO.2

main15482-88401i1JZGTE..JZZ30199105-199608

15482ABOLT, UNION, NO.2

main90401-12009i1JZGTE..JZZ30199105-199608

15482BGASKET(FOR UNION BOLT NO.2)

main90430-12110i1JZGTE..JZZ30199105-199608

15492HOSE, TURBO OIL OUTLET, NO.2

main15492-88401i1JZGTE..JZZ30199105-199608

15492ACLIP(FOR TURBO OIL OUTLET HOSE NO.2)

main90467-26003i1JZGTE..JZZ30199105-199304

sub90467-26007

main90467-26007i1JZGTE..JZZ30199304-199608

1708

17111MANIFOLD, INTAKE

main17101-46030i2JZGE..JZZ31199709

main17111-46030i2JZGE..JZZ31199401-199507

sub17111-46031

sub25601-46011

sub90119-08A59

sub90119-08A90

main17111-46031i2JZGE..JZZ31199507-199709

main17111-50020i1UZFE..UZZ3#199105-199709

main17111-88400i1JZGTE..JZZ30199105-199110

sub17111-88401

sub23801-88403

sub23801-88404

sub23801-88405

main17111-88401i1JZGTE..JZZ30199110-199608

main17111-88410i1JZGTE..JZZ30199608

17125STAY, SURGE TANK, NO.1

main17125-46010i2JZGE..JZZ31199401-199709

main17125-88400i1JZGTE..JZZ30199105-199309

main17125-88402i1JZGTE..JZZ30199309

17129TANK, INTAKE AIR SURGE

main17109-46020i2JZGE..JZZ31199401-199709

sub17109-46050

main17109-46090i2JZGE..JZZ31199709-199908

sub17109-46091

main17109-46091i2JZGE..JZZ31199908

main17109-50020i1UZFE..UZZ3#199105-199401

sub17109-50010

main17109-50030i1UZFE..UZZ3#199401-199709

17129EUNION, NO.3

main90404-51026i1JZGTE..JZZ30199105-199709

main90404-51080i1JZGTE..JZZ30199709

17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)

main96411-41800i1JZGTE..JZZ30199105

main96411-43000i1JZGTE..JZZ30199105

17141MANIFOLD, EXHAUST

main17140-46020i2JZGE..JZZ31199709

main17141-46040i2JZGE..JZZ31199401-199709

main17141-88400i1JZGTE..JZZ30199105-199608

main17141-88410i1JZGTE..JZZ30199608

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08351i1JZGTE..JZZ30199105

main90116-10063i1JZGTE..JZZ30199105-199111

main90116-10169i1JZGTE..JZZ30199111-199608

main90126-10006i1UZFE..UZZ3#199105-199407

main90126-10014i2JZGE..JZZ31199401

main90126-10015i1UZFE..UZZ3#199407-199709

main90126-10015i1JZGTE..JZZ30199608-199909

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-46020i2JZGE..JZZ31199401-199908

main17173-46050i2JZGE..JZZ31199908

sub17173-46051

main17173-50020i1UZFE..UZZ3#199105-199709

sub17173-50021

main17173-88400i1JZGTE..JZZ30199105-199608

main17173-88410i1JZGTE..JZZ30199608

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-50010i1UZFE..UZZ3#199105-199409

sub17171-50011

main17171-50011i1UZFE..UZZ3#199409-199709

main17177-46040i2JZGE..JZZ31199401-199709

main17177-46060i2JZGE..JZZ31199709

main17177-88400i1JZGTE..JZZ30199105-199608

main17177-88410i1JZGTE..JZZ30199608

17179AGASKET, INTAKE MANIFOLD, NO.2

main17179-88400i1JZGTE..JZZ30199105

17190TANK ASSY, INTAKE AIR SURGE

main17190-88400i1JZGTE..JZZ30199105-199608

main17190-88410i1JZGTE..JZZ30199608

17271INSULATOR, TURBO, NO.1

main17271-88400i1JZGTE..JZZ30199105-199608

main17271-88410i1JZGTE..JZZ30199608

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-88400i1JZGTE..JZZ30199105-199608

main17278-88410i1JZGTE..JZZ30199608

9010508084

main90105-08084

9010508254

main90105-08254

9010510151

main90105-10151

9010510297

main90105-10297

9011910743

main90119-10743

9017908054

main90179-08054

9017908150

main90179-08150

9017910094

main90179-10094

9040451319

main90404-51319

9040605007

main90406-05007

91511B0816

main91511-B0816

91611B0825

main91611-B0825

39 parts on this diagram · 7 diagrams in section
