CRANKSHAFT & PISTON

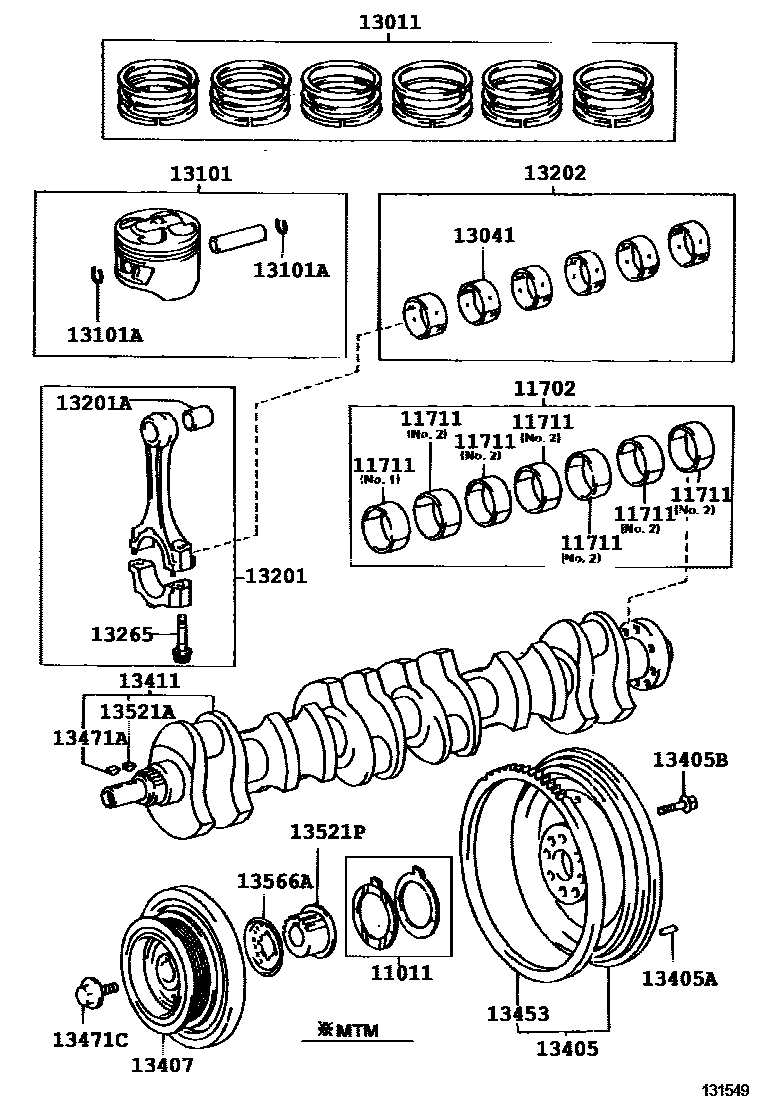

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-46030i199105-199608
main11011-50010i199105-199709
11702BEARING SET, CRANKSHAFT
main11704-46020i199105-199906
sub11704-46030
main11704-46030i199906
11711BEARING, CRANKSHAFT
main11071-46010-01i199105-199906
sub11071-46020
main11071-46010-02i199105-199906
sub11071-46020
main11071-46010-03i199105-199906
sub11071-46020
main11071-46010-04i199105-199906
sub11071-46020
main11071-46010-05i199105-199906
sub11071-46020
main11071-46020-01i199906-199909
main11071-46020-02i199906
main11071-46020-03i199906
main11071-46020-04i199906
main11071-46020-05i199906
main11071-46020-06i199909
main11071-50010-01i199105-199709
sub11071-50010
sub11071-50031
main11071-50010-02i199105-199709
sub11071-50010
sub11071-50031
main11071-50010-03i199105-199709
sub11071-50010
sub11071-50031
main11071-50010-04i199105-199709
sub11071-50010
sub11071-50031
main11071-50010-05i199105-199709
sub11071-50010
sub11071-50031
main11071-50010-A1i199707-199709
sub11071-50010
sub11071-50031
main11071-50010-A2i199707-199709
sub11071-50010
sub11071-50031
main11071-50010-B2i199707-199709
sub11071-50010
sub11071-50031
main11071-50010-B3i199707-199709
sub11071-50010
sub11071-50031
main11071-50010-C3i199707-199709
sub11071-50010
sub11071-50031
main11071-50010-C4i199707-199709
sub11071-50010
sub11071-50031
main11071-50010-D4i199707-199709
sub11071-50010
sub11071-50031
main11071-50010-D5i199707-199709
sub11071-50010
sub11071-50031
main11071-50010-E5i199707-199709
sub11071-50010
sub11071-50031
main11701-46010-01i199105-199906
sub11701-46020
main11701-46010-02i199105-199906
sub11701-46020
main11701-46010-03i199105-199906
sub11701-46020
main11701-46010-04i199105-199906
sub11701-46020
main11701-46010-05i199105-199906
sub11701-46020
main11701-46020-01i199906-199909
main11701-46020-02i199906
main11701-46020-03i199906
main11701-46020-04i199906
main11701-46020-05i199906
main11701-46020-06i199909
main11701-50010-01i199105-199705
sub11701-50020
main11701-50010-02i199105-199705
sub11701-50020
main11701-50010-03i199105-199705
sub11701-50020
main11701-50010-04i199105-199705
sub11701-50020
main11701-50010-05i199105-199705
sub11701-50020
main11701-50010-06i199412-199705
sub11701-50020
main11701-50010-07i199412-199705
sub11701-50020
main11701-50020-01i199705-199709
sub11701-50020
sub11701-50040
main11701-50020-02i199705-199709
sub11701-50020
sub11701-50040
main11701-50020-03i199705-199709
sub11701-50020
sub11701-50040
main11701-50020-04i199705-199709
sub11701-50020
sub11701-50040
main11701-50020-05i199705-199709
sub11701-50020
sub11701-50040
main11701-50020-06i199705-199709
sub11701-50020
sub11701-50040
main11701-50020-07i199705-199709
sub11701-50020
sub11701-50040
main11701-50020-C3i199707-199709
sub11701-50020
sub11701-50040
main11701-50020-C4i199707-199709
sub11701-50020
sub11701-50040
main11701-50020-D4i199707-199709
sub11701-50020
sub11701-50040
main11701-50020-D5i199707-199709
sub11701-50020
sub11701-50040
main11701-50020-E5i199707-199709
sub11701-50020
sub11701-50040
main11701-50020-E6i199707-199709
sub11701-50020
sub11701-50040
main11701-50020-F6i199707-199709
sub11701-50020
sub11701-50040
main11701-50020-F7i199707-199709
sub11701-50020
sub11701-50040
main11701-50020-G7i199707-199709
sub11701-50020
sub11701-50040
13011RING SET, PISTON
main13011-46040i199401-199707
sub13011-46041
main13011-46041i199707
main13011-50040i199105-199505
main13011-50080i199505-199601
sub13011-50100
sub13011-50110
main13011-50110i199601-199709
main13011-88400i199105-199608
sub13011-88410
main13011-88410i199608
13041BEARING, CONNECTING ROD
main13041-46010-01i199105-199503
MARK 1
sub13041-46011
main13041-46010-02i199105-199503
MARK 2
sub13041-46011
main13041-46010-03i199105-199503
MARK 3
sub13041-46011
main13041-46010-04i199105-199503
MARK 4
sub13041-46011
main13041-46010-05i199105-199503
MARK 5
sub13041-46011
main13041-46011-01i199503-199707
MARK 1
sub13041-46012
main13041-46011-02i199503-199707
MARK 2
sub13041-46012
main13041-46011-03i199503-199707
MARK 3
sub13041-46012
main13041-46011-04i199503-199707
MARK 4
sub13041-46012
main13041-46011-05i199503-199707
MARK 5
sub13041-46012
main13041-46012-01i199707-199906
MARK 1
sub13041-46013
main13041-46012-02i199707-199906
MARK 2
sub13041-46013
main13041-46012-03i199707-199906
MARK 3
sub13041-46013
main13041-46012-04i199707-199906
MARK 4
sub13041-46013
main13041-46012-05i199707-199906
MARK 5
sub13041-46013
main13041-46013-01i199906
MARK 1
main13041-46013-02i199906
MARK 2
main13041-46013-03i199906
MARK 3
main13041-46013-04i199906
MARK 4
main13041-46013-05i199906
MARK 5
main13041-50020-02i199105-199709
MARK 2
sub13041-50050
main13041-50020-03i199105-199709
MARK 3
sub13041-50050
main13041-50020-04i199105-199709
MARK 4
sub13041-50050
main13041-50020-05i199105-199709
MARK 5
sub13041-50050
main13041-50020-06i199105-199709
MARK 6
sub13041-50050
main13041-50020-07i199105-199709
MARK 7
sub13041-50050
13101PISTON SUB-ASSY, W/PIN
main13101-46030i199401-199709
sub13101-46031
main13101-46080i199709-199908
sub13101-46081
main13101-46081i199908
main13101-50020-01i199105-199505
main13101-50020-02i199105-199505
main13101-50020-03i199105-199505
main13101-50030-01i199505-199709
main13101-50030-02i199505-199709
main13101-50030-03i199505-199709
main13101-88400i199105-199608
main13101-88410i199608
main13301-50010-01i199105-199505
main13301-50010-02i199105-199505
main13301-50010-03i199105-199505
main13301-50020-01i199505-199709
main13301-50020-02i199505-199709
main13301-50020-03i199505-199709
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-25004i199105-199709
sub90520-22025
13201ROD SUB-ASSY, CONNECTING
main13201-46030i199105
main13201-46040i199401-199709
main13201-46060i199709-199907
sub13201-46061
main13201-46061i199907
main13201-50020i199105-199408
main13201-50030i199408-199709
sub13201-50031
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73119i199105-199709
main90999-73128i199105
13202BEARING SET, CONNECTING ROD
main13204-46020i199105-199503
sub13204-46021
main13204-46021i199503-199707
sub13204-46022
main13204-46022i199707-199909
sub13204-46023
main13204-46023i199909
13265BOLT, CONNECTING ROD
main13265-46020i199105
main13265-50020i199105-199709
13405FLYWHEEL SUB-ASSY
main13405-46030i199105
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i199105
13405BBOLT, FLYWHEEL SETTING
main90910-02103i199105
13407DAMPER SUB-ASSY, CRANKSHAFT
main13407-46010i199105
main13407-46020i199401
main13407-50030i199105-199709
main13407-50050i199105-199608
13411CRANKSHAFT
main13401-46010i199105-199907
sub13401-46011
main13401-46011i199907-200008
sub13401-46012
main13401-46012i200008
main13401-46020i199401-199907
sub13401-46021
main13401-46021i199907-200008
sub13401-46022
main13401-46022i200008
main13411-50020i199105-199410
main13411-50021i199410-199505
main13411-50030i199505-199709
13453GEAR, FLYWHEEL RING
main13453-20010i199105
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05005i199203-199709
main95161-20519i199105-199204
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90109-18003i199105-199709
main90119-18002i199105
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05005i199204
main95161-20519i199105-199204
13521PPULLEY, CRANKSHAFT TIMING
main13052-46010i199105-199608
main13521-46020i199401-199709
main13521-46040i199608-199709
main13521-50020i199105-199412
sub13521-50021
main13521-50021i199412-199705
sub13521-50022
main13521-50022i199705-199709
13566AGUIDE, TIMING BELT
main13566-46010i199105
