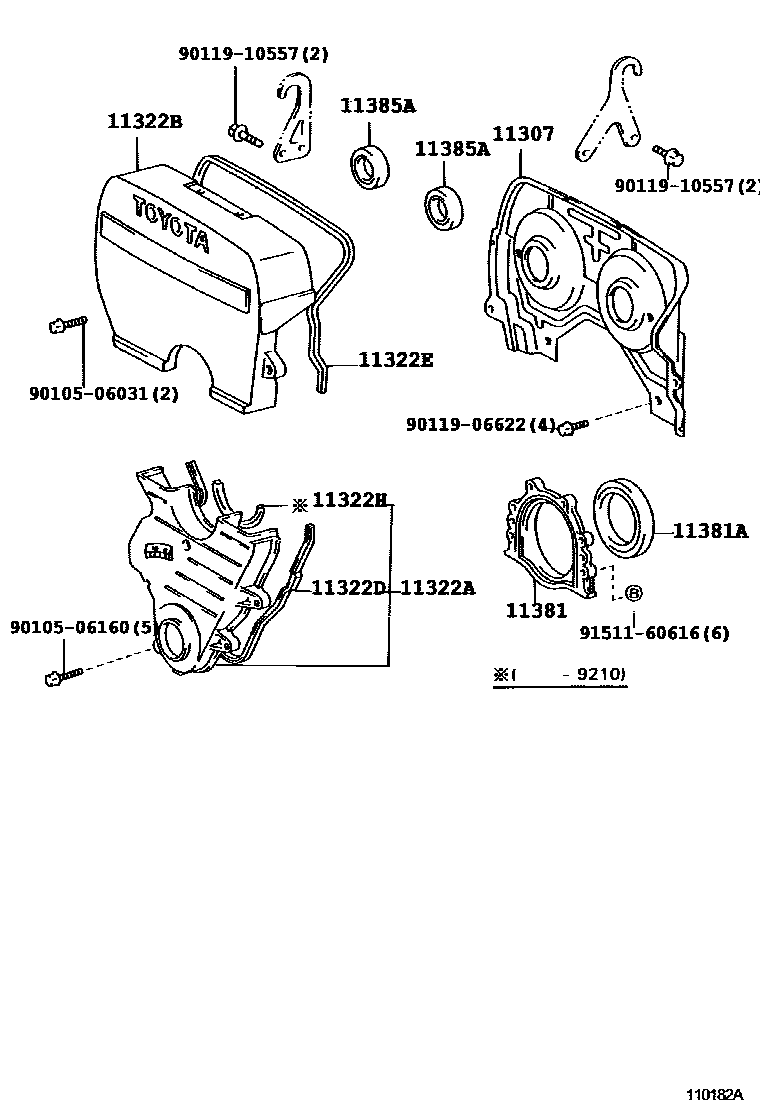

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-46020i2JZGE..JZZ31199709

main11304-46091i2JZGE..JZZ31199401-199709

main11304-88400i1JZGTE..JZZ30199105-199608

main11307-50011i1UZFE..UZZ30,31199105-199709

main11307-50020i1UZFE..UZZ32199105-199608

11322ACOVER, TIMING BELT, NO.1

main11302-46020i1JZGTE..JZZ30199105-199210

sub11302-46021

main11302-46021i1JZGTE..JZZ30199210

main11302-46031i2JZGE..JZZ31199401

main11302-50020i1UZFE..UZZ30,31199105-199709

main11302-50030i1UZFE..UZZ32199105-199608

11322BCOVER, TIMING BELT, NO.2

main11322-88400i1JZGTE..JZZ30199105-199306

sub11322-88401

main11322-88401i1JZGTE..JZZ30199306-199608

11322DGASKET, TIMING BELT COVER, NO.1

main11328-46020i1JZGTE..JZZ30199105-199210

main11328-46021i1JZGTE..JZZ30199210

main11328-46041i2JZGE..JZZ31199401

main11328-50020i1UZFE..UZZ30,31199105-199709

main11328-50030i1UZFE..UZZ32199105-199608

11322EGASKET, TIMING BELT COVER, NO.2

main11329-46011i2JZGE..JZZ31199401-199709

main11329-46040i2JZGE..JZZ31199709

main11329-50010i1UZFE..UZZ30,31199105-199709

main11329-50020i1UZFE..UZZ32199105-199608

main11329-88400i1JZGTE..JZZ30199105-199608

main11329-88410i1JZGTE..JZZ30199608

11322HGASKET, TIMING BELT COVER, NO.3

main11319-46010i1JZGTE..JZZ30199105-199210

main11319-50010i1UZFE..UZZ30,31199105-199709

main11319-50020i1UZFE..UZZ32199105-199608

11381RETAINER, ENGINE REAR OIL SEAL

main11381-46010i1JZGTE,2JZGE..JZZ3#199105

main11381-50020i1UZFE..UZZ3#199105-199512

main11381-50021i1UZFE..UZZ3#199512-199709

11381ASEAL, ENGINE REAR OIL

main90311-90006i1JZGTE,2JZGE..JZZ3#199105

main90311-95006i1UZFE..UZZ3#199105-199401

sub90311-95007

main90311-95007i1UZFE..UZZ3#199401-199709

sub90311-95012

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38041i1JZGTE..JZZ30199105-199608

main90311-38056i1JZGTE..JZZ30199608

main90311-40014i2JZGE..JZZ31199401-199509

sub90311-40020

main90311-40020i1JZGTE..JZZ30199608

main90311-40020i2JZGE..JZZ31199509

9010506031

main90105-06031

9010506160

main90105-06160

9011906622

main90119-06622

9011910557

main90119-10557

9151160616

main91511-60616

14 parts on this diagram · 6 diagrams in section
