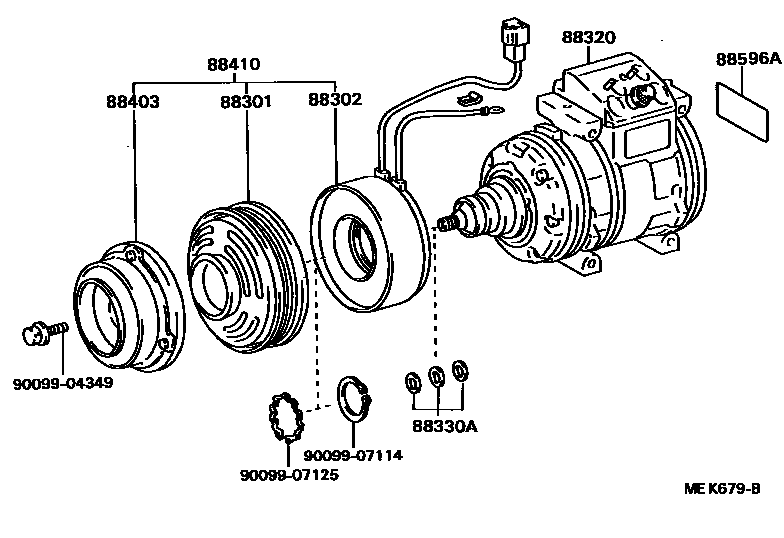

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12160iGZ20,MZ2#198801-199104

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14111iGZ20,MZ2#198801-198901

sub88411-14120

main88411-14120iGZ20,MZ2#198901-199104

88320COMPRESSOR ASSY, COOLER

main88320-14521iMZ2#198801-199008

sub88320-14523

main88320-14523iMZ2#199008-199104

sub88320-22H91

main88320-14531iGZ20198801-199008

sub88320-14532

main88320-14532iGZ20199008-199104

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMZ2#198801-199104

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16010iMZ2#198801-198810

sub88403-16011

main88403-16011iGZ20,MZ2#198801-199104

88410CLUTCH ASSY, MAGNET

main88410-14181iGZ20,MZ2#198801-198901

sub88410-14210

main88410-14210iGZ20,MZ2#198901-199104

88596APLATE, CAUTION

main88356-12010iMZ2#198801-199104

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125
