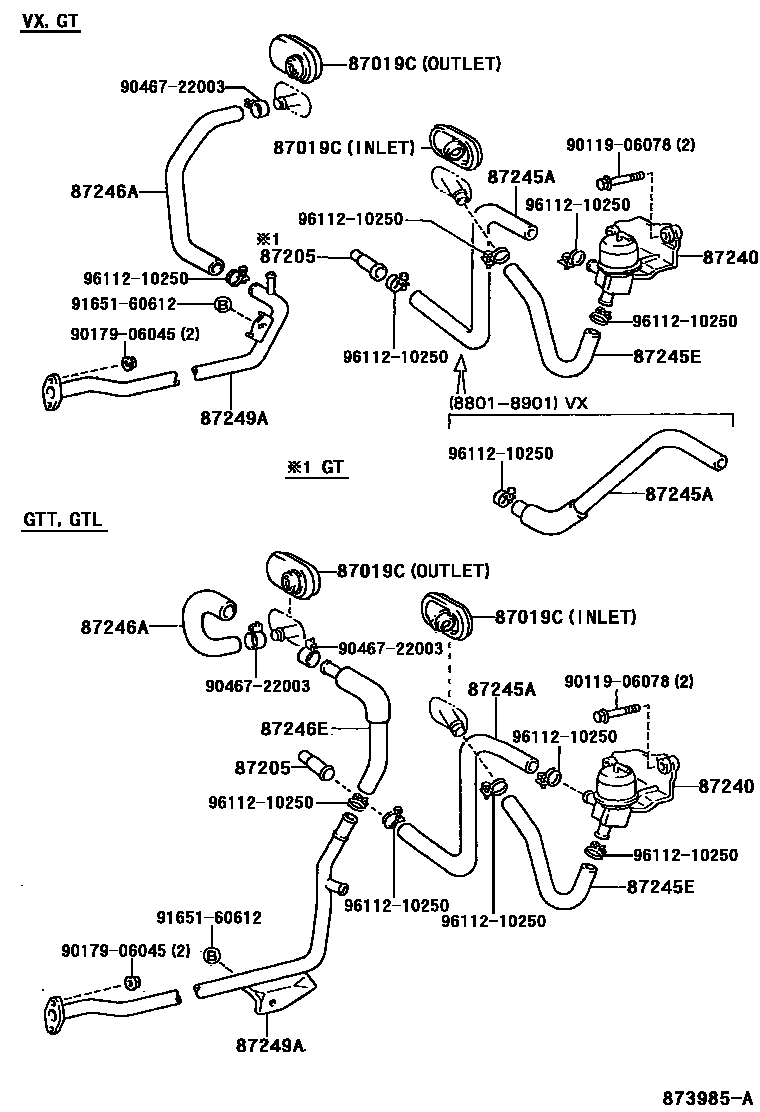

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01272iGZ20,MZ2#198801-199104

INLET

main90480-01337iGZ20,MZ2#198801-199104

OUTLET

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main90406-17001iGZ20..TWC,TWT198801-199008

sub90406-17012

main90406-17012iGZ20..TWC199008-199104

87240VALVE ASSY, HEATER WATER

main87240-24020iGZ20,MZ2#198801-199104

87245AHOSE, HEATER WATER, INLET A

main87245-24140iGZ20..EFI198801-198901

main87245-24150iGZ20..HTWC,TWC,TWT198801-199104

main87245-24180iMZ2#198801-199104

87245EHOSE, HEATER WATER, INLET E

main87245-24130iGZ20,MZ2#198801-199104

87246AHOSE, HEATER WATER, OUTLET A

main87245-24160iGZ20..GT,VX198801-199104

main87245-24170iGZ20..TWT198801-199104

main87245-24190iMZ2#198801-199104

87246EHOSE, HEATER WATER, OUTLET E

main87209-24050iGZ20..TWT198801-199104

87249APIPE, HEATER WATER OUTLET, A

main87208-22011iGZ20..EFI,TWC198801-198807

main87208-22012iGZ20..EFI,TWC198807-199007

sub87208-22270

main87208-22182iGZ20..HTWC198901-199007

sub87208-22260

main87208-22260iGZ20..HTWC199007-199104

sub87208-22261

main87208-22270iGZ20..TWC199007-199104

sub87208-22271

main87208-24010iGZ20..TWT198801-199006

sub87208-24020

main87208-24020iGZ20..TWT199006-199104

sub87208-24021

main87208-30040iGZ20..EFI198809-198901

9011906078

main90119-06078

9017906045

main90179-06045

9046722003

main90467-22003

9165160612

main91651-60612

9611210250

main96112-10250

13 parts on this diagram · 2 diagrams in section
