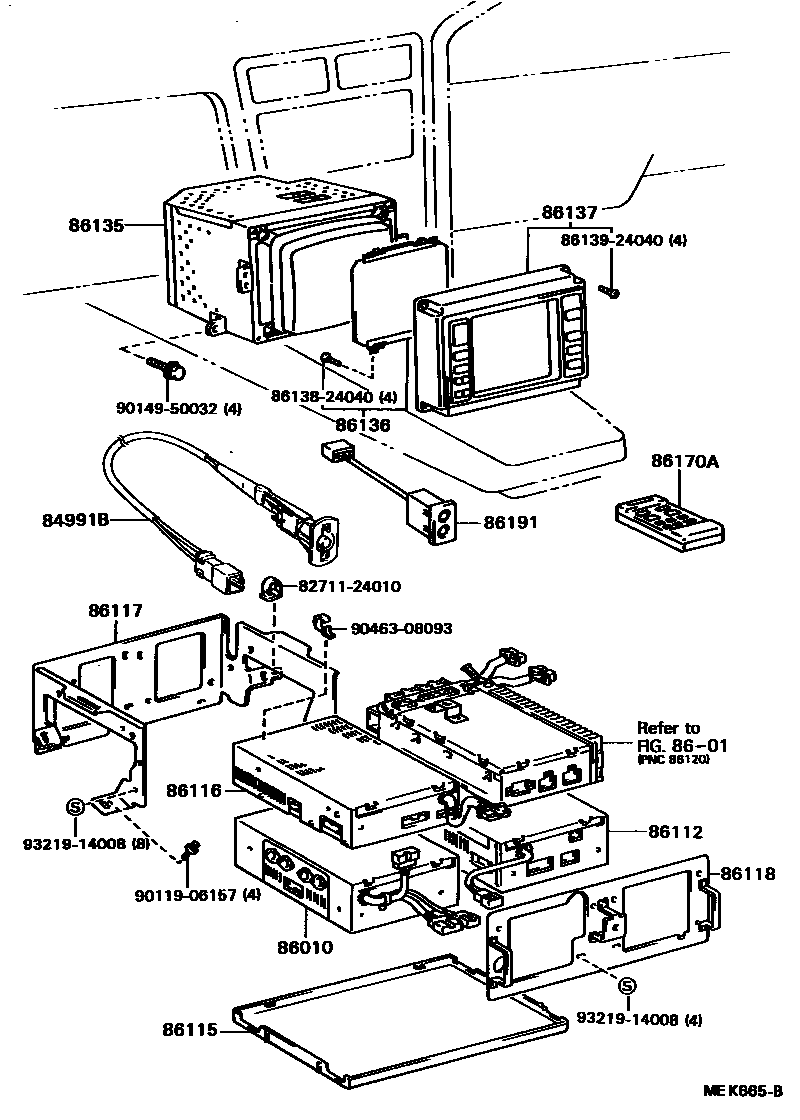

NAVIGATION & FRONT MONITOR DISPLAY

84991BSWITCH, VIDEO

main84991-24010iMZ2#..GTL198801-199104

8601

86010TUNER ASSY, TELEVISION

main86010-24040iMZ2#..GTL198801-199104

86112COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY)

main86112-24050iMZ2#..GTL198801-198812

main86112-24060iMZ2#..GTL198901-199104

sub86112-24070

86115TRAY, MULTI-DISPLAY COMPUTER

main86115-24020iMZ2#..GTL198801-199104

86116CONTROLLER, VIDEO

main86116-24020iMZ2#..GTL198801-199104

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-24040iMZ2#..GTL198801-198901

main86117-24050iMZ2#..GTL198901-199104

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-24040iMZ2#..GTL198801-198901

86135MULTI-DISPLAY (CRT DISPLAY)

main86135-24030iMZ2#..GTL198801-199104

86136FILTER, MULTI-DISPLAY

main86136-24030iMZ2#..GTL198801-199104

86137PANEL, MULTI-DISPLAY

main86137-24040iMZ2#..GTL198801-199104

86170ASWITCH & VOLUME ASSY

main86170-24040iMZ2#..GTL198801-199104

86191TERMINAL, VIDEO(VIDEO ADAPTER)

main86191-24010iMZ2#..GTL198801-199104

8271124010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24010

8613824040

main86138-24040

8613924040

main86139-24040

9011906157

main90119-06157

9014950032

main90149-50032

9046308093

main90463-08093

9321914008

main93219-14008

20 parts on this diagram · 1 diagram in section
