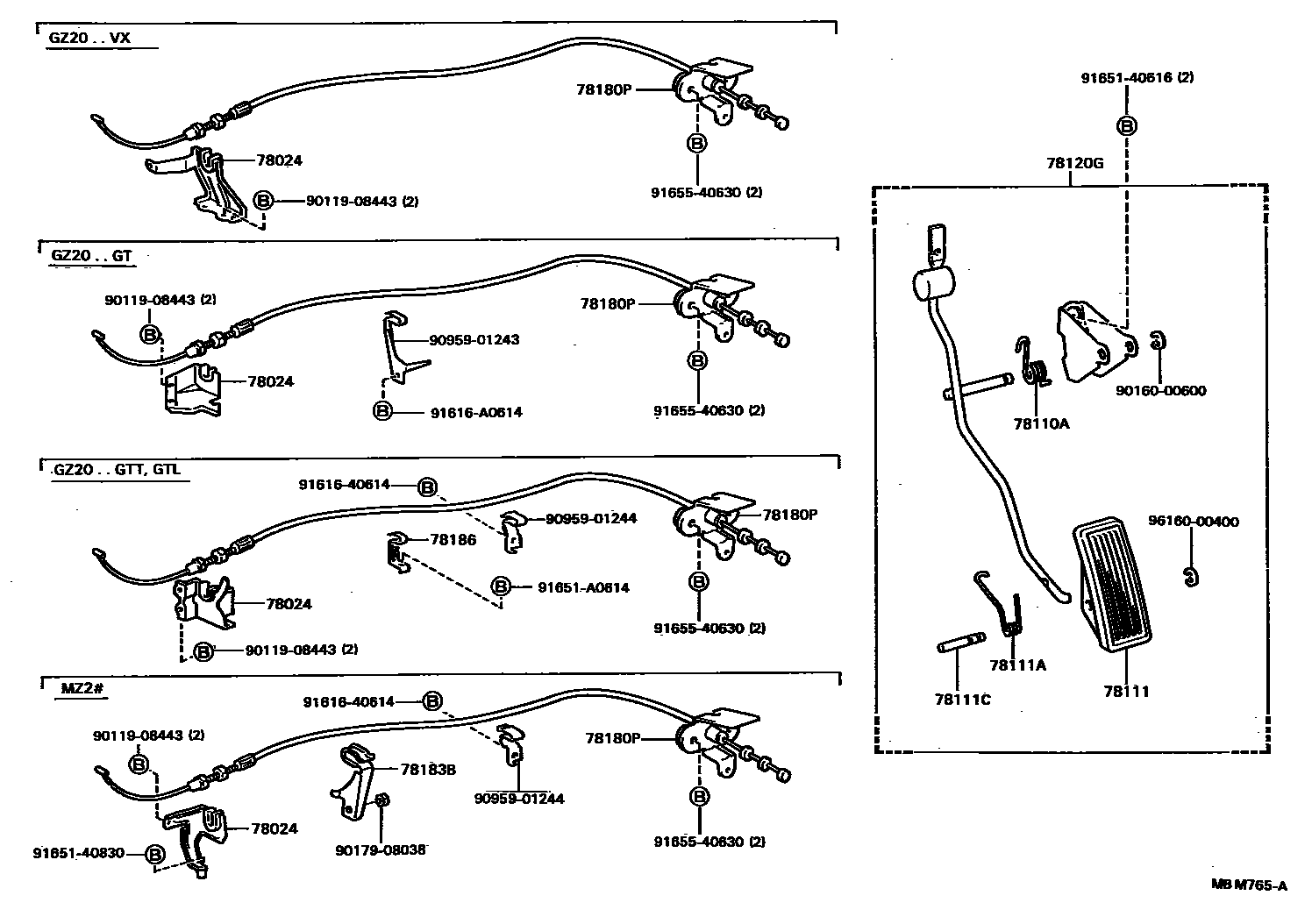

ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-14070iMZ2#..5F198801-199104

main78024-14080iMZ2#..4FC198801-199104

main78024-22070iGZ20..TWT198801-198808

sub78024-22071

main78024-22071iGZ20..TWT198808-199104

main78024-22110iGZ20..HTWC198901-199104

sub78024-30100

main78024-30020iGZ20..EFI198801-198901

main78024-88300iGZ20..TWC198801-198901

main78024-88301iGZ20..TWC198901-199104

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iGZ20,MZ2#..4FC198801-199104

main90508-26054iGZ20..5F..(GT,VX)198801-199104

main90508-26075iGZ20,MZ2#..5F..TWT198801-199104

78111PEDAL, ACCELERATOR

main78111-12100iGZ20,MZ2#198801-199104

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iGZ20,MZ2#198801-199104

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGZ20,MZ2#198801-199104

78120GROD ASSY, ACCELERATOR PEDAL

main78120-14430iGZ20..5F..(EFI,TWC)198801-198803

sub78120-14431

main78120-14431iGZ20..5F..(GT,VX)198803-199104

main78120-14470iGZ20,MZ2#..4FC198801-198803

sub78120-14471

main78120-14471iGZ20,MZ2#..4FC198803-199104

main78120-14490iGZ20,MZ2#..5F..TWT198801-198803

sub78120-14491

main78120-14491iGZ20,MZ2#..5F..TWT198803-199104

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-14780iMZ2#..5F198801-199104

main78180-14790iMZ2#..4FC198801-199104

main78180-14800iGZ20..HTWC198901-199104

main78180-14801iGZ20..TWC198801-198901

main78180-14860iGZ20..TWC198901-199104

main78180-14880iGZ20..TWT198801-199104

main78180-24011iGZ20..EFI198801-198901

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-14020iMZ2#198801-199104

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-22030iGZ20..TWT198801-199104

9011908443

main90119-08443

9016000600

main90160-00600

9017908038

main90179-08038

9095901243

main90959-01243

9095901244

main90959-01244

9161640614

main91616-40614

91616A0614

main91616-A0614

9165140616

main91651-40616

9165140830

main91651-40830

91651A0614

main91651-A0614

9165540630

main91655-40630

9616000400

main96160-00400

21 parts on this diagram · 2 diagrams in section
