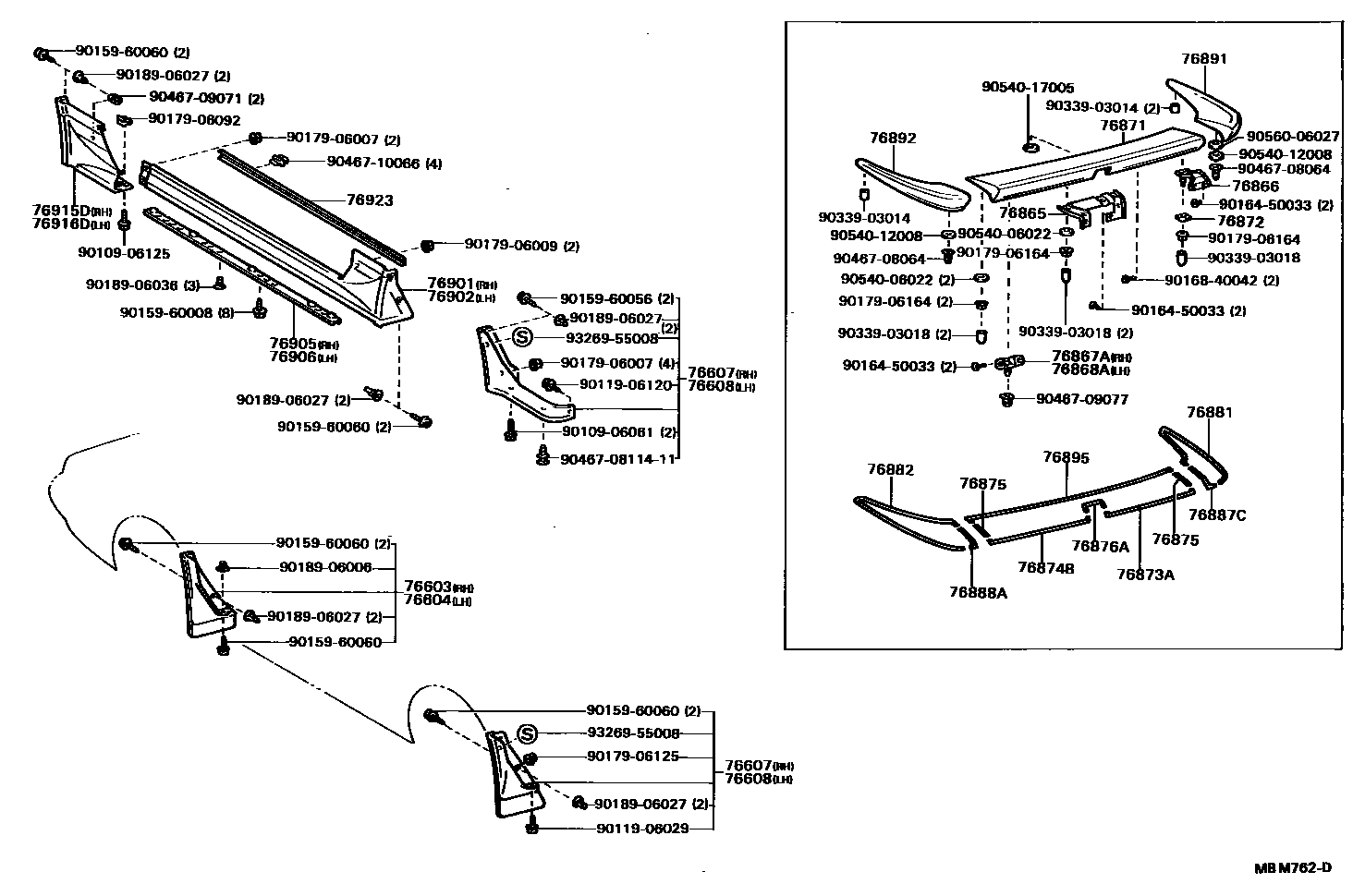

MUDGUARD & SPOILER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29085-02iGZ20..TWC,TWT198801-198901

RED MICA,3H1

sub76603-29085

main76603-29085-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

sub76603-29085

main76603-29085-07iMZ20..GT;GZ20..HTWC,TWC,TWT198801-199004

GREEN M,6J7

sub76603-29085

main76603-29085-10iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

sub76603-29085

main76603-29085-12iGZ20198901-199004

RED MICA,3H4

sub76603-29085

main76603-29085-15iMZ2#..GTL;MZ20..AEC198801-199104

LIGHT BEIGE M,24H

sub76603-29085

main76603-29085-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

sub76603-29085

main76603-29085-23iGZ20;MZ20..GT198801-198901

GRAY M,168

sub76603-29085

main76603-29085-28iGZ20,MZ2#..HTWC,TWC,TWT198801-199004

SUPER WHITE 3,043

sub76603-29085

main76603-29085-33iGZ20..TWT198801-198901

GRAY M,26A

sub76603-29085

main76603-29085-38iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

sub76603-29085

main76603-29085-43iMZ20..CP..GT;GZ20..HTWC,TWC,TWT198801-199004

WARM GRAY M,24G

sub76603-29085

main76603-29085-53iGZ20,MZ20..CP..(GT,VX)198901-199104

GRAY MICA M,180 ,20M

sub76603-29085

main76603-29085-53iGZ20..TWT198901-199104

GRAY MICA M,180

sub76603-29085

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29085-02iGZ20198801-198901

RED MICA,3H1

sub76604-29085

main76604-29085-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

sub76604-29085

main76604-29085-07iMZ20..GT;GZ20..HTWC,TWC,TWT198801-199004

GREEN M,6J7

sub76604-29085

main76604-29085-10iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

sub76604-29085

main76604-29085-12iGZ20198901-199004

RED MICA,3H4

sub76604-29085

main76604-29085-15iMZ2#..GTL;MZ20..AEC198801-199104

LIGHT BEIGE M,24H

sub76604-29085

main76604-29085-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

sub76604-29085

main76604-29085-23iGZ20;MZ20..GT198801-198901

GRAY M,168

sub76604-29085

main76604-29085-28iGZ20,MZ2#..HTWC,TWC,TWT198801-199004

SUPER WHITE 3,043

sub76604-29085

main76604-29085-33iGZ20..TWT198801-198901

GRAY M,26A

sub76604-29085

main76604-29085-38iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

sub76604-29085

main76604-29085-43iGZ20;MZ20..GT198801-199004

WARM GRAY M,24G

sub76604-29085

main76604-29085-53iMZ20..GT;GZ20..TWC,TWT198901-199104

GRAY MICA M,180 ,20M

sub76604-29085

main76604-29085-53iGZ20..HTWC198901-199104

GRAY MICA M,180

sub76604-29085

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-29105-02iGZ20..TWC,TWT198801-198901

RED MICA,3H1

sub76607-29105

main76607-29105-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

sub76607-29105

main76607-29105-07iMZ20..GT;GZ20..HTWC,TWC,TWT198801-199004

GREEN M,6J7

sub76607-29105

main76607-29105-10iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

sub76607-29105

main76607-29105-12iGZ20198901-199004

RED MICA,3H4

sub76607-29105

main76607-29105-15iMZ2#..GTL;MZ20..AEC198801-199104

LIGHT BEIGE M,24H

sub76607-29105

main76607-29105-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

sub76607-29105

main76607-29105-23iGZ20;MZ20..GT198801-198901

GRAY M,168

sub76607-29105

main76607-29105-28iGZ20,MZ2#198801-199004

SUPER WHITE 3,043

sub76607-29105

main76607-29105-33iGZ20..TWT198801-198901

GRAY M,26A

sub76607-29105

main76607-29105-38iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

sub76607-29105

main76607-29105-43iGZ20;MZ20..GT198801-199004

WARM GRAY M,24G

sub76607-29105

main76607-29105-53iGZ20,MZ20..CP..(GT,VX)198901-199104

GRAY MICA M,180

sub76607-29105

main76607-29105-53iGZ20..TWT198901-199104

GRAY MICA M,180 ,20M

sub76607-29105

main76607-29115-02iGZ20198801-198901

sub76607-29115

main76607-29115-04iGZ20;MZ20..GT199004-199104

sub76607-29115

main76607-29115-07iGZ20;MZ20..GT198801-199004

sub76607-29115

main76607-29115-10iGZ20;MZ20..GT199004-199104

sub76607-29115

main76607-29115-12iGZ20198901-199004

sub76607-29115

main76607-29115-15iMZ2#..GTL;MZ20..AEC198801-199104

sub76607-29115

main76607-29115-17iGZ20,MZ2#199004-199104

sub76607-29115

main76607-29115-23iGZ20;MZ20..GT198801-198901

sub76607-29115

main76607-29115-28iGZ20,MZ2#..HTWC,TWC,TWT198801-199004

sub76607-29115

main76607-29115-33iGZ20..TWT198801-198901

sub76607-29115

main76607-29115-38iGZ20,MZ2#199004-199104

sub76607-29115

main76607-29115-43iGZ20;MZ20..GT198801-199004

sub76607-29115

main76607-29115-53iGZ20..TWT198901-199104

sub76607-29115

main76607-29115-53iGZ20,MZ20..CP..(GT,VX)198901-199104

sub76607-29115

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-29105-02iGZ20..TWC,TWT198801-198901

RED MICA,3H1

sub76608-29105

main76608-29105-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

sub76608-29105

main76608-29105-07iMZ20..GT;GZ20..HTWC,TWC,TWT198801-199004

GREEN M,6J7

sub76608-29105

main76608-29105-10iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

sub76608-29105

main76608-29105-12iGZ20198901-199004

RED MICA,3H4

sub76608-29105

main76608-29105-15iMZ2#..GTL;MZ20..AEC198801-199104

LIGHT BEIGE M,24H

sub76608-29105

main76608-29105-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

sub76608-29105

main76608-29105-23iGZ20;MZ20..GT198801-198901

GRAY M,168

sub76608-29105

main76608-29105-28iGZ20,MZ2#..HTWC,TWC,TWT198801-199004

SUPER WHITE 3,043

sub76608-29105

main76608-29105-33iGZ20..TWT198801-198901

GRAY M,26A

sub76608-29105

main76608-29105-38iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

sub76608-29105

main76608-29105-43iMZ20..CP..GT;GZ20..HTWC,TWC,TWT198801-199004

WARM GRAY M,24G

sub76608-29105

main76608-29105-53iGZ20..HTWC198901-199104

GRAY MICA M,180 ,20M

sub76608-29105

main76608-29105-53iGZ20..TWT198901-199104

GRAY MICA M,180

sub76608-29105

main76608-29115-02iGZ20198801-198901

sub76608-29115

main76608-29115-04iGZ20;MZ20..GT199004-199104

sub76608-29115

main76608-29115-07iMZ20..GT;GZ20..HTWC,TWC,TWT198801-199004

sub76608-29115

main76608-29115-10iGZ20;MZ20..GT199004-199104

sub76608-29115

main76608-29115-12iGZ20198901-199004

sub76608-29115

main76608-29115-15iMZ2#..GTL;MZ20..AEC198801-199104

sub76608-29115

main76608-29115-17iGZ20,MZ2#199004-199104

sub76608-29115

main76608-29115-23iGZ20;MZ20..GT198801-198901

sub76608-29115

main76608-29115-28iGZ20,MZ2#..HTWC,TWC,TWT198801-199004

sub76608-29115

main76608-29115-33iGZ20..TWT198801-198901

sub76608-29115

main76608-29115-38iGZ20,MZ2#199004-199104

sub76608-29115

main76608-29115-43iMZ20..CP..GT;GZ20..HTWC,TWC,TWT198801-199004

sub76608-29115

main76608-29115-53iGZ20..TWT198901-199104

sub76608-29115

main76608-29115-53iGZ20,MZ20..CP..(GT,VX)198901-199104

sub76608-29115

76865RETAINER, REAR SPOILER, NO.1

main76865-24020iGZ20,MZ2#198801-199104

76866RETAINER, REAR SPOILER, NO.2

main76866-24010iGZ20,MZ2#198801-199104

76867ARETAINER, REAR SPOILER, NO.3

main76867-24020iGZ20,MZ2#198801-199104

76868ARETAINER, REAR SPOILER, NO.4

main76868-24020iGZ20,MZ2#198801-199104

76871SPOILER, REAR

main76871-24900iGZ20,MZ2#198801-199104

76872PROTECTOR, REAR SPOILER, NO.1

main76872-24020iGZ20,MZ2#198801-199104

76873APROTECTOR, REAR SPOILER, RH

main76873-24010iGZ20,MZ2#198801-199104

76874BPROTECTOR, REAR SPOILER, LH

main76874-24010iGZ20,MZ2#198801-199104

76875PROTECTOR, REAR SPOILER, NO.4

main76875-24020iGZ20,MZ2#198801-199104

76876APROTECTOR, REAR SPOILER, NO.10

main76876-24010iGZ20,MZ2#198801-199104

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-24010iGZ20,MZ2#198801-199104

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-24010iGZ20,MZ2#198801-199104

76887CPROTECTOR, REAR SPOILER, NO.9 RH

main76887-24010iGZ20,MZ2#198801-199104

76888APROTECTOR, REAR SPOILER, NO.9 LH

main76887-24010iGZ20,MZ2#198801-199104

76891SPOILER, REAR NO.1

main76891-24900iGZ20,MZ2#198801-199104

76892SPOILER, REAR NO.2

main76892-24900iGZ20,MZ2#198801-199104

76895PROTECTOR, REAR SPOILER, NO.5

main76895-24010iGZ20,MZ2#198801-199104

76901MUDGUARD SUB-ASSY, SIDE, RH

main76911-24010-02iGZ20..TWC,TWT198801-198901

RED MICA,3H1

main76911-24010-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

main76911-24010-07iGZ20;MZ20..GT198801-199004

GREEN M,6J7

main76911-24010-12iGZ20198901-199004

RED MICA,3H4

main76911-24010-13iGZ20..TWT198801-198901

GRAY METALLIC,26A

main76911-24010-15iMZ2#..GTL198801-199104

LIGHT BEIGE M,24H

main76911-24010-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

main76911-24010-23iMZ20..GT;GZ20..TWC,TWT198801-198901

GRAY M,168

main76911-24010-28iGZ20,MZ2#..CP..(HTWC,TWC,TWT)198801-199004

SUPER WHITE 3,043

main76911-24010-33iGZ20;MZ20..GT198801-199004

WARM GRAY M,24G

main76911-24010-38iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

main76911-24010-43iMZ20..GT;GZ20..TWC,TWT198901-199104

GRAY MICA M,180

main76911-24010-43iGZ20..TWT198901-199104

GRAY MICA M,180 ,20M

main76911-24010-53iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

76902MUDGUARD SUB-ASSY, SIDE, LH

main76912-24010-02iGZ20198801-198901

RED MICA,3H1

main76912-24010-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

main76912-24010-07iMZ20..CP..GT;GZ20..HTWC,TWC,TWT198801-199004

GREEN M,6J7

main76912-24010-12iGZ20198901-199004

RED MICA,3H4

main76912-24010-13iGZ20..TWT198801-198901

GRAY METALLIC,26A

main76912-24010-15iMZ2#..GTL198801-199104

LIGHT BEIGE M,24H

main76912-24010-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

main76912-24010-23iMZ20..GT;GZ20..TWC,TWT198801-198901

GRAY M,168

main76912-24010-28iGZ20,MZ2#..CP..(HTWC,TWC,TWT)198801-199004

SUPER WHITE 3,043

main76912-24010-33iGZ20;MZ20..GT198801-199004

WARM GRAY M,24G

main76912-24010-38iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

main76912-24010-43iGZ20..TWT198901-199104

GRAY MICA M,180

main76912-24010-43iGZ20..TWT198901-199104

GRAY MICA M,180 ,20M

main76912-24010-53iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

76905RETAINER SUB-ASSY, SIDE MUDGUARD, LOWER RH

main76905-24010iGZ20,MZ2#198801-199104

76906RETAINER SUB-ASSY, SIDE MUDGUARD, LOWER LH

main76906-24010iGZ20,MZ2#..CP..(HTWC,TWC,TWT)198801-199104

76915DMUDGUARD, SIDE, FRONT RH

main76915-24011-02iGZ20..TWC,TWT198801-198901

RED MICA,3H1

main76915-24011-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

main76915-24011-07iMZ20..CP..GT;GZ20..HTWC,TWC,TWT198801-199004

GREEN M,6J7

main76915-24011-12iGZ20198901-199004

RED MICA,3H4

main76915-24011-13iGZ20..TWT198801-198901

GRAY METALLIC,26A

main76915-24011-15iMZ2#..GTL198801-199104

LIGHT BEIGE M,24H

main76915-24011-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

main76915-24011-23iGZ20;MZ20..GT198801-198901

GRAY M,168

main76915-24011-28iGZ20,MZ2#198801-199004

SUPER WHITE 3,043

main76915-24011-33iGZ20;MZ20..GT198801-199004

WARM GRAY M,24G

main76915-24011-38iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

main76915-24011-43iGZ20,MZ20..CP..(GT,VX)198901-199104

GRAY MICA M,180

main76915-24011-43iGZ20..TWT198901-199104

GRAY MICA M,180 ,20M

main76915-24011-53iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

76916DMUDGUARD, SIDE, FRONT LH

main76916-24011-02iGZ20198801-198812

RED MICA,3H1

main76916-24011-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

main76916-24011-07iGZ20;MZ20..GT198801-199004

GREEN M,6J7

main76916-24011-12iGZ20198901-199004

RED MICA,3H4

main76916-24011-13iGZ20..TWT198801-198901

GRAY METALLIC,26A

main76916-24011-15iMZ2#..GTL198801-199104

LIGHT BEIGE M,24H

main76916-24011-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

main76916-24011-23iGZ20;MZ20..GT198801-198901

GRAY M,168

main76916-24011-28iGZ20,MZ2#..CP..(HTWC,TWC,TWT)198801-199004

SUPER WHITE 3,043

main76916-24011-33iGZ20;MZ20..GT198801-199004

WARM GRAY M,24G

main76916-24011-38iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

main76916-24011-43iGZ20..HTWC198901-199104

GRAY MICA,180 ,20M

main76916-24011-43iMZ20..GT;GZ20..TWC,TWT198901-199104

GRAY MICA,180

main76916-24011-53iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

76923RETAINER, SIDE MUDGUARD

main76923-24010iGZ20198801-199104

9010906061

main90109-06061

9010906125

main90109-06125

9011906029

main90119-06029

9011906120

main90119-06120

9015960008

main90159-60008

9015960056

main90159-60056

9015960060

main90159-60060

9016450033

main90164-50033

9016840042

main90168-40042

9017906007

main90179-06007

9017906009

main90179-06009

9017906092

main90179-06092

9017906125

main90179-06125

9017906164

main90179-06164

9018906006

main90189-06006

9018906027

main90189-06027

9018906036

main90189-06036

9033903014

main90339-03014

9033903018

main90339-03018

9046708064

main90467-08064

904670811411

main90467-0811411

9046709071

main90467-09071

9046709077

main90467-09077

9046710066

main90467-10066

9054006022

main90540-06022

9054012008

main90540-12008

9054017005

main90540-17005

9056006027

main90560-06027

9326955008

main93269-55008

57 parts on this diagram · 1 diagram in section
