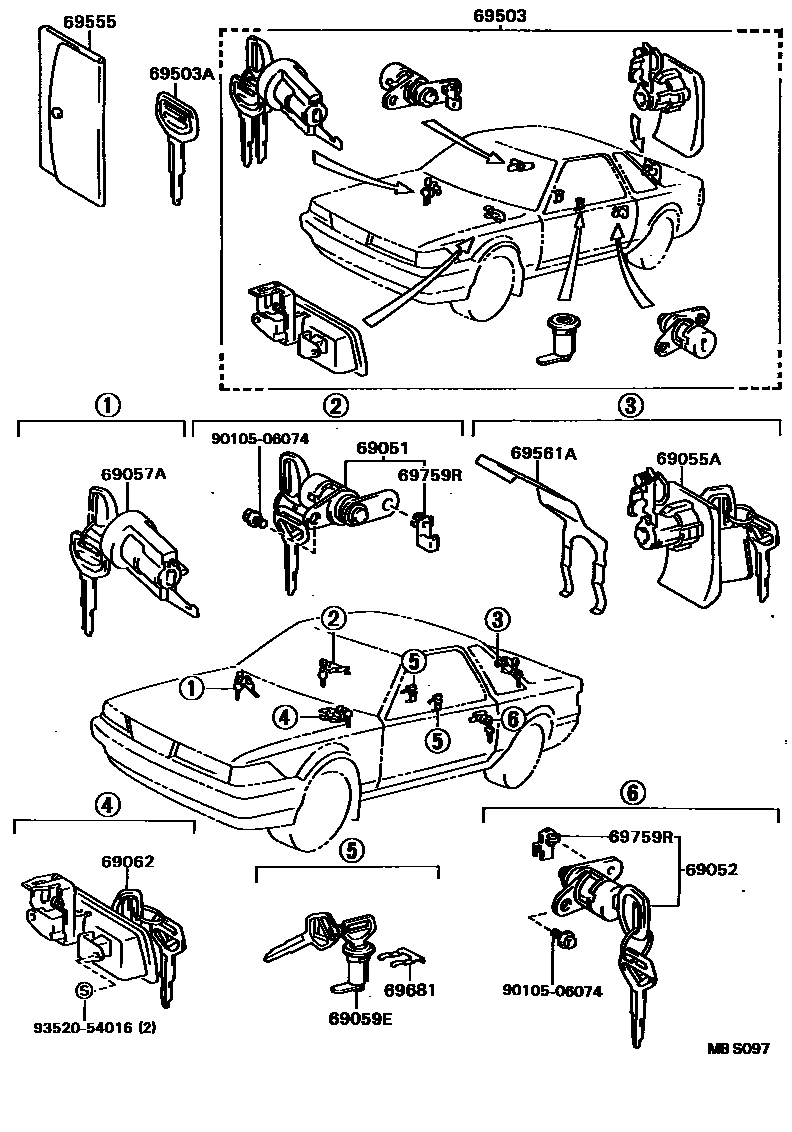

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69059ECYLINDER & KEY SET, CONSOLE COMPARTMENT LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
GRAIGE,TRIM4#
69503AKEY, BLANK
69555COVER, KEY
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69681CLAMP, DOOR LOCK CYLINDER & SLEEVE
69759RSNAP, FRONT DOOR LOCK CYLINDER
9010506074
9352054016
14 parts on this diagram · 2 diagrams in section
