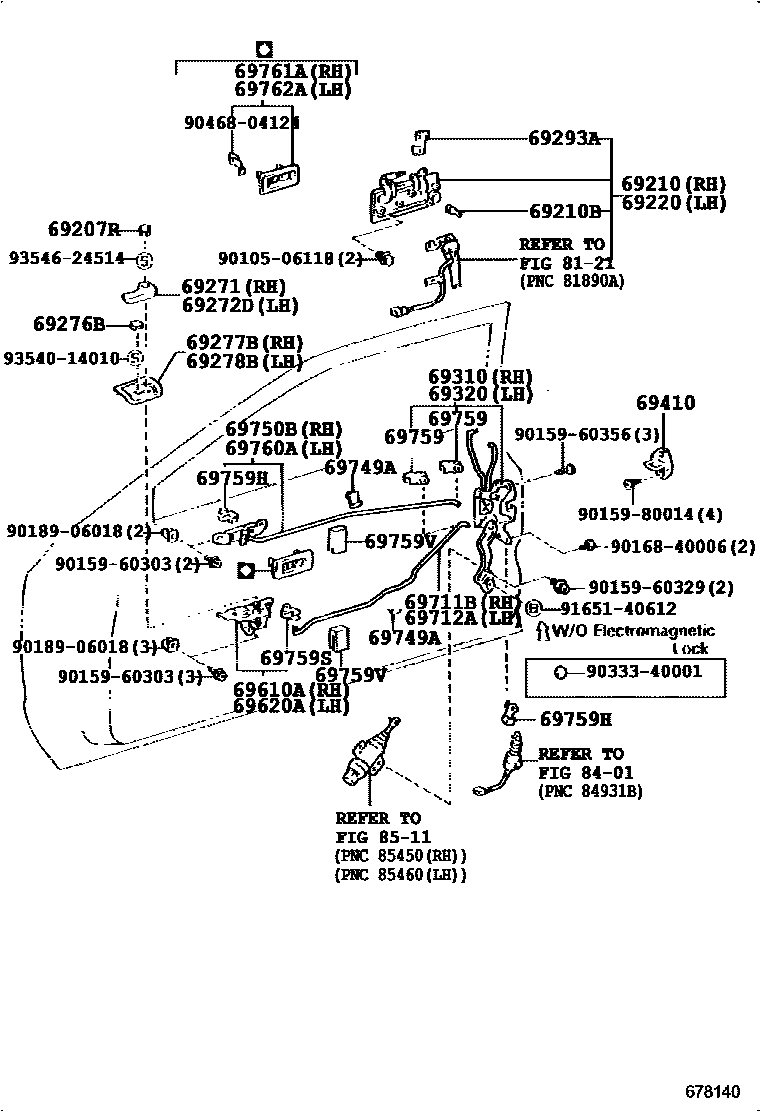

FRONT DOOR LOCK & HANDLE
69207RPLUG(FOR FRONT DOOR INSIDE HANDLE)
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69271HANDLE, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
DARK BLUE,TRIM8#
GREIGE,TRIM4#
69272DHANDLE, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
DARK BLUE,TRIM8#
GREIGE,TRIM4#
69276BPLUG(FOR FRONT DOOR INSIDE HANDLE BEZEL)
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH
69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
BLACK,TRIM2#
DARK BLUE,TRIM8#
GREIGE,TRIM4#
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LH
RH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
RH,DOOR INSIDE LINK
RH,DOOR LOCK
LH,DOOR LOCK
LH,DOOR INSIDE LINK
69759SSNAP, FRONT DOOR INSIDE HANDLE
69759VSILENCER, FRONT DOOR LOCK LINK
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
BLACK,TRIM2#
DARK BLUE,TRIM8#
GREIGE,TRIM4#
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
8121
8401
8511
9010506118
main90105-06118
9015960303
main90159-60303
9015960329
main90159-60329
9015960356
main90159-60356
9015980014
main90159-80014
9016840006
main90168-40006
9018906018
main90189-06018
9033340001
main90333-40001
9046804124
main90468-04124
9165140612
main91651-40612
9354014010
main93540-14010
9354624514
main93546-24514
41 parts on this diagram · 1 diagram in section
