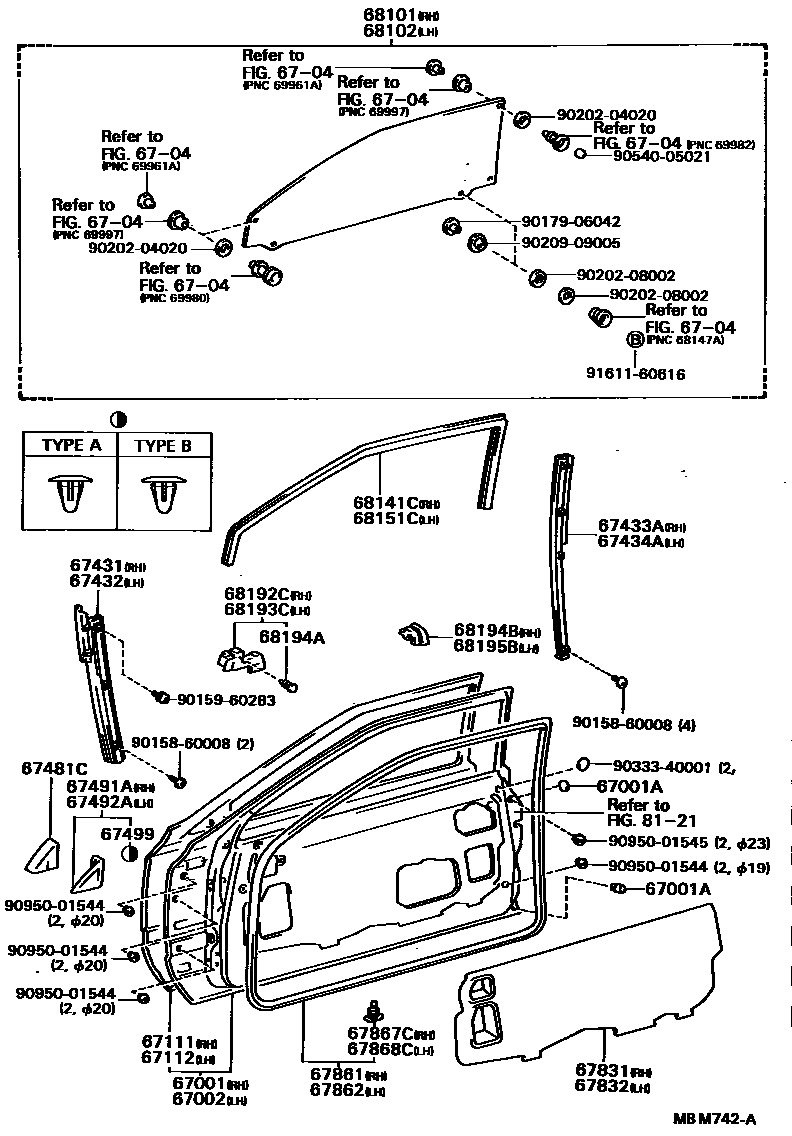

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
6704
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67431GUIDE, FRONT DOOR WINDOW, FRONT RH
67432GUIDE, FRONT DOOR WINDOW, FRONT LH
67433AGUIDE, FRONT DOOR WINDOW, REAR RH
67434AGUIDE, FRONT DOOR WINDOW, REAR LH
67481CSEAL, FRONT DOOR FRONT LOWER FRAME
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68192CSEAL, FRONT DOOR BELT, FRONT RH
68193CSEAL, FRONT DOOR BELT, FRONT LH
68194ACLIP(FOR FRONT DOOR BELT SEAL)
68194BSEAL, FRONT DOOR BELT, REAR RH
68195BSEAL, FRONT DOOR BELT, REAR LH
8121
9015860008
main90158-60008
9015960283
main90159-60283
9017906042
main90179-06042
9020204020
main90202-04020
9020208002
main90202-08002
9020909005
main90209-09005
9033340001
main90333-40001
9054005021
main90540-05021
9095001544
main90950-01544
9095001545
main90950-01545
9161160616
main91611-60616
41 parts on this diagram · 2 diagrams in section
