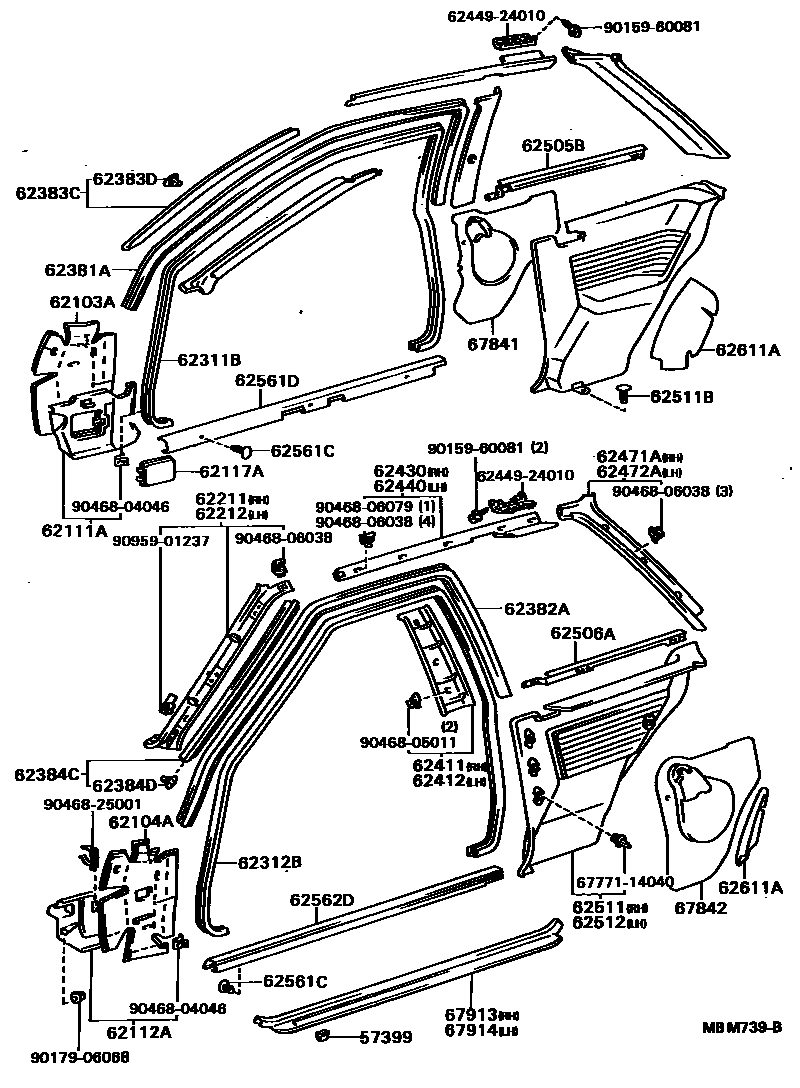

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

57399COVER, FRONT STEP HOLE

main57399-24010iGZ20,MZ2#198801-199104

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-24020iGZ20,MZ2#198801-199104

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-24020iGZ20,MZ2#198801-199104

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-24040-01iGZ20..GT,VX198801-199104

BLACK,TRIM2#

main62101-24040-04iGZ20..GT,VX198801-199104

DARK BLUE,TRIM8#

main62101-24040-15iGZ20..GT,VX198801-199104

GREIGE,TRIM4#

main62101-24050-01iGZ20..TWT;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62101-24050-04iGZ20..TWT;MZ20..CP..GT198801-199104

DARK BLUE,TRIM8#

main62101-24050-15iMZ20..AEC198904-198905

GREIGE,GREIGE,TRIM4#

main62101-24050-15iGZ20..TWT;MZ20..CP..GT198801-199104

GREIGE,TRIM4#

main62101-24060-04iMZ2#..GTL198801-199104

DARK BLUE,TRIM8#

main62101-24060-15iMZ2#..GTL198801-199104

GREIGE,TRIM4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-24060-01iGZ20..GT,VX198801-199104

BLACK,TRIM2#

main62102-24060-04iGZ20..GT,VX198801-199104

DARK BLUE,TRIM8#

main62102-24060-15iGZ20..GT,VX198801-199104

GREIGE,TRIM4#

main62102-24070-01iGZ20..TWT;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62102-24070-04iGZ20..TWT;MZ20..CP..GT198801-199104

DARK BLUE,TRIM8#

main62102-24070-15iMZ20..GT;GZ20..TWT198801-199104

GREIGE,TRIM4#

main62102-24080-04iMZ2#..GTL198801-199104

DARK BLUE,TRIM8#

main62102-24080-15iMZ2#..GTL198801-199104

GREIGE,TRIM4#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-24030-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

sub62117-24030

main62117-24030-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

sub62117-24030

main62117-24030-05iGZ20,MZ2#198801-199104

GREIGE,TRIM4#

sub62117-24030

62211GARNISH, FRONT PILLAR, RH

main62210-24020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62210-24020-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main62210-24020-15iGZ20,MZ2#..CP198801-199104

GREIGE,TRIM4#

main62210-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62220-24020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62220-24020-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main62220-24020-15iGZ20,MZ2#..CP198801-199104

GREIGE,TRIM4#

main62220-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-24010-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

sub62311-24010

main62311-24010-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

sub62311-24010

main62311-24010-15iGZ20,MZ2#198801-199104

GREIGE,TRIM4#

sub62311-24010

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62311-24010-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

sub62311-24010

main62311-24010-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

sub62311-24010

main62311-24010-15iGZ20,MZ2#198801-199104

GREIGE,TRIM4#

sub62311-24010

62381AWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-24050iGZ20,MZ2#198801-198804

sub62381-24051

main62381-24051iGZ20,MZ2#198804-199104

62382AWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-24070iGZ20,MZ2#198801-198804

sub62382-24071

main62382-24071iGZ20,MZ2#198804-199104

62383CWEATHERSTRIP, ROOF SIDE RAIL, NO.3 RH

main62383-24010iGZ20,MZ2#198801-199104

62383DRETAINER, ROOF SIDE RAIL, RH

main67867-24010iGZ20,MZ2#198801-199104

62384CWEATHERSTRIP, ROOF SIDE RAIL, NO.3 LH

main62384-24010iGZ20,MZ2#198801-199104

62384DRETAINER, ROOF SIDE RAIL, LH

main67868-24010iGZ20,MZ2#198801-199104

62411GARNISH, CENTER PILLAR, RH

main62410-24030-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

sub62410-24030

main62410-24030-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

sub62410-24030

main62410-24030-15iGZ20,MZ2#..CP198801-199104

GREIGE,TRIM4#

sub62410-24030

main62410-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-24031-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

sub62420-24031

main62420-24031-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

sub62420-24031

main62420-24031-15iGZ20,MZ2#..CP198801-199104

GREIGE,TRIM4#

sub62420-24031

main62420-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62430-24020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62430-24020-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main62430-24020-15iGZ20,MZ2#..CP198801-199104

GREIGE,TRIM4#

main62430-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62440-24020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62440-24020-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main62440-24020-15iGZ20,MZ2#..CP198801-199104

GREIGE,TRIM4#

main62440-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-24021-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62470-24021-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main62470-24021-05iGZ20,MZ2#..CP198801-199104

GREIGE,TRIM4#

main62470-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-24021-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62480-24021-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main62480-24021-05iGZ20,MZ2#..CP198801-199104

GREIGE,TRIM4#

main62480-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62505BMOULDING SUB-ASSY, QUARTER TRIM, RH

main62505-24020iGZ20,MZ2#..CP198801-199104

main62505-91F01iMZ20..AEC198904-198905

62506AMOULDING SUB-ASSY, QUARTER TRIM, LH

main62506-24020iGZ20,MZ2#..CP198801-199104

main62506-91F01iMZ20..AEC198904-198905

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-24031-01iGZ20..GT,VX198801-199104

BLACK,TRIM2#

main62510-24031-04iGZ20..GT,VX198801-199104

DARK BLUE,TRIM8#

main62510-24031-05iGZ20..GT,VX198801-199104

GREIGE,TRIM4#

main62510-24041-01iGZ20..GTT198801-199104

BLACK,TRIM2#

main62510-24041-04iGZ20..GTT198801-199104

DARK BLUE,TRIM8#

main62510-24041-05iGZ20..GTT198801-199104

GREIGE,TRIM4#

main62510-24051-01iGZ20..GTL;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62510-24051-04iGZ20..GTL;MZ20..CP..GT198801-199104

DARK BLUE,TRIM8#

main62510-24051-05iGZ20..GTL;MZ20..CP..GT198801-199104

GREIGE,TRIM4#

main62510-24081-05iMZ2#..GTL198801-199104

main62510-24091-05iMZ2#..GTL198801-199104

GREIGE,TRIM4#

main62510-24111-04iMZ2#..GTL198801-199104

DARK BLUE,TRIM8#

main62510-24111-05iMZ2#..GTL198801-199104

main62510-24120-01iMZ20..GT;GZ20..GTL199004-199104

main62510-24120-04iMZ20..GT;GZ20..GTL199004-199104

main62510-24120-05iMZ20..GT;GZ20..GTL199004-199104

main62510-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM4#,8#

sub90467-06020

main90467-06020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#,4#,8#

sub90467-06020

main90467-06020-25iMZ2#..GTL198904-199104

GREIGE,TRIM4#

sub90467-06020

main90467-06020-33iGZ20;MZ20..CP..GT198809-199104

GRAY,TRIM8#

sub90467-06020

main90467-06020-33iMZ2#..GTL198809-199104

GRAY,TRIM2#,4#,8#

sub90467-06020

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-24031-01iGZ20..GT,VX198801-199104

BLACK,TRIM2#

main62520-24031-04iGZ20..GT,VX198801-199104

DARK BLUE,TRIM8#

main62520-24031-05iGZ20..GT,VX198801-199104

GREIGE,TRIM4#

main62520-24041-01iGZ20..GTT198801-199104

BLACK,TRIM2#

main62520-24041-04iGZ20..GTT198801-199104

DARK BLUE,TRIM8#

main62520-24041-05iGZ20..GTT198801-199104

GREIGE,TRIM4#

main62520-24051-01iGZ20..GTL;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main62520-24051-04iGZ20..GTL;MZ20..CP..GT198801-199104

DARK BLUE,TRIM8#

main62520-24051-05iGZ20..GTL;MZ20..CP..GT198801-199104

GREIGE,TRIM4#

main62520-24081-05iMZ2#..GTL198801-199104

main62520-24091-05iMZ2#..GTL198801-199104

GREIGE,TRIM4#

main62520-24111-04iMZ2#..GTL198801-199104

DARK BLUE,TRIM8#

main62520-24111-05iMZ2#..GTL198801-199104

main62520-24120-01iMZ20..GT;GZ20..GTL199004-199104

main62520-24120-04iMZ20..GT;GZ20..GTL199004-199104

main62520-24120-05iMZ20..GT;GZ20..GTL199004-199104

main62520-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-01iMZ2#..GTL198801-199104

BLACK,TRIM4#

sub90467-08056

main90467-08056-01iMZ2#..GTL198801-199104

BLACK,TRIM4#,8#

sub90467-08056

main90467-08056-01iMZ2#..GTL198801-199104

BLACK,TRIM2#,4#,8#

sub90467-08056

62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH

main62561-24020iGZ20,MZ2#198801-199104

62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH

main62562-24010iGZ20,MZ2#198801-199104

62611APAD, QUARTER WHEEL HOUSE

main62611-24010iGZ20,MZ2#198801-199104

67841COVER, QUARTER SERVICE HOLE, NO.1 RH

main67841-24010iGZ20,MZ2#..CP198801-199104

main67841-91F01iMZ20..AEC198904-198905

67842COVER, QUARTER SERVICE HOLE, NO.1 LH

main67842-24010iGZ20,MZ2#..CP198801-199104

main67842-91F01iMZ20..AEC198904-198905

67913PLATE, FRONT DOOR SCUFF, RH

main67913-24020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

sub67913-24020

main67913-24020-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

sub67913-24020

main67913-24020-15iGZ20,MZ2#198801-199104

GREIGE,TRIM4#

sub67913-24020

67914PLATE, FRONT DOOR SCUFF, LH

main67913-24020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

sub67913-24020

main67913-24020-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

sub67913-24020

main67913-24020-15iGZ20,MZ2#198801-199104

GREIGE,TRIM4#

sub67913-24020

6244924010

main62449-24010

6777114040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14040

9015960081

main90159-60081

9017906068

main90179-06068

9046804046

main90468-04046

9046805011

main90468-05011

9046806038

main90468-06038

9046806079

main90468-06079

9046825001

main90468-25001

9095901237

main90959-01237

45 parts on this diagram · 2 diagrams in section
