INSTRUMENT PANEL & GLOVE COMPARTMENT
55049ABRUSH SET
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55321BBRACKET, INSTRUMENT PANEL, NO.1
55322ABRACKET, INSTRUMENT PANEL, NO.2
55323ABRACKET, INSTRUMENT PANEL, NO.3
55331REINFORCEMENT, INSTRUMENT PANEL
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM2#
DARK BLUE,TRIM8#
GREIGE,TRIM4#
GREIGE,TRIM4#
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
55435APANEL, INSTRUMENT PANEL FINISH, END RH
55436APANEL, INSTRUMENT PANEL FINISH, END LH
BLACK,TRIM2#
DARK BLUE,TRIM8#
GREIGE,TRIM4#
55441BOX, INSTRUMENT PANEL
55457BSPACER, INSTRUMENT PANEL SAFETY PAD
55477ABEZEL, CIGARETTE LIGHTER HOLE
55510DOOR ASSY, GLOVE COMPARTMENT
BLACK,TRIM2#
DARK BLUE,TRIM8#
GREIGE,TRIM4#
GREIGE,TRIM4#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55539COVER, SPARE SWITCH HOLE
55539CCOVER, SPARE SWITCH HOLE
55548ACOVER, INSTRUMENT PANEL HOLE
55556ARM, GLOVE COMPARTMENT DOOR CHECK
55581ACOMPARTMENT, GLOVE
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
BLACK,TRIM2#
DARK BLUE,TRIM8#
GREIGE,TRIM4#
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
BLACK,TRIM2#
DARK BLUE,TRIM8#
GREIGE,TRIM4#
55647CLAMP, INSTRUMENT PANEL UNDER COVER
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
7404
9011906251
main90119-06251
9015960081
main90159-60081
9017906097
main90179-06097
9017908025
main90179-08025
9018305005
main90183-05005
9046714009
main90467-14009
9046804106
main90468-04106
9046805047
main90468-05047
9165540820
main91655-40820
9324955010
main93249-55010
9356755016
main93567-55016
9356755020
main93567-55020

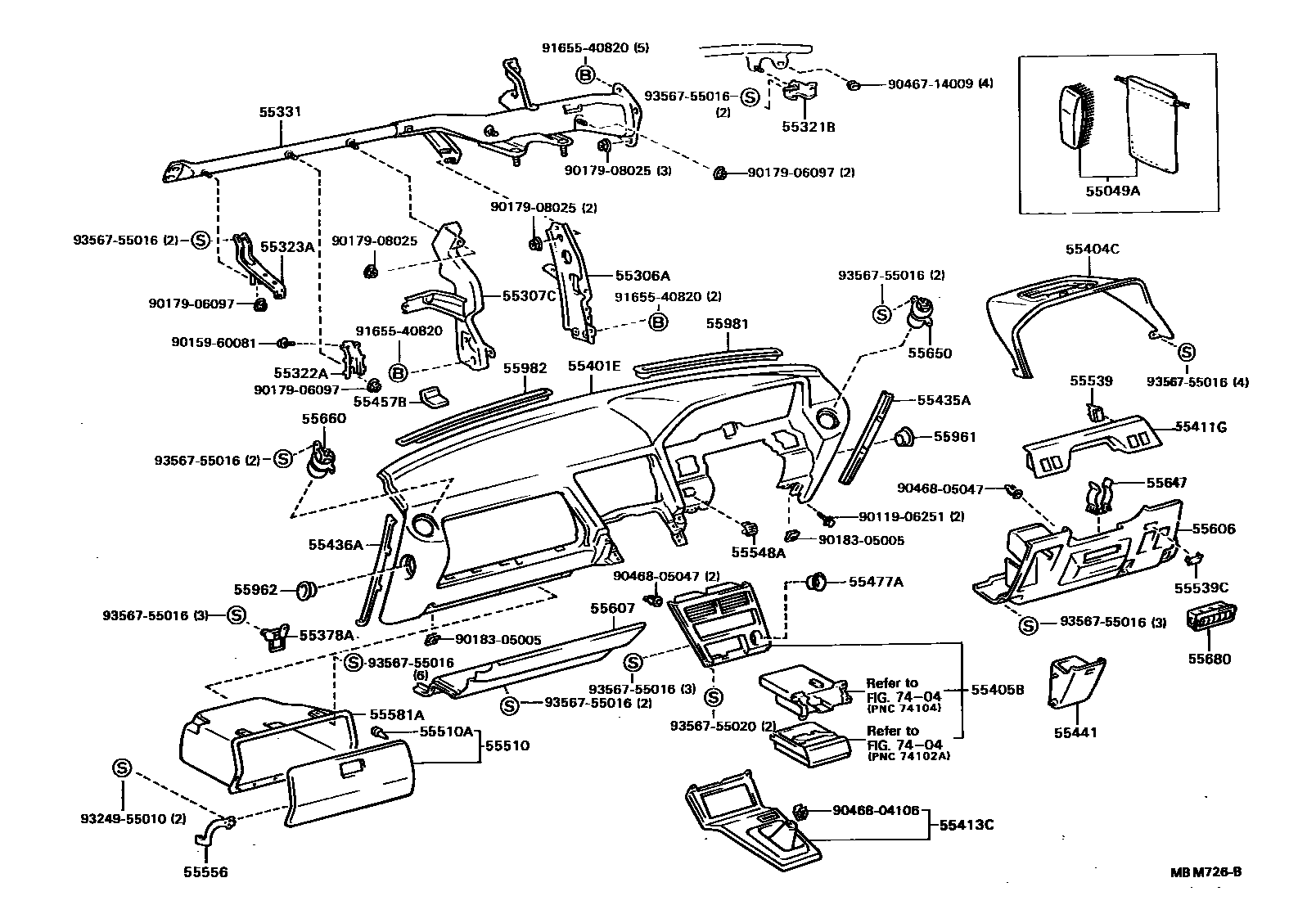

48 parts on this diagram · 1 diagram in section
