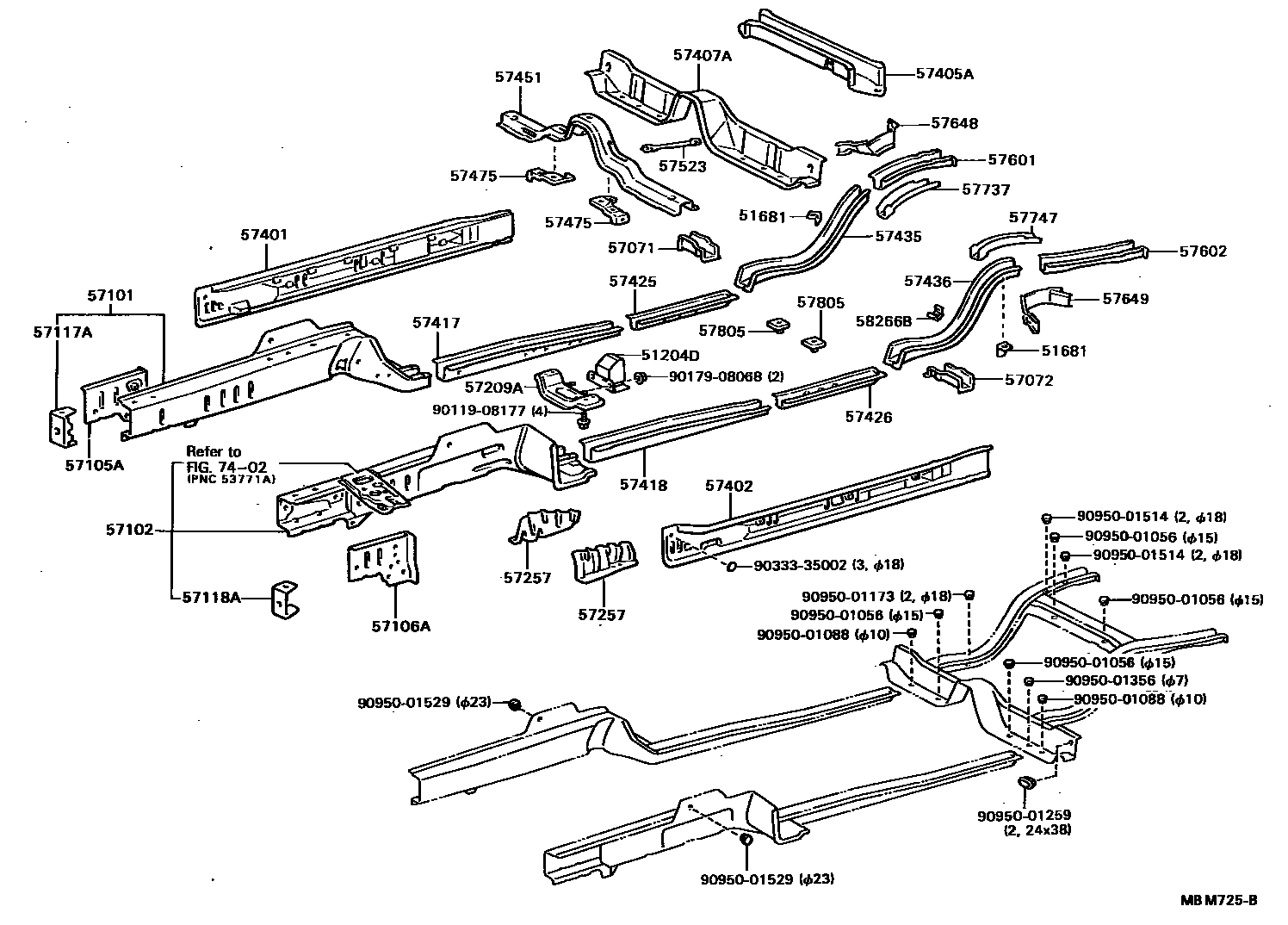

FLOOR SIDE MEMBER
51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51681BRACKET, FLEXIBLE HOSE
57071BOX SUB-ASSY, TORQUE, REAR RH
57072BOX SUB-ASSY, TORQUE, REAR LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
57257BRACKET, ENGINE REAR SUPPORT MEMBER
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57435MEMBER, CENTER FLOOR SIDE, RH
57436MEMBER, CENTER FLOOR SIDE, LH
57451MEMBER, FRONT FLOOR CROSS
57475PLATE, FRONT FLOOR CROSSMEMBER
57523BRACE, CENTER FLOOR CROSSMEMBER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57648GUSSET, QUARTER WHEEL HOUSE, NO.1 RH
57649GUSSET, QUARTER WHEEL HOUSE, NO.1 LH
57737REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH
57747REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH
57805REINFORCEMENT SUB-ASSY, BELT ANCHOR
58266BBRACKET, FUEL TUBE CLAMP
7402
9011908177
main90119-08177
9017908068
main90179-08068
9033335002
main90333-35002
9095001056
main90950-01056
9095001088
main90950-01088
9095001173
main90950-01173
9095001259
main90950-01259
9095001356
main90950-01356
9095001514
main90950-01514
9095001529
main90950-01529
44 parts on this diagram · 2 diagrams in section
