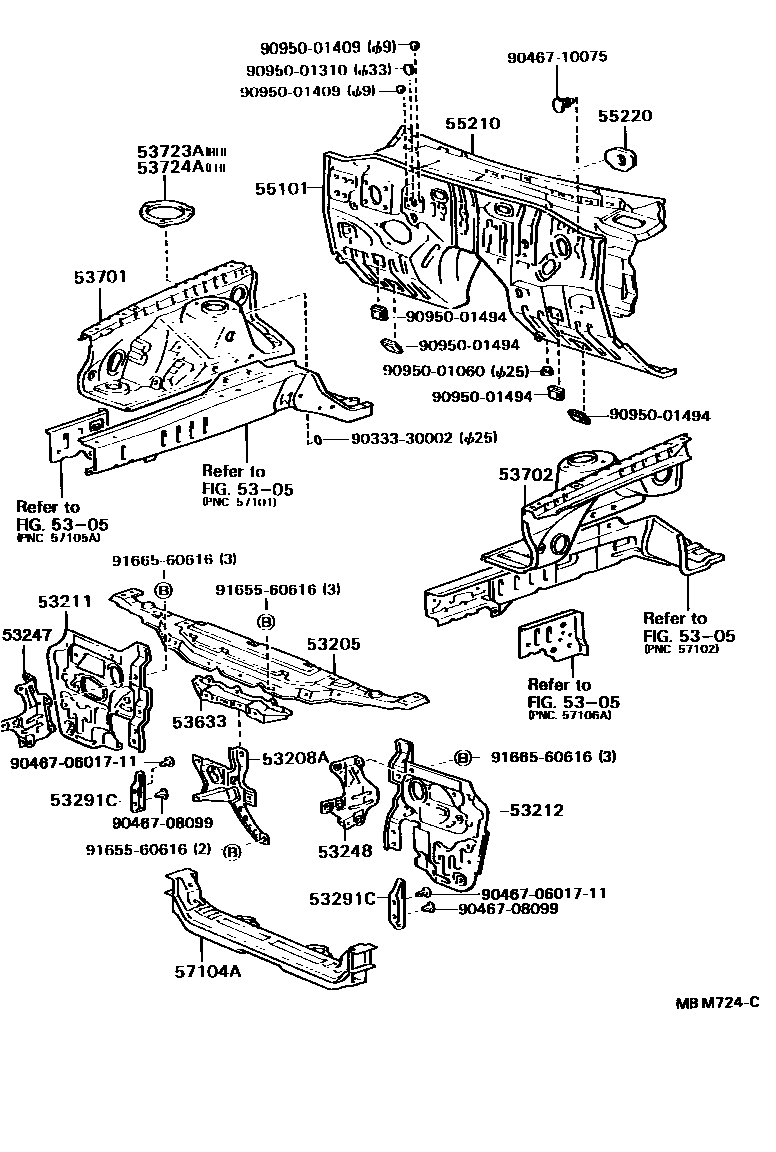

FRONT FENDER APRON & DASH PANEL
5305
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53247BRACKET, HEADLAMP MOUNTING, INNER RH
53248BRACKET, HEADLAMP MOUNTING, INNER LH
53291CSEAL, RADIATOR SUPPORT TO FRAME
53633SHIELD, HOOD LOCK CONTROL CABLE
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55220INSULATOR ASSY, DASH PANEL, NO.2
57104AMEMBER SUB-ASSY, FRONT CROSS
9033330002
main90333-30002
904670601711
main90467-0601711
9046708099
main90467-08099
9046710075
main90467-10075
9095001060
main90950-01060
9095001310
main90950-01310
9095001409
main90950-01409
9095001494
main90950-01494
9165560616
main91655-60616
9166560616
main91665-60616
27 parts on this diagram · 1 diagram in section
