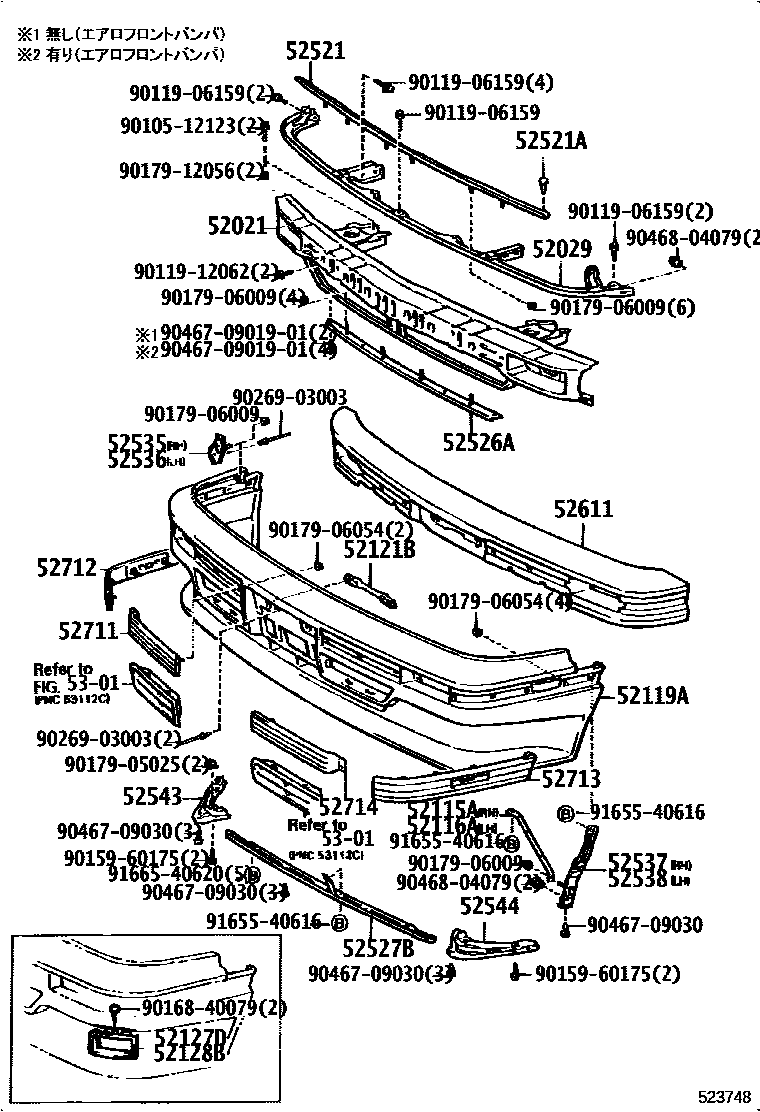

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-24031iGZ20,MZ2#198801-199104

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-24021iGZ20,MZ2#198801-199104

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-24030iGZ20,MZ2#198801-199104

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-24030iGZ20,MZ2#198801-199104

52119ACOVER, FRONT BUMPER

main52119-24030-01iMZ20..GT;GZ20..TWC,TWT198901-199104

BLACK M - GRAY M M,20M

sub52119-24911

main52119-24030-02iGZ20198801-198901

RED MICA,3H1

sub52119-24911

main52119-24030-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

sub52119-24911

main52119-24030-06iGZ20;MZ20..GT199004-199104

G BROWN M M-GRAY M,22R

sub52119-24911

main52119-24030-07iGZ20;MZ20..GT198801-199004

GREEN M,6J7

sub52119-24911

main52119-24030-10iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

sub52119-24911

main52119-24030-12iGZ20198901-199004

RED MICA,3H4

sub52119-24911

main52119-24030-13iGZ20..TWT198801-198901

DARK GRAY M/GRAY M,26A

sub52119-24911

main52119-24030-17iGZ20,MZ2#199004-199104

G GREEN M-L GREEN M,23R

sub52119-24911

main52119-24030-23iGZ20;MZ20..GT198801-198901

GRAY M,168

sub52119-24911

main52119-24030-33iGZ20;MZ20..CP..GT198901-199104

GRAY MICA M,180

sub52119-24911

main52119-24030-38iGZ20,MZ2#198801-199004

SUPER WHITE 3,043

sub52119-24911

main52119-24030-48iGZ20;MZ20..CP..GT198801-199004

W GRAY P M-W GRAY M,24G

sub52119-24911

main52119-24030-58iMZ2#..GTL;MZ20..AEC198801-199104

C PEARL M2-L BEIGE M,24H

sub52119-24911

main52119-24050-01iGZ20..TWT198901-199104

sub52119-24912

main52119-24050-02iGZ20198801-198901

sub52119-24912

main52119-24050-04iGZ20;MZ20..GT199004-199104

sub52119-24912

main52119-24050-06iGZ20;MZ20..GT199004-199104

sub52119-24912

main52119-24050-07iGZ20;MZ20..GT198801-199004

sub52119-24912

main52119-24050-10iGZ20,MZ2#199004-199104

sub52119-24912

main52119-24050-12iGZ20198901-199004

sub52119-24912

main52119-24050-13iGZ20..TWT198801-198901

sub52119-24912

main52119-24050-17iGZ20,MZ2#199004-199104

sub52119-24912

main52119-24050-23iGZ20;MZ20..GT198801-198901

sub52119-24912

main52119-24050-33iGZ20;MZ20..CP..GT198901-199104

sub52119-24912

main52119-24050-38iGZ20,MZ2#198801-199004

sub52119-24912

main52119-24050-48iGZ20;MZ20..CP..GT198801-199004

sub52119-24912

main52119-24050-58iMZ2#..GTL;MZ20..AEC198801-199104

sub52119-24912

main52119-24070-01iGZ20..TWT198901-199104

sub52119-24913

main52119-24070-02iGZ20198801-198901

sub52119-24913

main52119-24070-03iGZ20;MZ20..GT198801-198901

sub52119-24913

main52119-24070-04iGZ20;MZ20..GT199004-199104

sub52119-24913

main52119-24070-06iGZ20;MZ20..GT199004-199104

sub52119-24913

main52119-24070-07iGZ20;MZ20..GT198801-199004

sub52119-24913

main52119-24070-08iGZ20,MZ2#198801-199004

sub52119-24913

main52119-24070-12iGZ20198901-199004

sub52119-24913

main52119-24070-13iGZ20..TWT198801-198901

sub52119-24913

main52119-24070-17iGZ20,MZ2#199004-199104

sub52119-24913

main52119-24070-18iGZ20;MZ20..CP..GT198801-199004

sub52119-24913

main52119-24070-23iGZ20;MZ20..CP..GT198901-199104

sub52119-24913

main52119-24070-28iMZ2#..GTL;MZ20..AEC198801-199104

sub52119-24913

main52119-24070-38iGZ20,MZ2#199004-199104

sub52119-24913

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-24010iGZ20,MZ2#198801-199104

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-24030-02iGZ20198801-198901

RED MAICA,3H1

sub52127-24030

main52127-24030-03iGZ20;MZ20..GT198801-198901

GRAY M,168

sub52127-24030

main52127-24030-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

sub52127-24030

main52127-24030-05iMZ2#..GTL;MZ20..AEC198801-199104

LIGHT BEIGE M,24H

sub52127-24030

main52127-24030-07iGZ20;MZ20..GT198801-199004

GREEN M,6J7

sub52127-24030

main52127-24030-08iGZ20,MZ2#198801-199004

SUPER WHITE 3,043

sub52127-24030

main52127-24030-12iGZ20198901-199004

RED MICA,3H4

sub52127-24030

main52127-24030-13iGZ20..TWT198801-198901

GRAY M,26A

sub52127-24030

main52127-24030-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

sub52127-24030

main52127-24030-18iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

sub52127-24030

main52127-24030-23iGZ20;MZ20..CP..GT198801-199004

WARM GRAY M,24G

sub52127-24030

main52127-24030-33iMZ20..GT;GZ20..TWC,TWT198901-199104

GRAY MICA M,180

sub52127-24030

main52127-24030-33iMZ20..GT;GZ20..TWC,TWT198901-199104

GRAY MICA M,180 ,20M

sub52127-24030

main52127-24030-43iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

sub52127-24030

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-24030-02iGZ20198801-198901

RED MAICA,3H1

sub52128-24030

main52128-24030-03iGZ20;MZ20..GT198801-198901

GRAY M,168

sub52128-24030

main52128-24030-04iGZ20;MZ20..GT199004-199104

DARK BLUE MICA M,8G5

sub52128-24030

main52128-24030-05iMZ2#..GTL;MZ20..AEC198801-199104

LIGHT BEIGE M,24H

sub52128-24030

main52128-24030-07iGZ20;MZ20..GT198801-199004

GREEN,6J7

sub52128-24030

main52128-24030-08iGZ20,MZ2#198801-199004

SUPER WHITE 3,043

sub52128-24030

main52128-24030-12iGZ20198901-199004

RED MICA,3H4

sub52128-24030

main52128-24030-13iGZ20..TWT198801-198901

GRAY M,26A

sub52128-24030

main52128-24030-17iGZ20,MZ2#199004-199104

LIGHT GREEN M,23R

sub52128-24030

main52128-24030-18iGZ20,MZ2#199004-199104

SUPER WHITE 4,050

sub52128-24030

main52128-24030-23iGZ20;MZ20..CP..GT198801-199004

WARM GRAY M,24G

sub52128-24030

main52128-24030-33iGZ20,MZ20..CP..(GT,VX)198901-199104

GRAY MICA M,180

sub52128-24030

main52128-24030-33iGZ20..TWT198901-199104

GRAY MICA M,180 ,20M

sub52128-24030

main52128-24030-43iGZ20;MZ20..GT199004-199104

GRAY MICA M,22R

sub52128-24030

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-24020iGZ20,MZ2#198801-199104

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-06017-11iMZ2#..GTL198801-198910

BLACK,TRIM4#,8#

sub90467-06017

main90467-06017-11iMZ2#..GTL198801-198910

BLACK,TRIM4#

sub90467-06017

main90467-06017-11iMZ2#..GTL198801-199104

BLACK,TRIM2#,4#,8#

sub90467-06017

main90467-06017-11iMZ2#198910-199104

BLACK

sub90467-06017

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-24010iGZ20,MZ2#198801-199104

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-24020iGZ20,MZ2#198801-199104

main52527-24030iGZ20,MZ2#198801-199104

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-24020iGZ20,MZ2#198801-199104

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-24020iGZ20,MZ2#198801-199104

52537RETAINER, FRONT BUMPER END, RH

main52537-24010iGZ20,MZ2#198801-199104

main52537-24020iGZ20,MZ2#198801-199104

52538RETAINER, FRONT BUMPER END, LH

main52538-24010iGZ20,MZ2#198801-199104

main52538-24020iGZ20,MZ2#198801-199104

52543SEAL, FRONT BUMPER SIDE, RH

main52543-24010iGZ20,MZ2#198801-199104

52544SEAL, FRONT BUMPER SIDE, LH

main52544-24010iGZ20,MZ2#198801-199104

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24020iGZ20,MZ2#198801-199104

52711MOULDING, FRONT BUMPER

main52711-24030-01iMZ20..GT;GZ20..TWC,TWT198901-199104

BLACK,180 ,20M

main52711-24030-01iGZ20..HTWC198901-199104

BLACK,180

main52711-24030-02iGZ20198901-199004

RED,3H4

main52711-24030-02iGZ20198801-198812

RED,3H1

main52711-24030-03iMZ2#..GTL;MZ20..AEC198801-199004

LIGHT GRAY,043

main52711-24030-03iGZ20,MZ2#199004-199104

LIGHT GRAY,050

main52711-24030-03iGZ20;MZ20..CP..GT198801-199004

LIGHT GRAY,043 ,24G

main52711-24030-04iGZ20;MZ20..GT199004-199104

DARK BLUE,8G5

main52711-24030-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main52711-24030-06iGZ20;MZ20..GT199004-199104

DARK BROWN,22R

main52711-24030-07iGZ20;MZ20..GT198801-199004

GREEN,6J7

main52711-24030-13iGZ20..TWT198801-198901

GRAY,168

main52711-24030-13iGZ20,MZ20..GT,VX198801-198901

GRAY,168 ,26A

main52711-24030-17iGZ20,MZ2#199004-199104

GREEN,23R

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-24040-01iGZ20..TWC,TWT198901-199104

BLACK,180 ,20M

main52712-24040-01iGZ20..TWC,TWT198901-199104

BLACK,180

main52712-24040-02iGZ20198901-199004

RED,3H4

main52712-24040-02iGZ20198801-198812

RED,3H1

main52712-24040-03iGZ20199004-199104

LIGHT GRAY,050

main52712-24040-03iGZ20198801-199004

LIGHT GRAY,043 ,24G

main52712-24040-04iGZ20199004-199104

DARK BLUE,8G5

main52712-24040-06iGZ20199004-199104

DARK BROWN,22R

main52712-24040-07iGZ20198801-199004

GREEN,6J7

main52712-24040-13iGZ20..EFI,TWC198801-198901

GRAY,168

main52712-24040-13iGZ20..EFI,TWC198801-198901

GRAY,168 ,26A

main52712-24040-17iGZ20199004-199104

GREEN,23R

main52712-24050-01iMZ20..GT199004-199104

BLACK,180 ,20M

main52712-24050-01iMZ20..CP..GT198901-199004

BLACK,180

main52712-24050-03iMZ2#199004-199104

LIGHT GRAY,050

main52712-24050-03iMZ20..CP..GT198801-199004

LIGHT GRAY,043 ,24G

main52712-24050-03iMZ20..CP..GT198801-199004

LIGHT GRAY,043

main52712-24050-04iMZ20..GT199004-199104

DARK BLUE,8G5

main52712-24050-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main52712-24050-06iMZ20..GT199004-199104

DARK BROWN,22R

main52712-24050-07iMZ20..GT198801-199004

GREEN,6J7

main52712-24050-13iMZ20..GT198801-198901

GRAY,168

main52712-24050-17iMZ2#199004-199104

GREEN,23R

52713PLUG, FRONT BUMPER MOULDING

main52713-24040-01iGZ20..HTWC198901-199104

BLACK,180

main52713-24040-01iGZ20..TWT198901-199104

BLACK,180 ,20M

main52713-24040-02iGZ20198801-198812

RED,3H1

main52713-24040-02iGZ20198901-199004

RED,3H4

main52713-24040-03iGZ20198801-199004

LIGHT GRAY,043 ,24G

main52713-24040-03iGZ20199004-199104

LIGHT GRAY,050

main52713-24040-04iGZ20199004-199104

DARK BLUE,8G5

main52713-24040-06iGZ20199004-199104

DARK BROWN,22R

main52713-24040-07iGZ20198801-199004

GREEN,6J7

main52713-24040-13iGZ20..TWT198801-198901

GRAY,168 ,26A

main52713-24040-13iGZ20..TWT198801-198901

GRAY,168

main52713-24040-17iGZ20199004-199104

GREEN,23R

main52713-24050-01iMZ20..CP..GT198901-199004

BLACK,180

main52713-24050-01iMZ20..GT199004-199104

BLACK,180 ,20M

main52713-24050-03iMZ20..CP..GT198801-199004

LIGHT GRAY,043 ,24G

main52713-24050-03iMZ20..CP..GT198801-199004

LIGHT GRAY,043

main52713-24050-03iMZ2#199004-199104

LIGHT GRAY,050

main52713-24050-04iMZ20..GT199004-199104

DARK BLUE,8G5

main52713-24050-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main52713-24050-06iMZ20..GT199004-199104

DARK BROWN,22R

main52713-24050-07iMZ20..GT198801-199004

GREEN,GREEN,6J7

main52713-24050-13iMZ20..GT198801-198901

GRAY,168

main52713-24050-17iMZ2#199004-199104

GREEN,23R

52714PLUG, FRONT BUMPER MOULDING, LH

main52714-24030-01iGZ20..HTWC198901-199104

BLACK,180

main52714-24030-01iGZ20..HTWC199004-199104

BLACK,180 ,20M

main52714-24030-02iGZ20..HTWC,TWC198901-199004

RED,3H4

main52714-24030-02iGZ20..EFI,TWC198801-198812

RED,3H1

main52714-24030-03iMZ2#..GTL;MZ20..AEC198801-199004

LIGHT GRAY,043 ,24G

main52714-24030-03iMZ2#..GTL;MZ20..AEC198801-199004

LIGHT GRAY,043

main52714-24030-03iMZ2#;GZ20..HTWC,TWC199004-199104

LIGHT GRAY,050

main52714-24030-04iGZ20,MZ20..GT,VX199004-199104

DARK BLUE,8G5

main52714-24030-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main52714-24030-06iGZ20,MZ20..GT,VX199004-199104

DARK BROWN,22R

main52714-24030-07iGZ20,MZ20..GT,VX198801-199004

GREEN,6J7

main52714-24030-13iGZ20,MZ20..GT,VX198801-198901

GRAY,168

main52714-24030-17iMZ2#;GZ20..HTWC,TWC199004-199104

GREEN,23R

main52714-24040-01iGZ20..TWT198901-199104

BLACK,180 ,20M

sub52714-24030

main52714-24040-02iGZ20..TWT198801-198812

RED,3H1

sub52714-24030

main52714-24040-02iGZ20..TWT198901-199004

RED,3H4

sub52714-24030

main52714-24040-03iGZ20..TWT199004-199104

LIGHT GRAY,050

sub52714-24030

main52714-24040-03iGZ20..TWT198801-199004

LIGHT GRAY,043 ,24G

sub52714-24030

main52714-24040-04iGZ20..TWT199004-199104

DARK BLUE,8G5

sub52714-24030

main52714-24040-06iGZ20..TWT199004-199104

DARK BROWN,22R

sub52714-24030

main52714-24040-07iGZ20..TWT198801-199004

GREEN,6J7

sub52714-24030

main52714-24040-13iGZ20..TWT198801-198901

GRAY,168 ,26A

sub52714-24030

main52714-24040-17iGZ20..TWT199004-199104

GREEN,23R

sub52714-24030

5301

9010512123

main90105-12123

9011906159

main90119-06159

9011912062

main90119-12062

9015960175

main90159-60175

9016840079

main90168-40079

9017905025

main90179-05025

9017906009

main90179-06009

9017906054

main90179-06054

9017912056

main90179-12056

9026903003

main90269-03003

904670901901

main90467-0901901

9046709030

main90467-09030

9046804079

main90468-04079

9165540616

main91655-40616

9166540620

main91665-40620

39 parts on this diagram · 1 diagram in section
