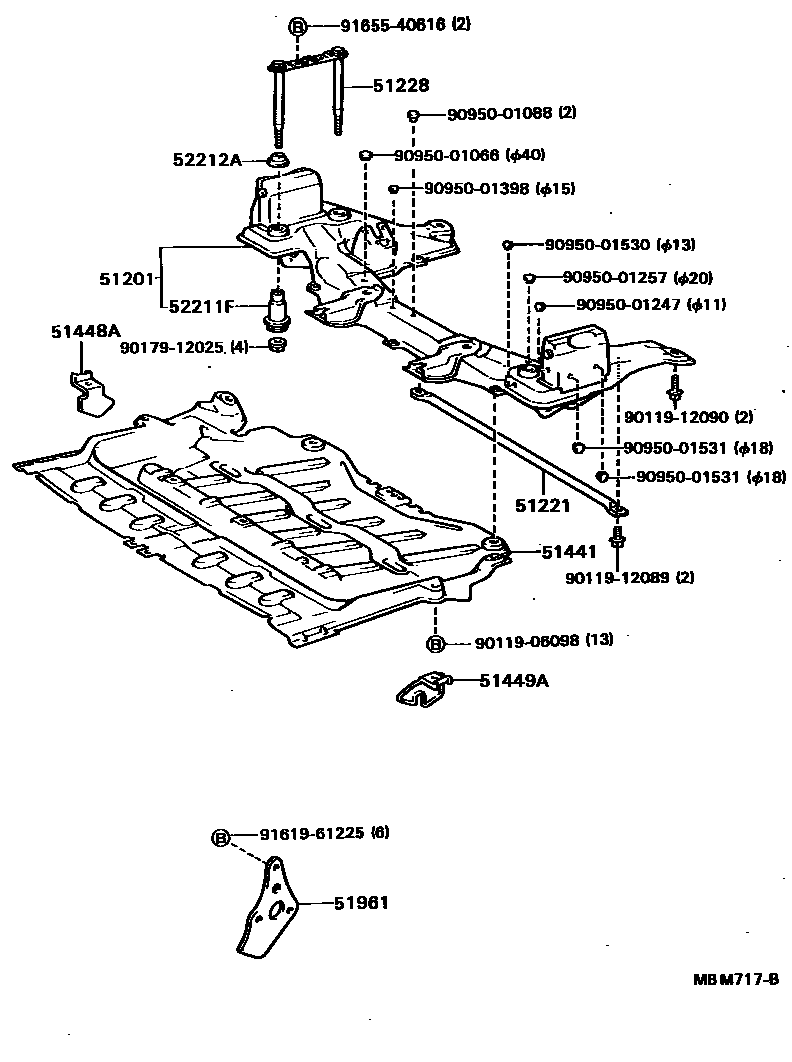

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-14020iGZ20,MZ2#198801-198901

main51210-14021iGZ20,MZ2#198901-199104

51221CROSSMEMBER, FRONT SUSPENSION, NO.1

main51221-14010iGZ20,MZ20198801-199008

sub51221-14012

main51221-14012iGZ20,MZ2#199008-199104

51228PLATE, SUSPENSION MEMBER SET

main51229-14040iGZ20,MZ2#198801-199104

51441COVER, ENGINE UNDER, NO.1

main51441-24020iGZ20,MZ2#198801-199104

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-14010iGZ20..GT,VX198801-199104

51449ACOVER, ENGINE SIDE UNDER, LH

main51449-14010iMZ2#;GZ20..GT,VX198801-199104

51961HOOK, NO.1

main51963-14100iGZ20,MZ2#198801-199104

52211FCUSHION, BODY MOUNTING, FRONT UPPER

main52211-14010iGZ20,MZ2#198801-199104

52212ACUSHION, BODY MOUNTING, NO.2

main52212-14010iGZ20,MZ2#198801-199104

9011906098

main90119-06098

9011912089

main90119-12089

9011912090

main90119-12090

9017912025

main90179-12025

9095001066

main90950-01066

9095001088

main90950-01088

9095001247

main90950-01247

9095001257

main90950-01257

9095001398

main90950-01398

9095001530

main90950-01530

9095001531

main90950-01531

9161961225

main91619-61225

9165540616

main91655-40616

22 parts on this diagram · 2 diagrams in section
