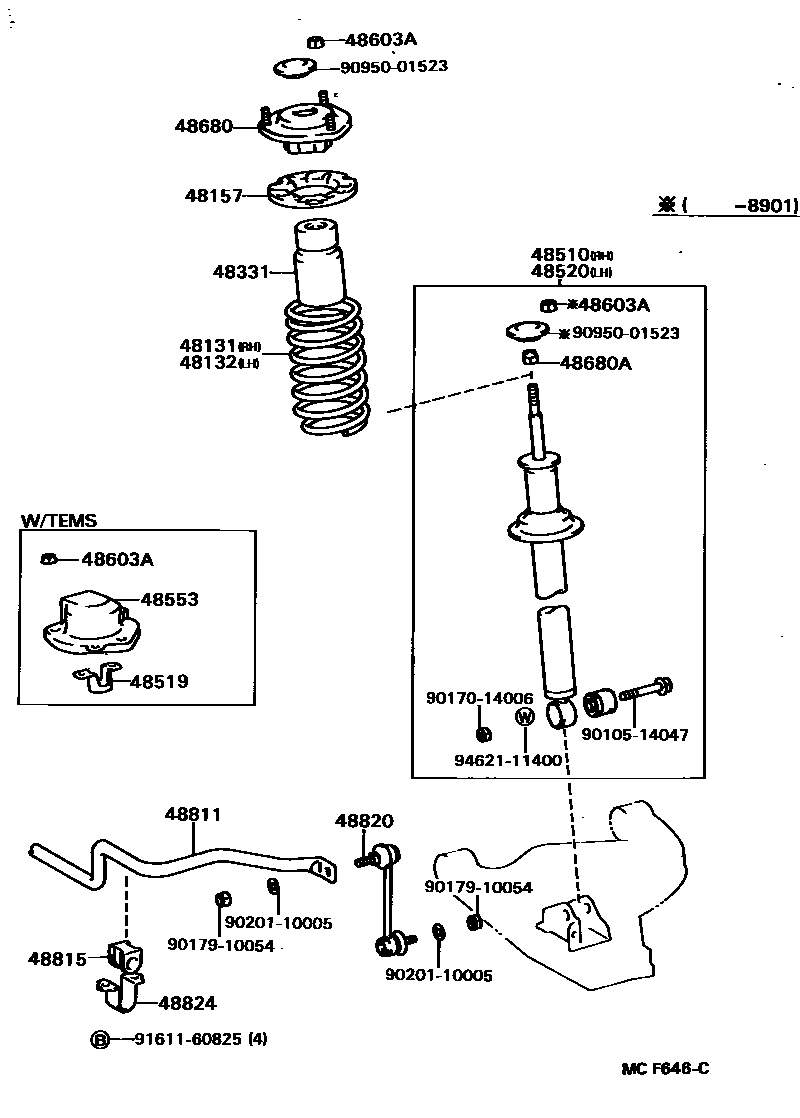

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-24210iGZ20..GT,VX198801-199104

main48131-24230iMZ20..CP..GT198801-199104

main48131-24240iMZ20..GTL198801-199104

sub48131-24230

main48131-24260iGZ20..GTL198801-199104

sub48131-24230

main48131-24280iGZ20..GTT198801-199104

main48131-24290iMZ20..AEC198904-198905

sub48131-1B881

48132SPRING, FRONT COIL, LH

main48131-24200iGZ20..GT,VX198801-199104

sub48131-24210

main48131-24220iMZ20..CP..GT198801-199104

sub48131-24230

main48131-24230iMZ20..GTL198801-199104

main48131-24250iGZ20..GTL198801-199104

main48131-24270iGZ20..GTT198801-199104

sub48131-24280

main48131-24300iMZ20..AEC198904-198905

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-14020iGZ20,MZ20198801-199104

48331BUMPER, FRONT SPRING, NO.1

main48331-14060iGZ20,MZ20198801-199008

sub48331-14070

main48331-14070iGZ20,MZ20199008-199104

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29015iGZ20..GTT,VX198801-198904

sub48510-29016

main48510-29016iGZ20..GTT,VX198904-199104

main48510-29025iGZ20..TWC198801-198904

sub48510-29026

main48510-29026iGZ20..TWC198904-199104

main48510-29036iMZ20..CP198904-199104

main48510-29045iMZ20198801-198904

sub48510-29036

main48510-29075iMZ20..AEC198904-198905

sub48510-29016

48519BRACKET, ACTUATOR SUPPORT, FRONT

main48519-14010iGZ20,MZ20..CP..(GT,GTL)198801-199104

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-29015iGZ20..GTT,VX198801-198904

sub48510-29016

main48510-29016iGZ20..GTT,VX198904-199104

main48510-29025iGZ20..TWC198801-198904

sub48510-29026

main48510-29026iGZ20..TWC198904-199104

main48510-29035iGZ20,MZ20..(GT,GTL)..TWT198801-198904

sub48510-29036

main48510-29036iMZ20..CP198904-199104

main48510-29075iMZ20..AEC198904-198905

sub48510-29016

48553CAP, SHOCK ABSORBER, UPPER

main48553-14040iGZ20..GTL198801-199104

main48553-24030iMZ2#..CP;GZ20..TWC198801-199104

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10016iMZ20..AEC;GZ20..GTT,VX198801-199104

sub90179-10132

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-14041iGZ20,MZ20198801-199104

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94187-11200iGZ20,MZ20198801-199104

sub90177-12002

48811BAR, STABILIZER, FRONT

main48811-14291iGZ20..GT,VX198801-199104

main48811-24041iGZ20..GTT;MZ20..AEC198801-199104

main48811-24050iGZ20,MZ20..CP..(GT,GTL)..TWT198801-199104

main48811-24060iMZ21198801-199104

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14040iGZ20..GT,VX198801-199104

main48815-24030iGZ20,MZ20..TWT198801-199104

main48815-24040iMZ21198801-199104

48820LINK ASSY, FRONT STABILIZER

main48820-14011iGZ20,MZ2#198801-199104

sub48820-24010

48824BRACKET, STABILIZER, FRONT

main48824-14060iGZ20,MZ2#198801-199104

9010514047

main90105-14047

9017014006

main90170-14006

9017910054

main90179-10054

9020110005

main90201-10005

9095001523

main90950-01523

9161160825

main91611-60825

9462111400

main94621-11400

22 parts on this diagram · 2 diagrams in section
