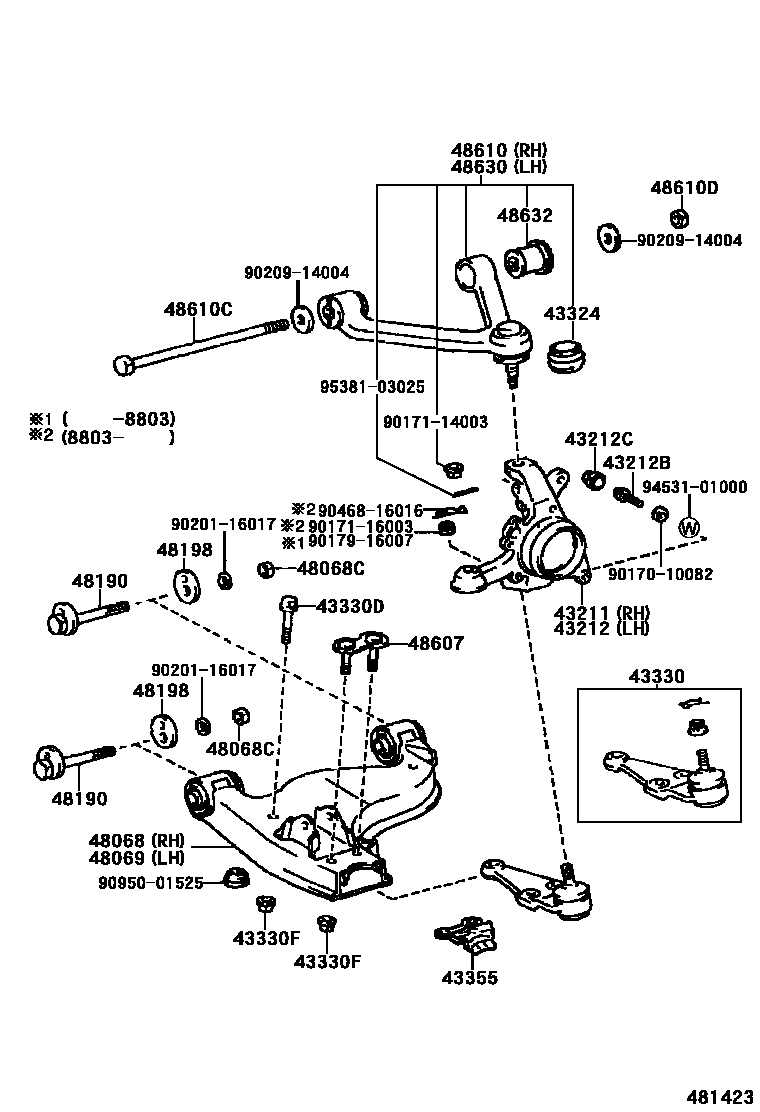

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43212BBOLT (FOR FRONT KNUCKLE STOPPER)
43212CCOVER, FRONT KNUCKLE STOPPER
43324COVER, UPPER JOINT DUST
43330DBOLT (FOR FRONT LOWER BALL JOINT)
43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)
43355DEFLECTOR, LOWER ARM ICE, RH
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
sub94130-01602
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48190CAM ASSY, CAMBER ADJUST
48198CAM, CAMBER ADJUST, NO.2
48607PLATE SUB-ASSY, LOWER ARM ATTACHMENT
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48610CBOLT(FOR SUSPENSION UPPER ARM)
48610DNUT(FOR SUSPENSION UPPER ARM)
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48632BUSH, UPPER ARM
9017010082
main90170-10082
9017114003
main90171-14003
9017116003
main90171-16003
9017916007
main90179-16007
9020116017
main90201-16017
9020914004
main90209-14004
9046816016
main90468-16016
9095001525
main90950-01525
9453101000
main94531-01000
9538103025
main95381-03025
30 parts on this diagram · 1 diagram in section
