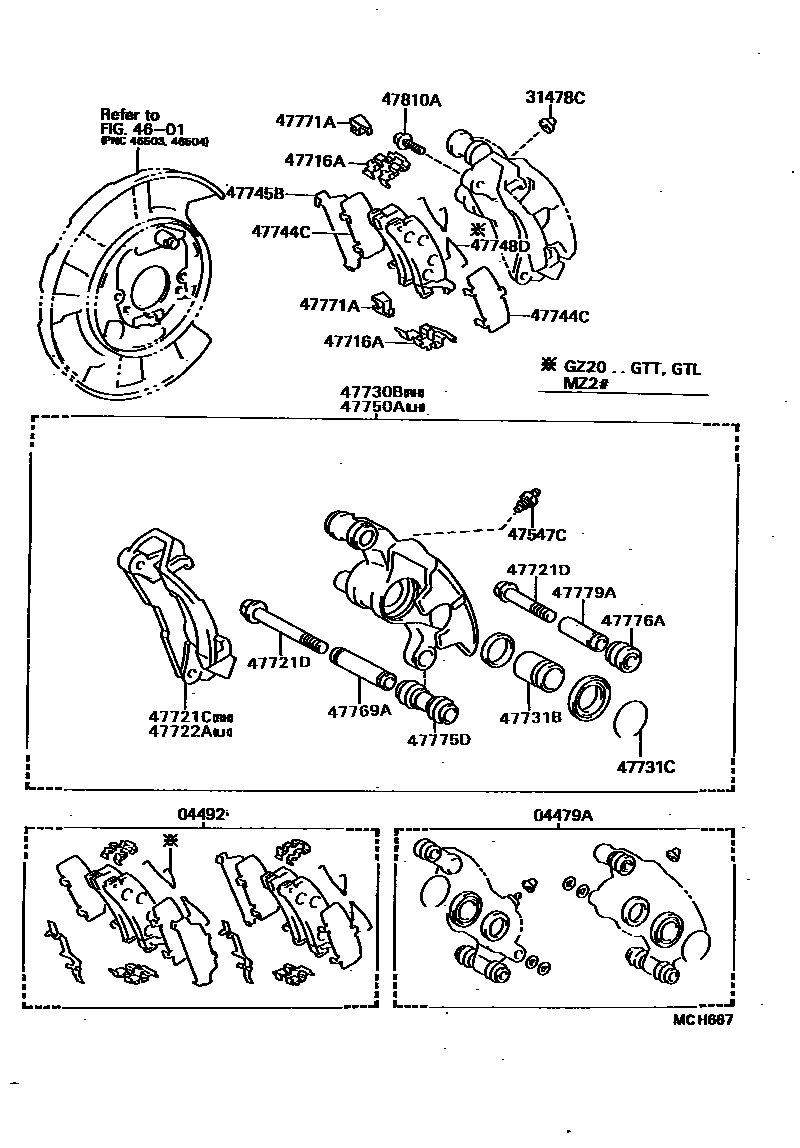

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-14110iGZ20,MZ2#198801-199104

04492PAD KIT, DISC BRAKE, REAR

main04492-14081iGZ20..GT,VX198801-198909

sub04492-14130

main04492-14100iGZ20,MZ2#..TWT198801-198909

sub04466-22110

main04492-14120iGZ20,MZ2#..TWT198909-199104

sub04466-14010

main04492-14130iGZ20..HTWC,TWC198909-199104

sub04466-30010

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGZ20,MZ2#198801-199104

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGZ20,MZ2#198801-199104

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-14130iGZ20..GT,VX198801-199104

main47716-14140iGZ20,MZ2#..TWT198801-199104

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-14120iGZ20..GT,VX198801-199104

main47721-14130iGZ20,MZ2#..TWT198801-199007

main47721-14160iGZ20,MZ2#..TWT199007-199104

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08117iGZ20,MZ2#198801-199104

main90119-08431iGZ20,MZ2#198801-199104

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-14120iGZ20..GT,VX198801-199104

main47721-14130iGZ20,MZ2#..TWT198801-199007

main47721-14160iGZ20,MZ2#..TWT199007-199104

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-14180iGZ20..GT,VX198801-199104

main47730-14190iGZ20,MZ2#..TWT198801-199007

main47730-14230iGZ20,MZ2#..TWT199007-199104

47731BPISTON, REAR DISC BRAKE

main47731-14100iGZ20,MZ2#198801-199104

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-49001iGZ20,MZ2#198801-199104

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-22091iGZ20,MZ2#198801-199104

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-22051iGZ20,MZ2#198801-199104

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-14070iGZ20,MZ2#..TWT198801-199104

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-14200iGZ20..GT,VX198801-199104

main47750-14210iGZ20,MZ2#..TWT198801-199007

main47750-14240iGZ20,MZ2#..TWT199008-199104

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iGZ20,MZ2#198801-199104

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22040iGZ20,MZ2#198801-199104

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iGZ20,MZ2#198801-199104

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-14030iGZ20,MZ2#198801-199104

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-14010iGZ20,MZ2#198801-199104

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10402iGZ20,MZ2#198801-199104

22 parts on this diagram · 2 diagrams in section
