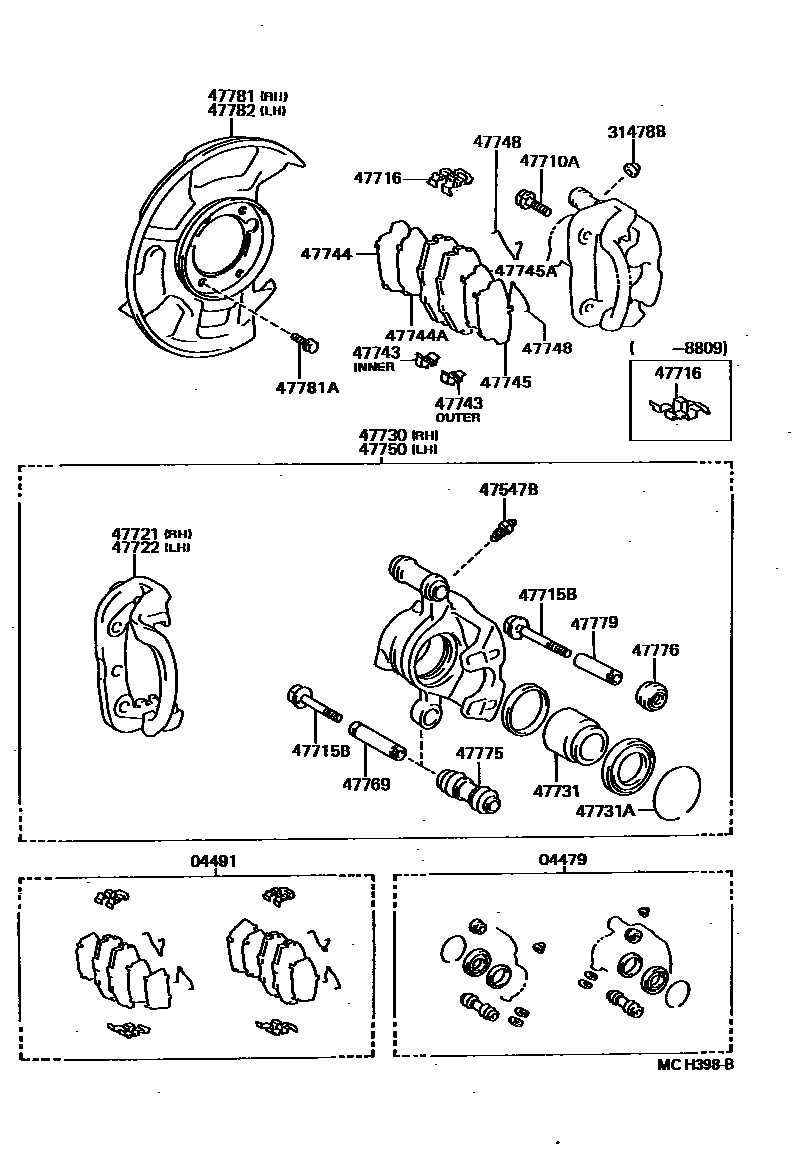

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14100iGZ20,MZ2#198801-199104

04491PAD KIT, DISC BRAKE, FRONT

main04491-14201iGZ20,MZ2#..TWT198801-198803

sub04465-14360

main04491-14221iGZ20..EFI,TWC198801-198803

sub04465-14360

main04491-14240iGZ20..TWT198803-198809

sub04491-14271

main04491-14250iGZ20..EFI,TWC198803-198811

sub04491-14251

main04491-14251iGZ20..GT,VX198811-199104

sub04465-14340

main04491-14270iGZ20,MZ2#..TWT198809-198811

sub04491-14271

main04491-14271iGZ20..TWT198811-199007

sub04491-14272

main04491-14280iGZ20..TWT199007-199104

sub04491-24050

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGZ20,MZ2#198801-199104

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iGZ20,MZ2#198801-199104

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iGZ20,MZ2#198801-199104

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-10141iGZ20,MZ2#198801-199104

main90119-10403iGZ20,MZ2#198801-199104

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14110iGZ20..GT,VX198801-199104

main47716-14120iGZ20,MZ2#..TWT198801-199104

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14090iGZ20..GT,VX198801-199104

main47721-14100iGZ20,MZ2#..TWT198801-199007

main47721-14140iGZ20,MZ2#..TWT199007-199104

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-14090iGZ20..GT,VX198801-199104

main47721-14100iGZ20,MZ2#..TWT198801-199007

main47721-14140iGZ20,MZ2#..TWT199007-199104

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14160iGZ20..GT,VX198801-199104

main47730-14170iGZ20,MZ2#..TWT198801-199007

main47730-14210iGZ20,MZ2#..TWT199007-199104

47731PISTON, FRONT DISC BRAKE

main47731-28020iGZ20,MZ2#198801-199104

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001iGZ20,MZ2#198801-199104

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-24010iGZ20,MZ2#198809-199104

main47748-24010iGZ20,MZ2#198809-199104

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-14050iGZ20,MZ2#198801-199104

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-14120iGZ20,MZ2#198801-199104

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-24010iGZ20,MZ2#198811-199104

main47745-14050iGZ20,MZ2#198801-198811

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-14120iGZ20,MZ2#198801-199104

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14070iGZ20,MZ2#198801-199104

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14170iGZ20,MZ2#..TWT199007-199104

main47750-14180iGZ20..GT,VX198801-199104

main47750-14190iGZ20,MZ2#..TWT198801-199007

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iGZ20,MZ2#198801-199104

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28020iGZ20,MZ2#198801-199104

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-20010iGZ20,MZ2#198801-199104

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-14020iGZ20,MZ2#198801-199104

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-14100iGZ20,MZ2#198801-198908

main47781-14130iGZ20,MZ2#198908-199104

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-08571iGZ20,MZ2#198801-199104

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-14100iGZ20,MZ2#198801-198908

main47782-14130iGZ20,MZ2#198908-199104

26 parts on this diagram · 2 diagrams in section
