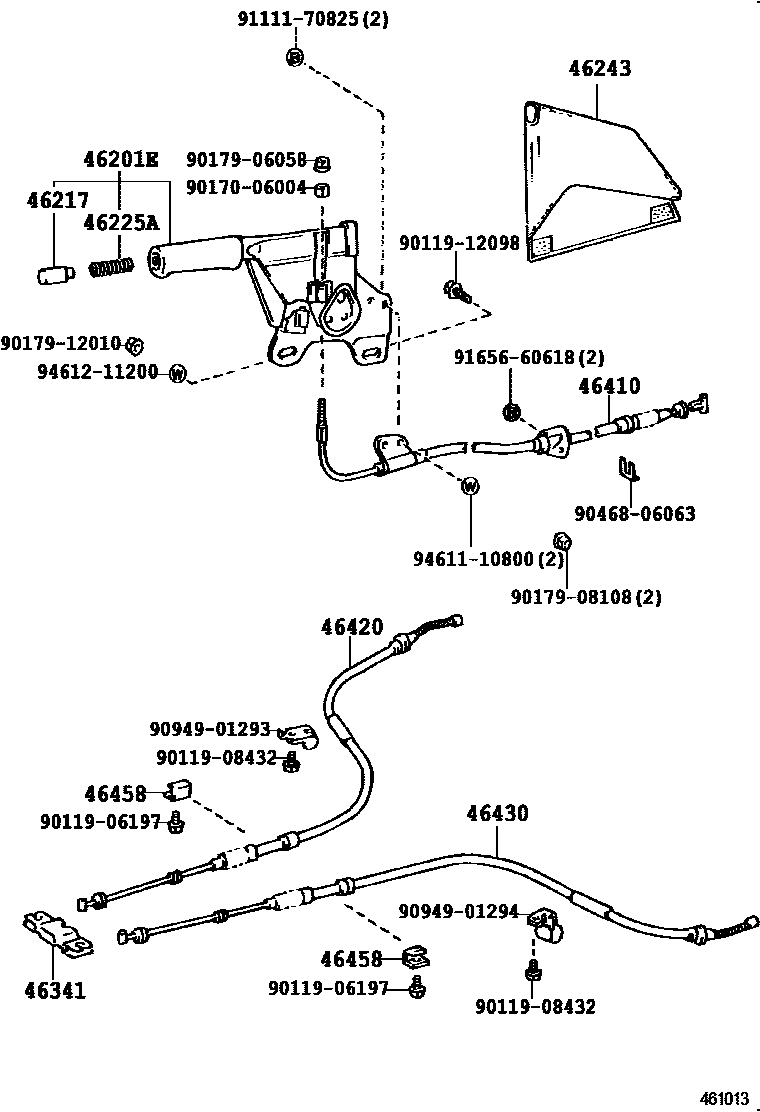

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-24020-01iGZ20;MZ20..GT198801-198802

BLACK,TRIM2#

sub46201-24030¥6,300

main46201-24020-04iGZ20,MZ2#198801-198802

DARK BLUE,TRIM8#

sub46201-24030¥6,300

main46201-24020-15iGZ20,MZ2#198801-198802

GREIGE,TRIM4#

sub46201-24030¥6,300

main46201-24030-01iGZ20;MZ20..CP..GT198802-199104

BLACK,TRIM2#

sub46201-24030¥6,300

main46201-24030-04iGZ20,MZ2#..CP198802-199104

DARK BLUE,TRIM8#

sub46201-24030¥6,300

main46201-24030-15iGZ20,MZ2#198802-199104

GREIGE,TRIM4#

sub46201-24030¥6,300

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-11iGZ20;MZ20..CP..GT198802-199104

BLACK,TRIM2#

sub46217-12020¥230

sub46217-16030¥240

main46217-12020-24iGZ20,MZ2#..CP198802-199104

DARK BLUE,TRIM8#

sub46217-12020¥230

sub46217-16030¥240

main46217-12020-25iGZ20,MZ2#198802-199104

GREIGE,TRIM4#

sub46217-12020¥230

sub46217-16030¥240

main46217-20020-11iGZ20;MZ20..GT198801-198802

BLACK,TRIM2#

sub46217-20020¥300

main46217-20020-25iGZ20,MZ2#198801-198802

GREIGE,TRIM4#

sub46217-20020¥300

main46217-20020-30iGZ20,MZ2#198801-198802

DARK BLUE,TRIM8#

sub46217-20020¥300

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iGZ20,MZ2#¥160198801-199104

46243COVER, PARKING BRAKE LEVER

main46243-24010-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main46243-24010-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main46243-24010-15iGZ20,MZ2#198801-199104

GREIGE,TRIM4#

46341EQUALIZER, PARKING BRAKE

main46341-12010iGZ20,MZ2#¥320198801-199104

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-14070iGZ20,MZ2#¥22,000198801-199104

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-24030iGZ20,MZ2#¥4,540198801-199104

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-24030iGZ20,MZ2#¥4,540198801-199104

46458RETAINER, CABLE

main46458-20020iGZ20,MZ2#¥270198801-198906

sub46458-50010¥340

main46458-50010iGZ20,MZ2#¥340198906-199104

9011906197

main90119-06197¥50

9011908432

main90119-08432¥520

9011912098

main90119-12098¥260

9017006004

main90170-06004¥130

9017906058

main90179-06058¥130

9017908108

main90179-08108¥160

9017912010

main90179-12010¥190

9046806063

main90468-06063¥90

9094901293

main90949-01293¥390

9094901294

main90949-01294¥390

9111170825

main91111-70825¥180

9165660618

main91656-60618¥140

9461110800

main94611-10800¥80

9461211200

main94612-11200¥100

23 parts on this diagram · 2 diagrams in section
