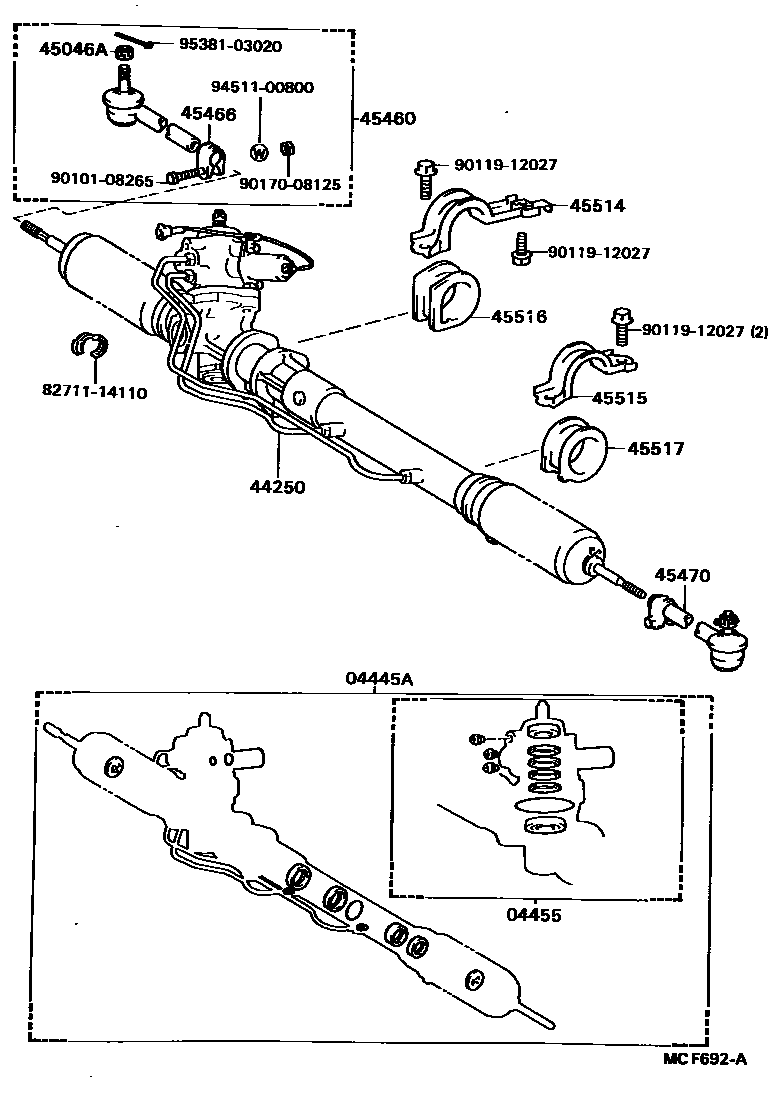

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-24020iMZ2#¥6,300198801-199104

main04445-24030iGZ20..GT,GTT,VX¥6,300198801-199104

main04445-24040iGZ20..GTL¥6,300198801-199104

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-24020iMZ2#¥3,130198801-199104

main04455-24030iGZ20..GT,GTT,VX¥3,130198801-199104

main04455-24051iGZ20..GTL¥3,100198801-199104

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-14150iMZ2#¥136,000198801-199104

main44250-24050iGZ20..GT,GTT,VX¥126,000198801-199104

main44250-24070iGZ20..GTL¥136,000198801-199104

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iGZ20,MZ2#¥130198801-199104

45460ROD ASSY, TIE, RH

main45460-19225iMZ2#¥3,830198801-199104

45466CLAMP, TIE ROD END

main45466-22010iGZ20,MZ2#¥300198801-199104

45470ROD ASSY, TIE, LH

main45460-19225iMZ2#¥3,830198801-199104

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-14050iGZ20,MZ2#¥1,630198801-199104

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-14070iGZ20,MZ2#¥820198801-199104

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-14010iGZ20,MZ2#¥880198801-198904

sub45516-14020¥880

main45516-14020iGZ20,MZ2#¥880198904-199008

sub45516-14021¥870

main45516-14021iGZ20,MZ2#¥870199008-199104

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-14030iGZ20¥870198801-199104

main45517-24020iMZ2#¥730198801-199104

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110¥170

9010108265

main90101-08265¥440

9011912027

main90119-12027¥190

9017008125

main90170-08125¥320

9451100800

main94511-00800¥100

9538103020

main95381-03020¥90

17 parts on this diagram · 4 diagrams in section
