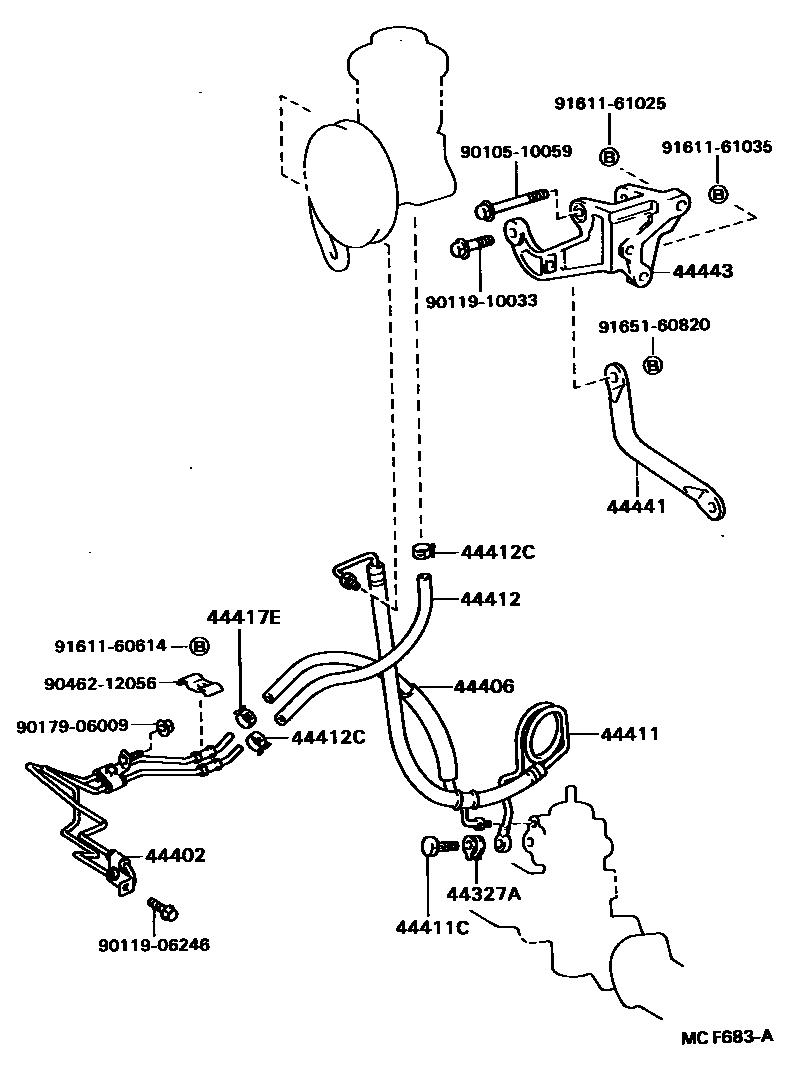

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iGZ20..GT,GTT,VX198801-199104

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-24050iGZ20..GTL198801-199104

main44402-24060iGZ20..GT,GTT,VX198801-199104

main44402-24070iMZ2#198801-199104

44406TUBE SUB-ASSY, RETURN

main44406-14050iGZ20..GT,GTT,VX198801-199104

main44406-24030iGZ20,MZ2#..(GT,GTL)..TWT198801-199104

44411HOSE, PRESSURE FEED

main44411-14170iGZ20..EFI198801-198901

main44411-14180iGZ20..HTWC,TWC198801-199104

main44411-14200iGZ20..GTT198801-199104

main44411-24060iMZ2#198801-199104

main44411-24070iGZ20..GTL198801-199104

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16013iGZ20..GT,GTT,VX198801-199104

44412HOSE, RETURN

main44412-14190iGZ20..EFI198801-198901

main44412-14200iGZ20..HTWC,TWC,TWT198801-199104

main44412-14220iMZ2#198801-199104

44412CCLAMP(FOR RETURN HOSE)

main90467-16008iGZ20,MZ2#198801-199104

sub90467-16019

44417ECLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)

main90467-21005iGZ20,MZ2#198801-199104

sub90467-21010

44441BRACKET, PUMP, FRONT

main44441-30050iGZ20..EFI198801-198901

44443BRACKET, PUMP

main44443-14010iMZ2#198801-199104

main44443-22050iGZ20..HTWC,TWC,TWT198801-199104

main44443-30091iGZ20..EFI198801-198901

9010510059

main90105-10059

9011906246

main90119-06246

9011910033

main90119-10033

9017906009

main90179-06009

9046212056

main90462-12056

9161160614

main91611-60614

9161161025

main91611-61025

9161161035

main91611-61035

9165160820

main91651-60820

19 parts on this diagram · 4 diagrams in section
