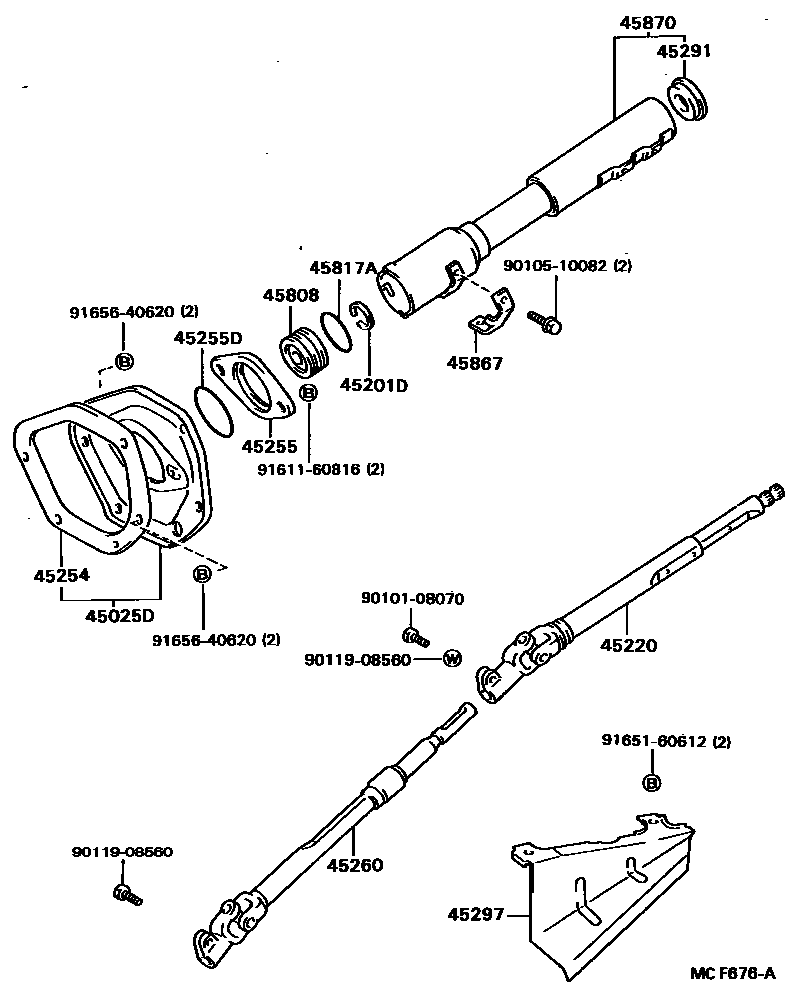

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-14150iGZ20,MZ2#198801-199104

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iMZ20..AEC;GZ20..GTT,VX198801-199104

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-14180iMZ20..AEC;GZ20..GTT,VX198801-199104

main45220-24040iGZ20,MZ2#..CP..(GT,GTL)198801-199104

45254SHIELD, STEERING COLUMN HOLE

main45254-14050iGZ20,MZ2#198801-199104

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12030iGZ20,MZ2#198801-199104

45255DRING, O(FOR STEERING COLUMN HOLE COVER PLATE)

main90301-59001iGZ20,MZ2#198801-199104

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-14240iGZ20..GT,GTT,VX198801-199104

main45260-14280iGZ20,MZ2#..(GT,GTL)..TWT198801-199104

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iGZ20,MZ2#198801-199104

45297INSULATOR, STEERING YOKE HEAT

main45297-14030iGZ20,MZ2#198801-199009

sub45297-14060

main45297-14060iGZ20,MZ2#199009-199104

45808STOPPER SUB-ASSY, STEERING SHAFT THRUST

main45808-12030iGZ20,MZ2#198801-199104

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iGZ20,MZ2#198801-199104

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iGZ20,MZ2#198801-199104

45870TUBE ASSY, STEERING COLUMN

main45870-24040iGZ20,MZ2#..CP..(GT,GTL)198801-199104

main45870-24050iMZ20..AEC;GZ20..GTT,VX198801-199104

9010108070

main90101-08070

9010510082

main90105-10082

9011908560

main90119-08560

9161160816

main91611-60816

9165160612

main91651-60612

9165640620

main91656-40620

19 parts on this diagram · 4 diagrams in section
