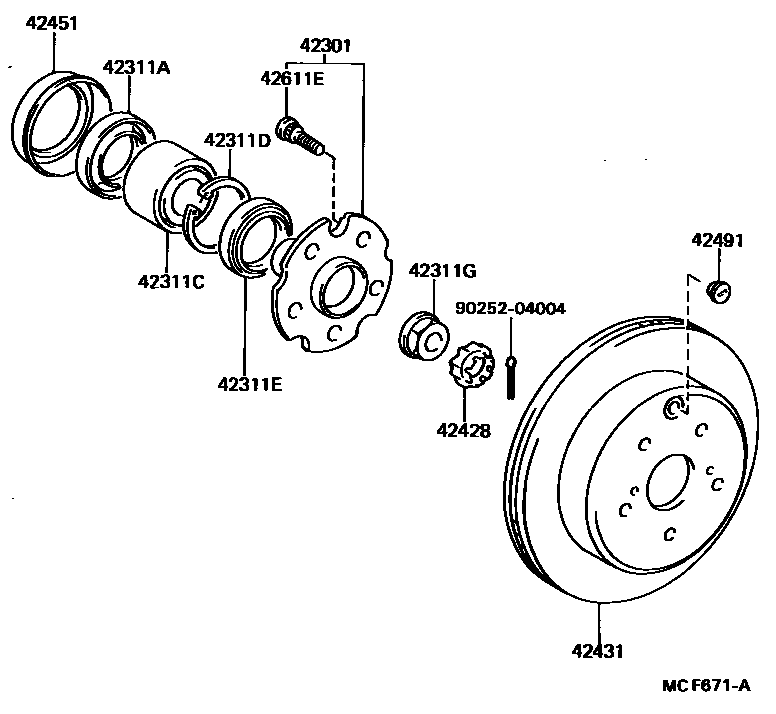

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42301SHAFT SUB-ASSY, REAR AXLE

main42301-14010iGZ20,MZ2#¥16,200198801-199104

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-63001iGZ20,MZ2#¥750198801-199104

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-43005iGZ20,MZ2#¥7,700198801-199104

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-85002iGZ20,MZ2#¥300198801-199104

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90311-57001iGZ20,MZ2#¥580198801-199104

42311GNUT(FOR REAR AXLE SHAFT)

main90179-22015iGZ20,MZ2#¥390198801-198808

main90179-24007iGZ20,MZ2#¥370198808-199104

42428PLATE, REAR AXLE LOCK NUT

main42428-14010iGZ20,MZ2#¥400198801-198808

main42428-22010iGZ20,MZ2#¥400198808-199104

42431DISC, REAR

main42431-14090iGZ20..GT,VX¥11,300198801-199104

main42431-14100iMZ2#¥12,500198801-199104

sub42431-14110¥12,700

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-14010iGZ20,MZ2#¥680198801-199104

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iGZ20,MZ2#¥140198801-199104

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02049iGZ20,MZ2#¥240198801-199104

9025204004

main90252-04004¥90

12 parts on this diagram · 3 diagrams in section
