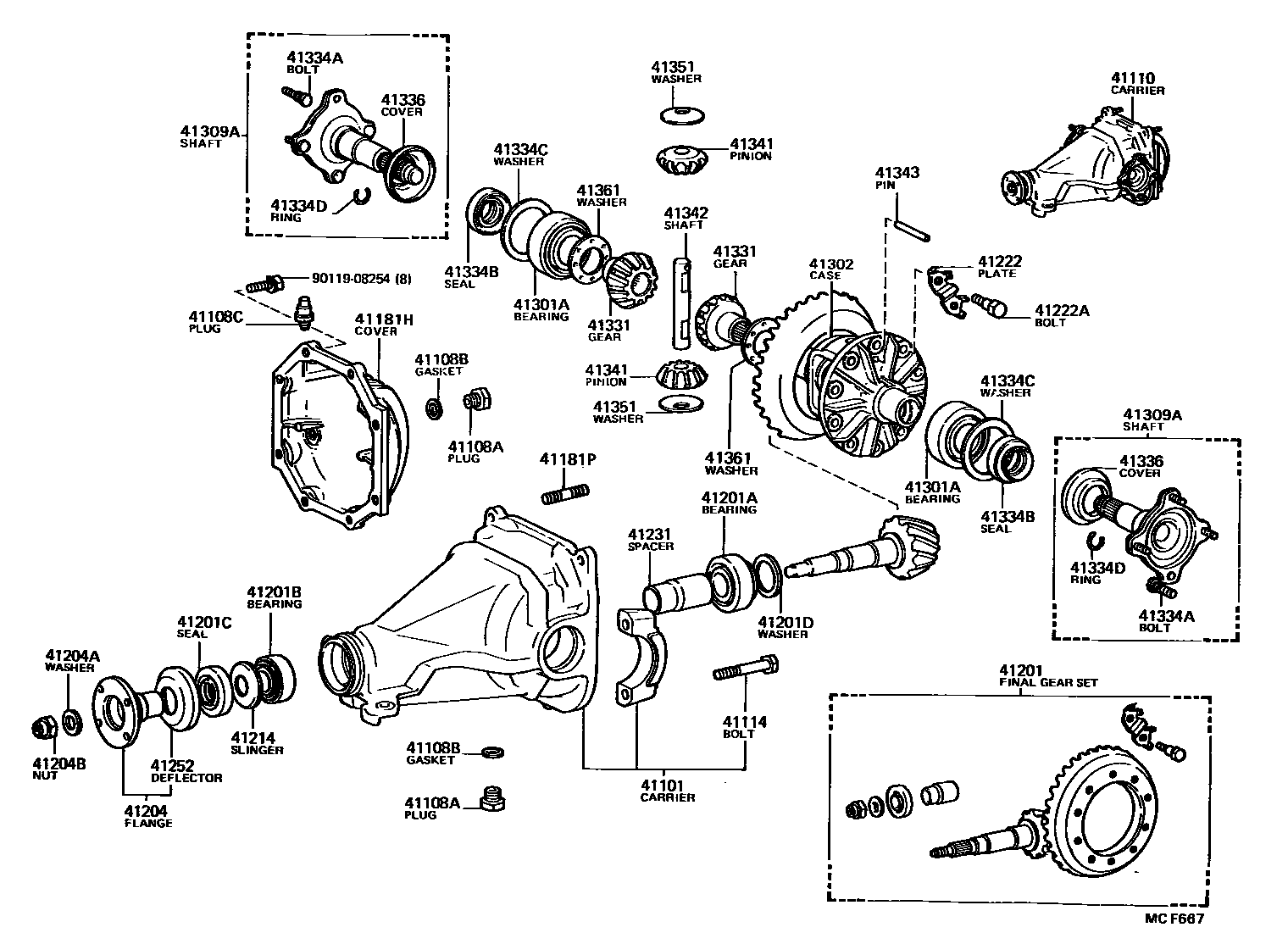

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1LIMITED SLIP DIFFERENTIAL 0003 1 0004 1LIMITED SLIP DIFFERENTIAL

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-14050iGZ20..EFI,TWC198801-199104

main41101-14060iGZ20,MZ2#..TWT198801-198805

sub41101-14H00

main41101-14061iGZ20,MZ2#..TWT198805-199104

41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

main90341-18006iGZ20,MZ2#198801-199104

main90341-18030iGZ20,MZ2#198808-199104

main90341-18057iGZ20,MZ2#198801-198808

41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)

main12157-10010iGZ20,MZ2#198801-199104

41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

main90930-03031iGZ20,MZ2#198801-199104

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14460iMZ2#;GZ20..5F..TWT198801-199104

sub41110-14461

main41110-14470iMZ2#199007-199104

main41110-14470iMZ2#198801-199007

main41110-14510iGZ20..5F..TWT198801-198807

sub41110-14511

main41110-14520iGZ20..5F..TWT198801-199104

main41110-14531iGZ20..4FC..TWT198801-199104

sub41110-14532

main41110-14541iGZ20..4FC..(TWC,TWT)198901-199104

main41110-14541iGZ20..4FC..TWT198801-198901

main41110-14550iGZ20..5F..VX198801-199104

main41110-14660iGZ20..5F..TWT198809-199104

main41110-14670iGZ20..4FC..TWC198901-199104

main41110-24090iGZ20..4FC..HTWC198901-199104

main41110-24190iGZ20..5F..TWC;GZ20..4FC..EFI198801-199104

main41110-24200iGZ20..5F..TWC198801-199104

main41110-24210iGZ20..4FC..TWC198801-198901

main41110-24220iGZ20..4FC..TWC198801-198901

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iGZ20..EFI,TWC198801-198908

main90105-12163iGZ20..HTWC;GZ20..5F..TWC198908-199104

main90105-12164iGZ20,MZ2#..TWT198805-199104

41181HCOVER, REAR DIFFERENTIAL CARRIER

main41181-14040iGZ20..HTWC;GZ20..5F..TWC198801-199104

main41181-14050iGZ20,MZ2#..TWT198801-198805

sub41181-14051

main41181-14051iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198805-199104

41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)

main90116-12013iGZ20,MZ2#198801-199104

L=71.5

main90116-12014iGZ20,MZ2#198801-199104

L=81.5

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-19556iGZ20..4FC..TWT198801-198807

sub41201-19557

main41201-19557iGZ20..4FC..TWC198901-199104

main41201-19557iGZ20..4FC..TWT198807-199104

main41201-29595iMZ2#198801-199104

main41201-29605iGZ20..5F..TWT198801-198807

sub41201-29606

main41201-29606iGZ20..5F..TWT198807-199104

sub41201-80008

main41201-39875iGZ20..4FC..TWC198801-198901

sub41201-39876

main41201-80003iGZ20..5F..VX198801-199104

sub41201-80109

main41201-80004iGZ20..4FC..VX;GZ20..5F..TWC198801-199104

main41201-80009iGZ20..4FC..TWC198901-199104

sub41201-19557

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iGZ20..EFI,TWC198801-199104

main90366-35028iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

sub90366-35087

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iGZ20..EFI,TWC198801-199104

sub90366-30078

main90366-30025iGZ20,MZ2#..TWT198801-199104

sub90366-30067

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iGZ20,MZ2#198801-199104

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-35397iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-35398iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-35399iGZ20..EFI,TWC198801-199104

main90201-35400iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-35401iGZ20..EFI,TWC198801-199104

main90201-35402iGZ20..EFI,TWC198801-199104

main90201-35403iGZ20..EFI,TWC198801-199104

main90201-35404iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-35434iGZ20..HTWC;GZ20..5F..TWC198801-199104

sub90201-35515

main90201-35435iGZ20..HTWC;GZ20..5F..TWC198801-199104

sub90201-35516

main90201-35436iGZ20..EFI,TWC198801-199104

sub90201-35517

main90201-35437iGZ20..HTWC;GZ20..5F..TWC198801-199104

sub90201-35518

main90201-35438iGZ20..EFI,TWC198801-199104

main90201-35439iGZ20..EFI,TWC198801-199104

main90201-35440iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-35441iGZ20..EFI,TWC198801-199104

main90201-35497iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35498iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35499iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35500iGZ20,MZ2#..TWT198801-199104

main90201-35501iGZ20,MZ2#..TWT198801-199104

main90201-35502iGZ20,MZ2#..TWT198801-199104

main90201-35503iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35504iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35505iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35506iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35507iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35508iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35509iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35510iGZ20,MZ2#..TWT198801-199104

main90201-35511iGZ20,MZ2#..TWT198801-199104

main90201-35512iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35513iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35514iGZ20,MZ2#..TWT198801-199104

main90201-35515iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-35516iGZ20,MZ2#..TWT198801-199104

main90201-35517iGZ20,MZ2#..TWT198801-199104

main90201-35518iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iGZ20..5F..VX;GZ20..4FC..HTWC198801-199104

main41204-35040iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-198904

main41204-35041iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198904-199104

main41204-35050iGZ20..5F..TWC;GZ20..4FC..(EFI,TWC)198801-199104

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-20005iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iGZ20..EFI,TWC198801-199104

main90179-20001iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iGZ20,MZ2#..TWT198801-199104

main41214-30021iGZ20..HTWC;GZ20..5F..TWC198801-199104

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-22010iGZ20..5F..TWT;GZ20..4FC..TWC198807-199104

main41222-35020iMZ2#;GZ20..4FC..TWT198807-199104

main41222-35020iGZ20,MZ2#..TWT198801-198807

main41222-35030iGZ20..HTWC;GZ20..5F..TWC198801-199104

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iGZ20,MZ2#198801-199104

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iGZ20..HTWC;GZ20..5F..TWC198801-199104

main41231-24010iGZ20,MZ2#..TWT198801-199104

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iGZ20..EFI,TWC198801-199104

main41252-35010iGZ20,MZ2#..TWT198801-199104

sub41252-35020

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50001iGZ20,MZ2#..TWT198801-199104

main90368-45002iGZ20..EFI,TWC198801-198806

main90368-50006iGZ20..EFI,TWC198806-199104

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-14020iGZ20..4FC..TWC198801-198803

sub41302-22020

sub90368-50006

main41302-22020iGZ20..4FC..TWC198806-199104

main41302-24010iGZ20,MZ2#..TWT198801-199104

main41302-24020iGZ20..5F..TWT198801-199104

main41311-22050iGZ20..EFI,TWC198801-198803

sub41311-22060

sub90368-50006

main41311-22060iGZ20..EFI,TWC198806-199104

main41311-22080iGZ20..5F..TWT198807-199104

41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR

main41309-14040iGZ20..HTWC;GZ20..5F..TWC198801-199104

main41309-14050iGZ20..5F..TWC198801-199104

main41309-14060iMZ2#;GZ20..4FC..TWT198807-199104

main41309-14060iGZ20,MZ2#..TWT198801-198807

main41309-30020iGZ20..5F..TWT198807-199104

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-14011iGZ20..5F..TWC198801-199104

main41331-22041iGZ20..EFI,TWC198801-199104

sub41331-14040

main41331-22060iGZ20..5F..TWT;GZ20..4FC..TWC198807-199104

main41331-24020iMZ2#;GZ20..4FC..TWT198807-199104

main41331-24020iGZ20,MZ2#..TWT198801-198807

41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-10028iGZ20..EFI,TWC198801-199104

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-38011iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90311-43001iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

sub90311-43009

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-52001iGZ20,MZ2#..TWT198801-199104

main90201-52002iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52003iGZ20,MZ2#..TWT198801-199104

main90201-52004iGZ20,MZ2#..TWT198801-199104

main90201-52005iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52006iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52007iGZ20,MZ2#..TWT198801-199104

main90201-52008iGZ20,MZ2#..TWT198801-199104

main90201-52009iGZ20,MZ2#..TWT198801-199104

main90201-52010iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52011iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52012iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52013iGZ20,MZ2#..TWT198801-199104

main90201-52014iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52015iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52016iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52017iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52018iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52019iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52020iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52021iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52022iGZ20,MZ2#..TWT198801-199104

main90201-52023iGZ20,MZ2#..TWT198801-199104

main90201-52024iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52025iGZ20,MZ2#..TWT198801-199104

main90201-52026iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52027iGZ20,MZ2#..TWT198801-199104

main90201-52028iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52029iGZ20,MZ2#..TWT198801-199104

main90201-52030iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-52031iMZ2#;GZ20..5F..TWT;GZ20..4FC..(TWC,TWT)198801-199104

main90201-65007iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65008iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65009iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65010iGZ20..EFI,TWC198801-199104

main90201-65011iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65012iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65013iGZ20..EFI,TWC198801-199104

main90201-65014iGZ20..EFI,TWC198801-199104

main90201-65015iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65016iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65017iGZ20..EFI,TWC198801-199104

main90201-65018iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65019iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65020iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65021iGZ20..EFI,TWC198801-199104

main90201-65022iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65023iGZ20..EFI,TWC198801-199104

main90201-65024iGZ20..EFI,TWC198801-199104

main90201-65025iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65026iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90201-65027iGZ20..EFI,TWC198801-199104

main90201-65028iGZ20..EFI,TWC198801-199104

main90201-65029iGZ20..EFI,TWC198801-199104

41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iGZ20..HTWC;GZ20..5F..TWC198801-199104

main90521-34003iGZ20,MZ2#..TWT198801-199104

41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iGZ20..EFI,TWC198801-199104

main41336-24010iGZ20,MZ2#..TWT198801-199104

41341PINION, REAR DIFFERENTIAL

main41341-14031iGZ20..4FC..TWC198801-199104

main41341-30020iGZ20..EFI,TWC198801-199104

sub41341-30050

main41341-30040iGZ20..5F..TWT;GZ20..4FC..TWC198807-199104

main41341-35010iGZ20..5F..TWT198807-199104

sub41341-14041

main41341-35010iGZ20,MZ2#..TWT198801-198807

sub41341-14041

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iGZ20..HTWC;GZ20..5F..TWC198801-199104

sub41342-22021

main41342-22030iGZ20..5F..TWT198807-199104

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iGZ20..GT,VX;GZ20..5F..TWT198801-199104

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iGZ20..5F..TWT198807-199104

main41351-30060iGZ20..5F..TWT198807-199104

main41351-30060iGZ20,MZ2#..TWT198801-198901

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iMZ2#;GZ20..4FC..TWT198801-199104

sub41361-60E10

main41361-24020iMZ2#;GZ20..4FC..TWT198801-199104

sub41361-60E50

main41361-24030iMZ2#;GZ20..4FC..TWT198801-199104

sub41361-60E90

main41361-24040iMZ2#;GZ20..4FC..TWT198801-199104

sub41361-60F30

main41361-24050iMZ2#;GZ20..4FC..TWT198801-199104

sub41361-60F70

main41361-28130iGZ20..TWC198801-199104

main41361-28140iGZ20..5F..TWC198801-199104

main41361-28150iGZ20..5F..TWC198801-199104

main41361-28160iGZ20..5F..TWC198801-199104

main41361-28170iGZ20..5F..TWC198801-199104

main41361-28180iGZ20..5F..TWC198801-199104

main41361-28190iGZ20..5F..TWC198801-199104

main41361-28200iGZ20..5F..TWC198801-199104

main41361-28210iGZ20..TWC198801-199104

main41361-28220iGZ20..5F..TWC198801-199104

main41361-30040iGZ20..EFI,TWC198801-199104

main41361-30050iGZ20..EFI,TWC198801-199104

main41361-30060iGZ20..HTWC;GZ20..5F..TWC198801-199104

main41361-30070iGZ20..EFI,TWC198801-199104

main41361-30080iGZ20..EFI,TWC198801-199104

main41361-30090iGZ20..HTWC;GZ20..5F..TWC198801-199104

main41361-30100iGZ20..EFI,TWC198801-199104

main41361-40021iGZ20..5F..TWT;GZ20..4FC..TWC198807-199104

main41362-40021iGZ20..5F..TWT198807-199104

main41363-40021iGZ20..5F..TWT;GZ20..4FC..TWC198807-199104

9011908254

main90119-08254

36 parts on this diagram · 4 diagrams in section
