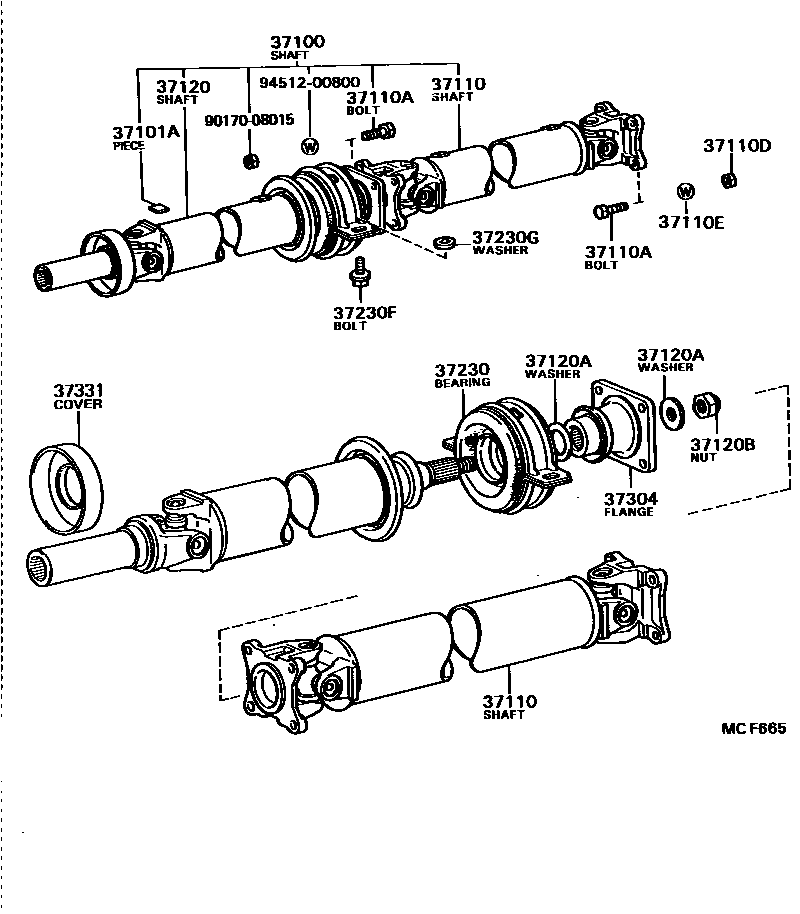

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-24170iGZ20..5F..VX198801-199104

***

main37100-24180iGZ20..4FC..HTWC198901-199104

***

main37100-24230iGZ20..5F..TWC198801-198901

***

main37100-24240iGZ20..4FC..(EFI,TWC)198801-198901

***

main37100-24270iGZ20..5F..TWT198801-198901

***

main37100-24280iMZ2#..5F198801-198901

***

main37100-24290iGZ20,MZ2#..4FC..TWT198801-198901

***

main37100-24300iGZ20..5F..TWC198901-199104

main37100-24310iGZ20..5F..TWT198901-199104

main37100-24320iMZ2#..5F198901-199104

main37100-24330iGZ20..4FC..TWC198901-199104

main37100-24340iGZ20,MZ2#..4FC..TWT198901-199104

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iGZ20,MZ2#198801-199104

main90937-01147iGZ20,MZ2#198801-199104

main90937-01148iGZ20..HTWC198801-199104

main90937-01149iGZ20..HTWC198801-199104

main90937-01150iGZ20..HTWC198801-199104

main90937-01151iGZ20,MZ2#198801-199104

main90937-01152iGZ20..HTWC198801-199104

main90937-01311iGZ20,MZ2#198801-199104

main90937-01312iGZ20..HTWC198801-199104

main90937-01313iGZ20..HTWC198801-199104

main90937-01314iGZ20..HTWC198801-199104

main90937-01338iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01338iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01339iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01339iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01340iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01340iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01342iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01343iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01344iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01345iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01346iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01347iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01348iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01349iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01350iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01351iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01352iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01353iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01354iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01355iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01355iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01356iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01356iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01357iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01357iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01358iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01358iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01359iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01359iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01360iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01360iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01361iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01361iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01362iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01362iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01363iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01363iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01364iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01364iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01365iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01365iGZ20,MZ2#..TWC,TWT198901-199008

main90937-01366iGZ20,MZ2#..TWC,TWT198901-198903

main90937-01385iGZ20,MZ2#..TWC,TWT198903-199008

main90937-01385iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01386iGZ20,MZ2#..TWC,TWT199008-199104

main90937-01386iGZ20,MZ2#..TWC,TWT198903-199008

37110SHAFT ASSY, PROPELLER

main37110-14170iGZ20..5F..TWC;GZ20..4FC..(EFI,TWC)198801-198901

main37110-24080iGZ20..5F..VX;GZ20..4FC..HTWC198801-199104

main37110-24110iGZ20..5F..TWC198901-199104

sub37110-24111

main37110-24130iGZ20,MZ2#..TWT198801-198901

main37110-24140iGZ20,MZ2#..TWT198901-199104

main37110-24150iGZ20..4FC..TWC198901-199104

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082iGZ20..5F..VX;GZ20..4FC..HTWC198801-199104

main90105-10085iMZ2#;GZ20..5F..(TWC,TWT);GZ20..4FC..(EFI,TWC,TWT)198801-199104

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015iGZ20..5F..VX;GZ20..4FC..HTWC198801-199104

main90179-10059iMZ2#;GZ20..5F..(TWC,TWT);GZ20..4FC..(EFI,TWC,TWT)198801-199104

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iMZ2#;GZ20..5F..(TWC,TWT);GZ20..4FC..(EFI,TWC,TWT)198801-199104

sub90560-10H00

main94512-00800iGZ20..5F..VX;GZ20..4FC..HTWC198801-199104

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-14260iGZ20..5F..VX198801-199104

main37120-14271iGZ20..4FC..HTWC198901-199104

main37120-14280iGZ20..5F..TWC198801-198901

main37120-24130iGZ20..5F..TWT198801-198901

main37120-24140iMZ2#..5F198801-198901

main37120-24150iGZ20,MZ2#..4FC..TWT198801-198901

main37120-24160iGZ20..4FC..(EFI,TWC)198801-198901

main37120-24180iGZ20..5F..(TWC,TWT)198901-199104

main37120-24190iMZ2#..5F198901-199104

main37120-24200iGZ20,MZ2#..4FC..(TWC,TWT)198901-199104

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iGZ20,MZ2#198801-199104

main90201-25006iGZ20,MZ2#..TWC,TWT198908-199104

main90201-26005iGZ20..HTWC198801-199104

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iGZ20,MZ2#198801-199104

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-14061iGZ20..5F..VX;GZ20..4FC..HTWC198801-199104

main37230-14070iMZ2#;GZ20..4FC;GZ20..5F..(TWC,TWT)198801-198901

main37230-24060iGZ20,MZ2#..TWC,TWT198901-199008

sub37230-24061

main37230-24061iGZ20,MZ2#..TWC,TWT199008-199104

sub37230-24051

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10217iGZ20,MZ2#198801-199104

main90119-10482iGZ20,MZ2#198801-199104

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008iGZ20,MZ2#198801-199104

main90201-10017iGZ20,MZ2#198801-199104

main90201-10033iGZ20,MZ2#198801-199104

main90201-10034iGZ20,MZ2#198801-199104

main90201-10035iGZ20,MZ2#198801-199104

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-22013iGZ20..5F..VX;GZ20..4FC..HTWC198801-199104

sub37304-28010

main37304-35041iGZ20,MZ2#..TWC,TWT198801-199104

37331COVER, SLIDING SHAFT DUST

main37331-24010iMZ2#;GZ20..4FC..TWT198801-199104

main37331-30010iGZ20..EFI,TWC;GZ20..5F..TWT198801-199104

9017008015

main90170-08015

9451200800

main94512-00800

16 parts on this diagram · 3 diagrams in section
