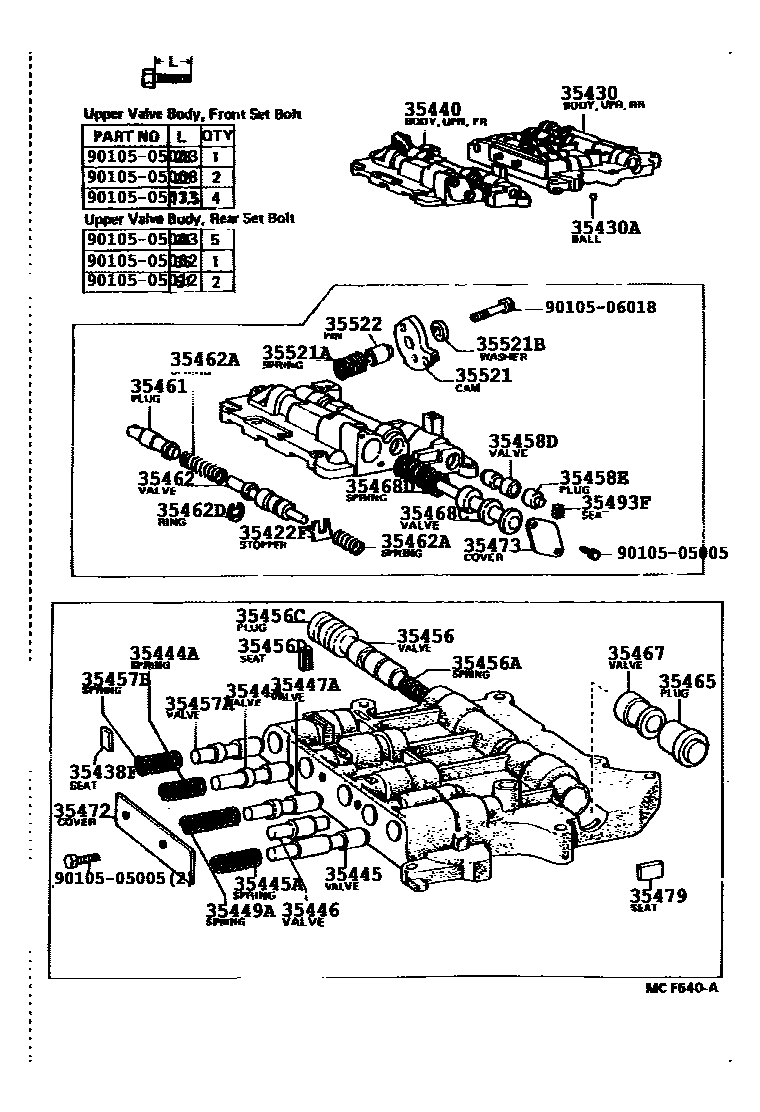

VALVE BODY & OIL STRAINER (ATM)
35422FSTOPPER, VALVE VIBRATING
35430BODY ASSY, REAR UPPER VALVE
35438FSEAT, DETENT SPRING
35440BODY ASSY, FRONT UPPER VALVE
35444VALVE, INTERMEDIATE MODULATOR
35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
LOW COAST VALVE
INTER MEDIATE VALVE
35445VALVE, LOW MODULATOR
35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35446VALVE, GOVERNOR MODULATOR
35447AVALVE, REVERSE CLUTCH SEQUENCE
35449VALVE, SEQUENCE
35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)
LWR VALVE BODY
UPR VALVE BODY
35456VALVE, 2-3 SHIFT
35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456CPLUG (FOR 2-3 SHIFT VALVE)
35456DSEAT (FOR 2-3 SHIFT VALVE)
35457AVALVE, DETENT REGULATOR
35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)
35458DVALVE, CUT BACK
35458EPLUG (FOR CUT BACK VALVE)
35461PLUG, DOWN SHIFT
35462VALVE, THROTTLE
35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)
35462DRING, E (FOR THROTTLE VALVE)
35465PLUG, INTERMEDIATE SHIFT VALVE
35467VALVE, INTERMEDIATE SHIFT
35468CVALVE, SECONDARY REGULATOR
35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35472COVER, VALVE BODY, NO.2
35473COVER, TRANSMISSION VALVE BODY
35479SEAT, INTERMEDIATE SHIFT VALVE
35493SEAT, SHIFT VALVE SPRING
35493FSEAT, SHIFT VALVE PLUG
35521CAM, THROTTLE VALVE
35521ASPRING (FOR THROTTLE VALVE CAM RETURN)
35521BWASHER (FOR THROTTLE VALVE CAM SET)
35522PIN, THROTTLE VALVE CAM
9010505002
main90105-05002
9010505003
main90105-05003
9010505005
main90105-05005
9010505008
main90105-05008
9010505012
main90105-05012
9010505033
main90105-05033
9010506018
main90105-06018
45 parts on this diagram · 10 diagrams in section
