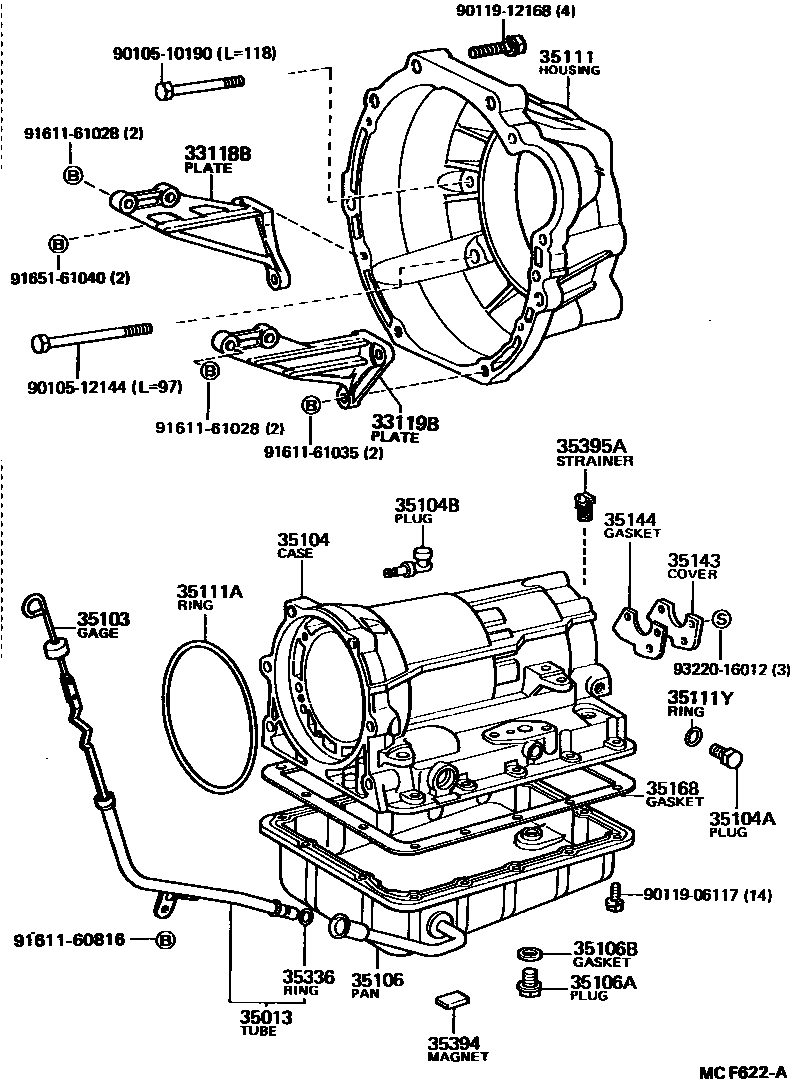

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A42DL,A42DE 0002 1A340E 0003 1A340E

33118BPLATE, STIFFENER, RH(ATM)

main33118-14050iMZ2#..4FC198801-198901

main33118-14051iMZ2#..4FC198901-199104

main33118-22051iGZ20..4FC198801-199104

33119BPLATE, STIFFENER, LH(ATM)

main33119-22030iMZ2#..4FC198801-199104

main33119-22042iGZ20..4FC198801-199104

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-24030iGZ20..4FC..TWT198801-199104

main35013-30220iGZ20..4FC..(GT,VX)198801-199104

main35013-30230iMZ2#..4FC198801-199104

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-22140iGZ20..4FC..TWT198808-199104

main35103-24020iGZ20..4FC..TWT198801-198808

main35103-30250iGZ20..4FC..(EFI,TWC)198801-198901

main35103-30260iGZ20..4FC..TWC198901-199104

main35103-30270iMZ2#..4FC198801-199104

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26021iGZ20..4FC..VX198801-199104

main35104-30101iGZ20..4FC..TWC198801-198901

main35104-30133iGZ20,MZ2#..4FC..(TWC,TWT)198901-199104

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGZ20,MZ2#..4FC198801-199104

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iGZ20,MZ2#..4FC198801-199104

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30050iGZ20..4FC..HTWC198901-198911

main35106-30051iGZ20..4FC..HTWC198911-199104

main35106-30100iGZ20,MZ2#..4FC..TWT198801-198901

main35106-30101iGZ20,MZ2#..4FC..(TWC,TWT)198911-199104

sub35106-30170

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGZ20,MZ2#..4FC198801-199104

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGZ20,MZ2#..4FC198801-199104

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-24010iGZ20..4FC..(EFI,TWC)198801-198901

main35111-24021iMZ2#..4FC198801-199104

main35111-24031iGZ20..4FC..TWT198801-198901

sub35111-22100

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iGZ20..4FC..(EFI,TWC)198801-198901

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGZ20,MZ2#..4FC198801-199104

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGZ20..4FC..(EFI,TWC)198801-198901

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iGZ20..4FC..(EFI,TWC)198801-198901

main35144-28010iGZ20..4FC..HTWC199012-199104

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGZ20..4FC..(EFI,TWC)198801-198901

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGZ20,MZ2#..4FC198801-199104

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iGZ20..4FC..TWT198801-198901

35395ASTRAINER, GOVERNOR OIL

main35395-40010iGZ20..4FC..VX198801-199104

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9011912168

main90119-12168

9161160816

main91611-60816

9161161028

main91611-61028

9161161035

main91611-61035

9165161040

main91651-61040

9322016012

main93220-16012

28 parts on this diagram · 3 diagrams in section
