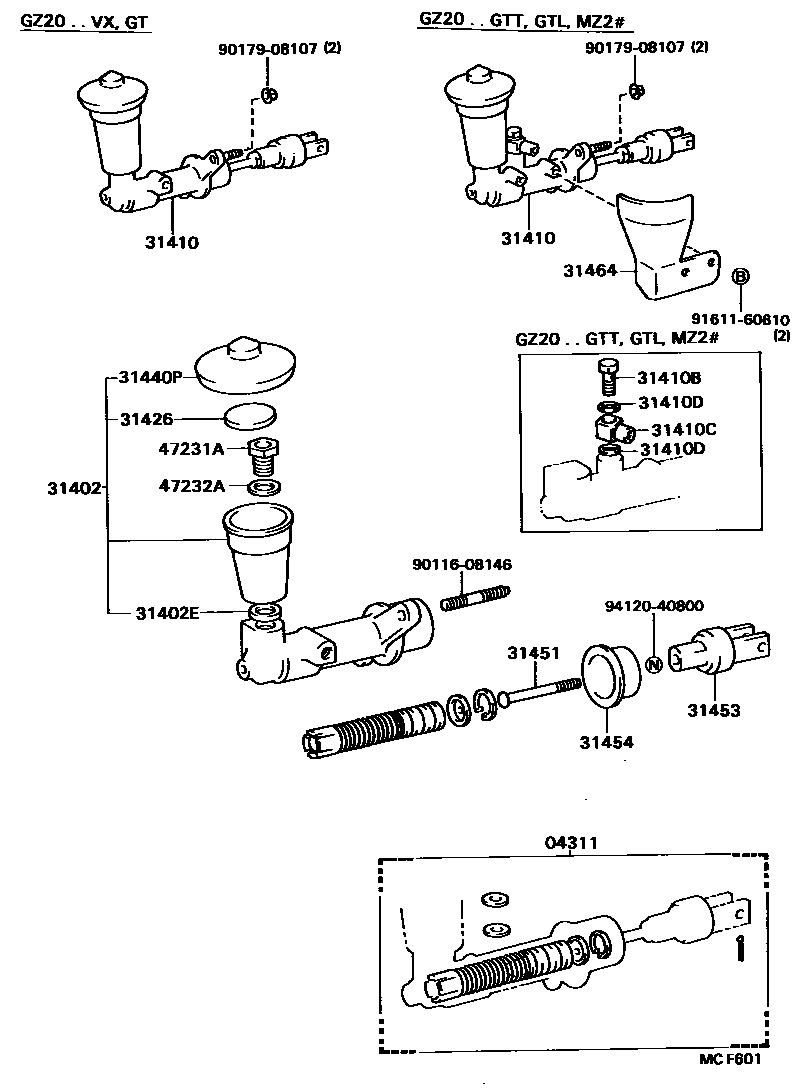

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-22050iGZ20,MZ2#..5F198801-199104

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-14010iGZ20..5F..(GT,VX)198801-199104

main31402-14020iGZ20,MZ2#..5F..TWT198801-199104

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iGZ20,MZ2#..5F..TWT198801-199104

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14192iGZ20..5F..(EFI,TWC)198801-198811

sub31410-14193

main31410-14193iGZ20..5F..(GT,VX)198811-199104

main31410-14212iGZ20,MZ2#..5F..TWT198801-198811

sub31410-14213

main31410-14213iGZ20,MZ2#..5F..TWT198811-199104

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-10012iGZ20,MZ2#..5F..TWT198801-199104

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90405-10165iGZ20,MZ2#..5F..TWT198801-199104

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-10074iGZ20,MZ2#..5F..TWT198801-199104

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGZ20,MZ2#..5F198801-199104

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGZ20,MZ2#..5F198801-199104

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iGZ20,MZ2#..5F198801-199104

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-14010iGZ20,MZ2#..5F198801-198809

sub31404-14011

main31404-14011iGZ20,MZ2#..5F198809-199104

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14020iGZ20,MZ2#..5F198801-199104

31464INSULATOR, CLUTCH MASTER CYLINDER HEAT

main31464-14010iGZ20,MZ2#..5F..TWT198801-199104

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iGZ20,MZ2#..5F..TWT198801-199104

main47231-30010iGZ20..5F..(GT,VX)198801-199104

47232AWASHER, CLUTCH MASTER CYLINDER RESERVOIR SET BOLT

main47232-30010iGZ20..5F..(GT,VX)198801-199104

9011608146

main90116-08146

9017908107

main90179-08107

9161160610

main91611-60610

9412040800

main94120-40800

19 parts on this diagram · 1 diagram in section
