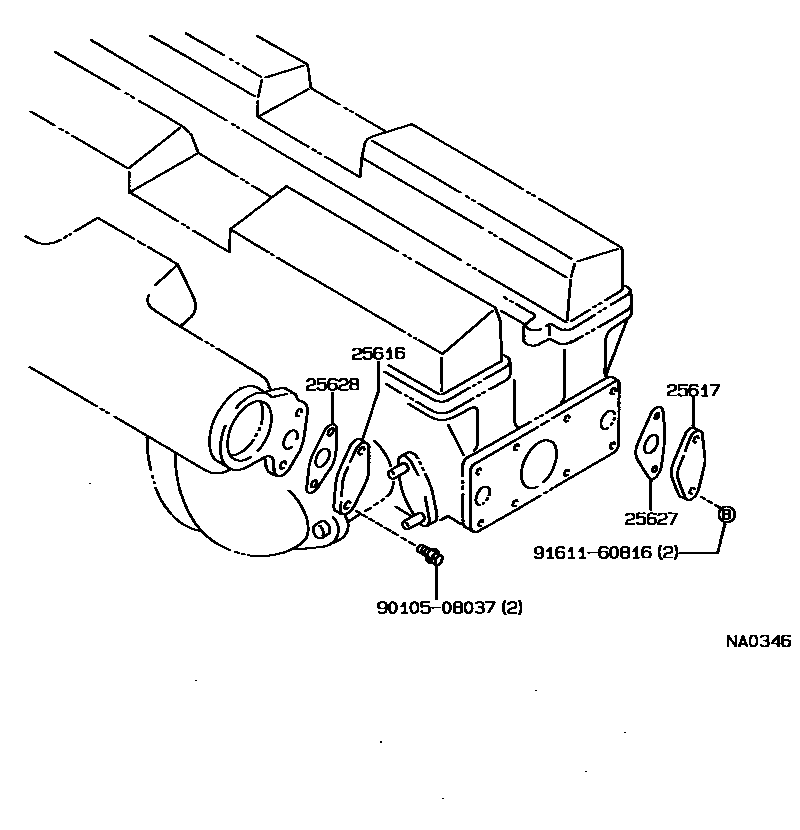

EXHAUST GAS RECIRCULATION SYSTEM

25616PLATE, HOLE COVER(FOR EGR PIPE)

main25617-42010i7MGTEU..MZ2#198801-199104

25617PLATE, EGR HOLE COVER

main25615-43020i7MGTEU..MZ2#198801-199104

25627GASKET, EGR VALVE

main25627-42040i7MGTEU..MZ2#198912-199104

main25627-43030i7MGTEU..MZ2#198801-198912

sub25627-42040

25628GASKET, EGR INLET

main25628-42010i7MGTEU..MZ2#198801-198908

sub25628-42020

main25628-42020i7MGTEU..MZ2#198908-199104

9010508037

main90105-08037

9161160816

main91611-60816

6 parts on this diagram · 1 diagram in section
