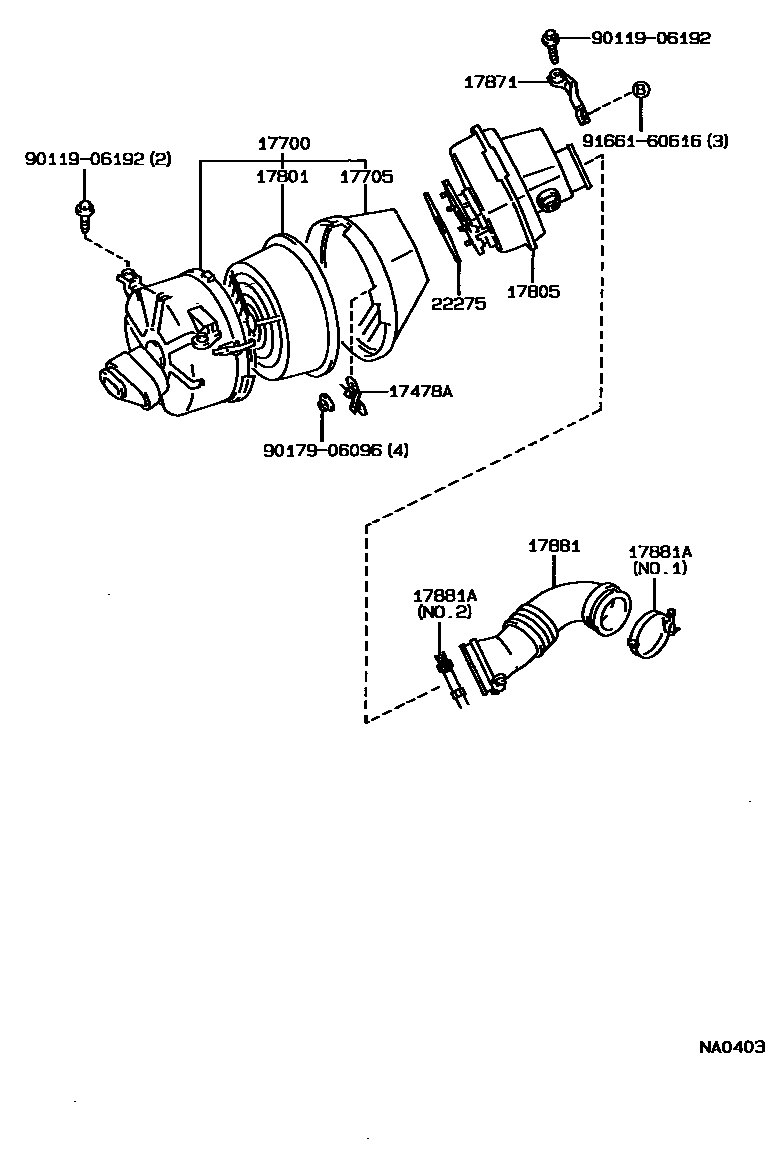

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

17478APLATE, LOCK

main17478-42010i7MGTEU..MZ2#198801-199104

main17478-43010i1GEU,1GG#..GZ20198801-199104

17700CLEANER ASSY, AIR

main17700-42210i7MGTEU..MZ2#198801-199104

main17700-70050i1GFE,1GG#..GZ20198801-199104

main17700-70060i1GEU..GZ20198801-198901

17705CAP SUB-ASSY, AIR CLEANER

main17705-42100i7MGTEU..MZ2#198801-199104

main17705-70050i1GEU,1GG#..GZ20198801-199104

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-70020i1GEU,1GG#..GZ20198801-199104

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-70050i1GEU,1GGEU..GZ20198801-199104

17871STAY, AIR CONNECTOR

main17871-42010i7MGTEU..MZ2#198801-199104

main17871-70010i1GEU,1GGEU..GZ20198801-199104

main17871-88340i1GGTEU..GZ20198801-199104

17881HOSE, AIR CLEANER, NO.1

main17346-42020i7MGTEU..MZ2#198801-199104

main17881-70160i1GGTEU..GZ20198801-199104

main17881-70170i1GGEU..GZ20198801-199104

main17881-70180i1GEU..GZ20198801-198901

main17881-70230i1GFE..GZ20198901-199104

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70003i7MGTEU..MZ2#198801-199104

main96111-10710i1GEU..GZ20198801-198901

main96111-10750i1GGTEU..GZ20198801-199104

main96111-10800i1GEU,1GGEU..GZ20198801-199104

main96111-10900i1GGTEU..GZ20198801-199104

main96111-10950i1GGEU..GZ20198801-199104

22275GASKET, AIR FLOW METER

main22275-42020i7MGTEU..MZ2#198801-199104

main22275-43010i1GEU,1GG#..GZ20198801-199104

9011906192

main90119-06192

9017906096

main90179-06096

9166160616

main91661-60616

12 parts on this diagram · 5 diagrams in section
