1605

16261HOSE, WATER BY-PASS

main16261-70020i198801-198901

sub16261-70030

main16261-70050i198901-199008

sub16261-70051

main16261-70051i199008-199104

main16261-88300i198801-199104

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i198801-198808

sub96135-51300

main90467-13051i198808-199104

sub96135-51300

main90467-26003i198801-199104

sub90467-26007

16264HOSE, WATER BY-PASS, NO.2

main16264-70060i198901-199104

main90910-05168i198801-199104

main99555-10100i198801-198901

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i198801-198808

sub96135-51300

main90467-13051i198808-199104

sub96135-51300

main90467-15016i198801-199104

sub96135-51400

16267HOSE, WATER BY-PASS, NO.3

main16267-42010i198801-199104

main16267-70020i198801-198901

main90910-05169i198801-199104

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-13001i198801-198808

sub96135-51300

main90467-13051i198808-198901

sub96135-51300

main90467-15016i198801-199104

sub96135-51400

main96135-41300i198808-199104

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-42030i198801-198808

sub16268-42041

sub16268-42051

main16268-42050i198808-199005

sub16268-42051

main16268-42051i199005-199104

main16268-70011i198801-198901

main16268-70030i198901-199104

sub16268-70031

main16268-88301i198801-199006

sub16268-88302

main16268-88302i199006-199104

16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

main90467-13001i198801-198808

sub96135-51300

main90467-13051i198808-198901

sub96135-51300

16268GGASKET(FOR WATER BY-PASS PIPE)

main90430-18012i198801-198901

main90430-22006i198801-198912

sub90430-22008

main90430-22008i198912-199104

16268HBOLT, UNION(FOR WATER BY-PASS PIPE)

main90401-18006i198801-198901

main90401-22004i198801-199104

16278PIPE, WATER BY-PASS, NO.2

main16278-70040i198801-198901

main16278-70060i198901-199009

main16278-70061i199009-199104

main16278-88300i198801-198808

*53

main16278-88300i198801-198807

*54

main16278-88301i198807-199012

*54

sub16278-88302

main16278-88301i198808-199012

*53

sub16278-88302

main16278-88302i199012-199104

*53

main16278-88302i199012-199104

*54

main16278-88340i198801-199103

sub16278-88341

main16278-88341i199103-199104

16279PIPE, WATER BY-PASS, NO.3

main16279-70020i198801-198901

16321INLET, WATER

main16321-70011i198801-198901

main16321-70030i198901-199104

main16321-88301i198801-199104

main16321-88340i198801-199104

16323HOUSING, WATER INLET

main16323-70011i198801-198901

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i198801-199104

sub16325-63011

16326GASKET, WATER INLET HOUSING, NO.2

main16326-70011i198801-199104

sub16326-70012

16331OUTLET, WATER

main16331-42021i198801-199104

main16331-70050i198801-198901

main16331-70060i198901-199104

main16331-88300i198801-199104

main16331-88340i198801-198809

sub16331-88341

main16331-88341i198809-199104

16331ATHERMOSTAT

main90916-03054i198801-198808

sub90916-03083

main90916-03060i198801-198901

sub90916-03090

main90916-03063i198801-199104

main90916-03081i198901-199104

main90916-03083i198808-199104

16341GASKET, WATER OUTLET

main16341-35010i198801-199104

NO.1

main16341-70010i198801-198901

main16341-70030i198901-199009

NO.2

sub16341-70031

main16341-70031i199009-199104

NO.2

sub16341-70040

16361FAN

main16361-41070i198801-199104

sub16361-41071

main16361-42020i198801-199104

main16361-70010i198801-199104

main16361-88340i198801-199104

16381BAR, FAN BELT ADJUSTING

main16381-42021i198801-199104

main16381-70021i198801-198901

main16381-70050i198901-199104

main16381-88301i198801-199104

16385SLIDER, FAN BELT ADJUSTING

main16385-70011i198801-198901

main16385-70020i198901-199104

16400RADIATOR ASSY

main16400-42130i198801-198908

sub16400-42120

main16400-42141i198801-198808

main16400-42200i198808-198908

main16400-42230i198908-199104

sub16400-42240

main16400-42240i198908-199104

main16400-70240i198801-198802

sub16400-70241

main16400-70241i198802-199104

sub16400-70251

main16400-70251i198801-199104

main16400-70280i198801-199104

sub16400-70290

main16400-70290i198801-199104

sub16400-42121

16401CAP SUB-ASSY, RADIATOR

main16401-63010i198801-199104

main16401-72090i198908-199104

sub16401-20353

16470TANK ASSY, RADIATOR RESERVE

main16470-70080i198801-199104

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33513i198801-198806

sub90099-33534

main90099-33534i198806-199104

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i198801-199104

16470FCLAMP, RADIATOR RESERVE TANK HOSE

main90929-01134i198801-199104

16471CAP SUB-ASSY, RESERVE TANK

main16405-56052i198801-199104

16472HOSE, BREATHER

main85338-70070i198801-199104

16533SUPPORT, RADIATOR, UPPER

main16505-42010i198801-199104

16571HOSE, RADIATOR, INLET

main16571-42010i198801-199104

main16571-70130i198801-199104

main16571-70140i198801-199104

main16571-70150i198801-198901

main16571-70250i198901-199104

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i198801-199007

sub90467-37003

main90467-37002i199008-199104

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-42010i198801-199104

main16572-70110i198801-199104

main16572-70120i198801-198901

main16572-70190i198901-199104

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002i198801-199104

sub90467-37005

16701SHROUD SUB-ASSY, FAN

main16711-42010i198801-198808

main16711-42060i198808-199104

main16711-70080i198801-199104

16701ACLIP(FOR FAN SHROUD)

main90468-06013i198801-199104

16701BCUSHION, FAN SHROUD

main90541-11002i198801-199104

16712SHROUD, FAN, NO.2

main16702-42010i198801-199104

main16702-70030i198801-199104

9010108114

main90101-08114

9011906092

main90119-06092

9011906475

main90119-06475

9011910109

main90119-10109

9017906070

main90179-06070

9017908044

main90179-08044

9017908155

main90179-08155

9046208015

main90462-08015

9048040012

main90480-40012

9165140610

main91651-40610

9165140820

main91651-40820

9166140618

main91661-40618

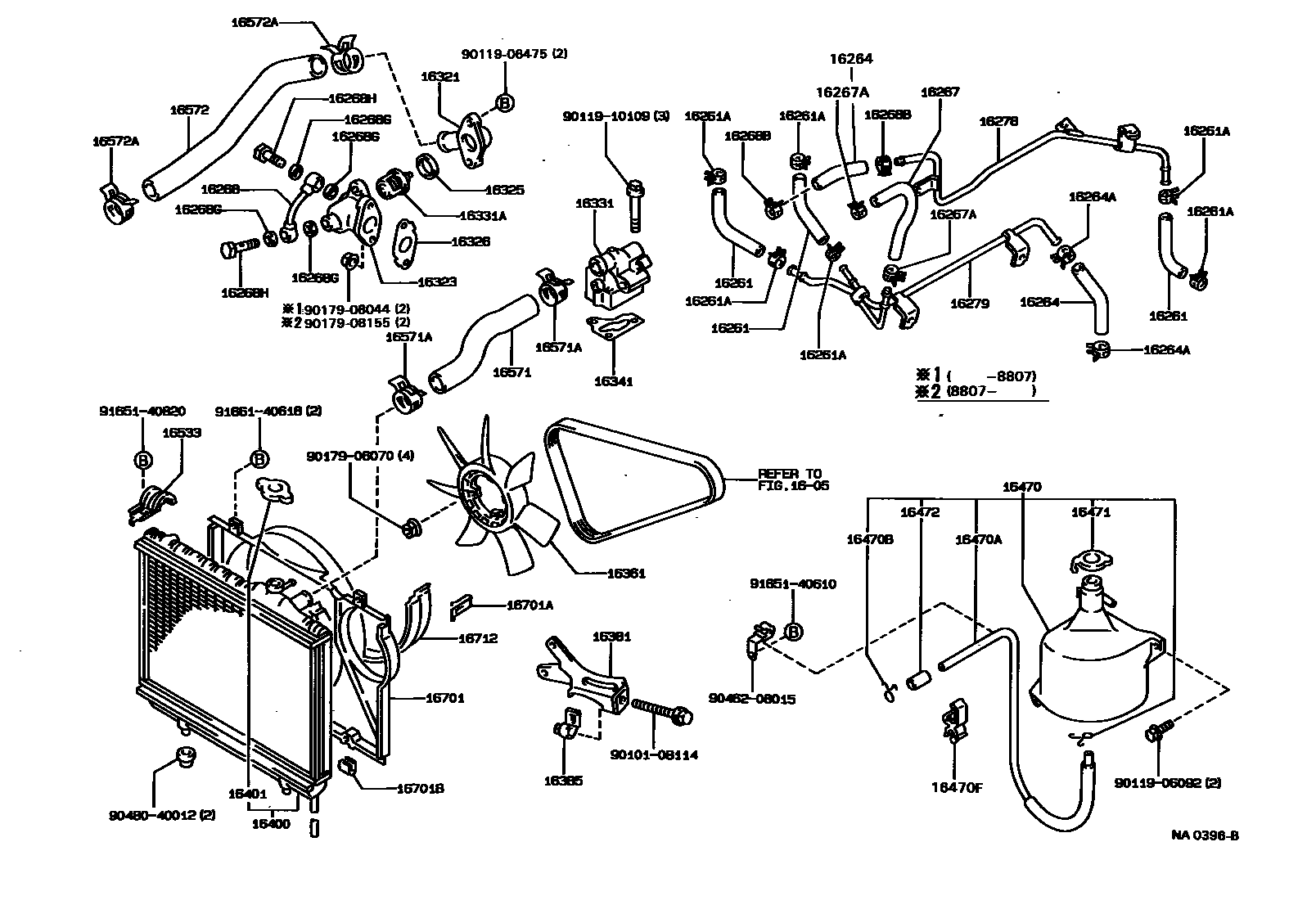

RADIATOR & WATER OUTLET
