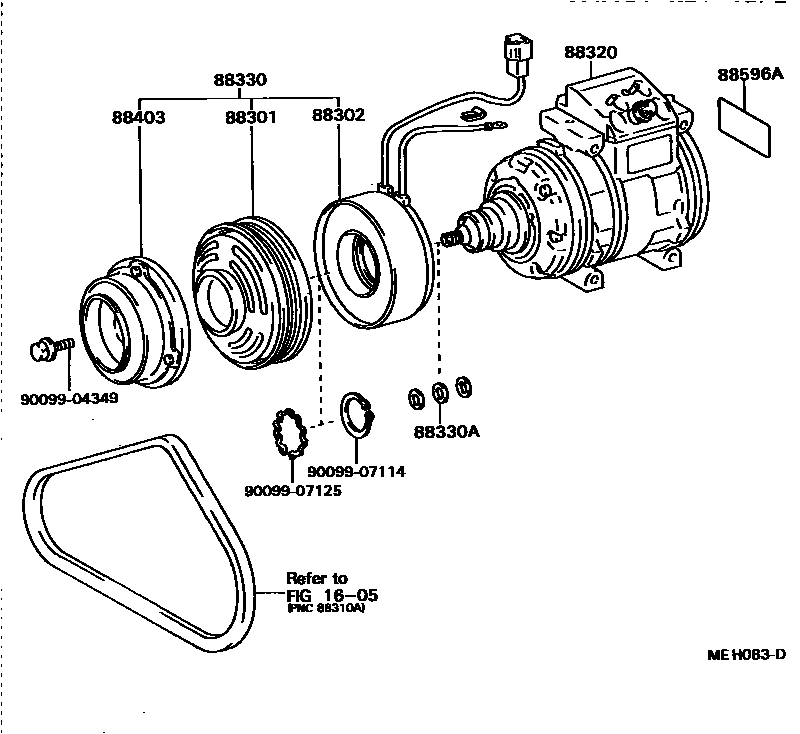

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14080iGZ20,MZ2#198601-198608

sub88412-14110

main88412-14100iGZ20,MZ2#198703-198801

sub88412-12160

main88412-14110iGZ20,MZ2#198608-198703

sub88412-14100

main88412-14130iMZ2#198706-198801

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14100iGZ20,MZ2#198601-198703

sub88411-14110

main88411-14110iGZ20,MZ2#198703-198706

sub88411-14111

main88411-14111iGZ20,MZ2#198706-198801

sub88411-14120

88320COMPRESSOR ASSY, COOLER

main88320-14520iMZ2#198601-198608

sub88320-14523

main88320-14521iMZ2#198608-198801

sub88320-14523

main88320-14530iGZ20198601-198608

sub88320-14532

main88320-14531iGZ20198608-198801

sub88320-14532

88330CLUTCH ASSY, MAGNET

main88410-14180iGZ20,MZ2#198601-198608

sub88410-14181

main88410-14181iGZ20,MZ2#198608-198801

sub88410-14210

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMZ2#198601-198801

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14050iGZ20,MZ2#198601-198703

sub88403-16011

main88403-16010iGZ20,MZ2#198703-198706

sub88403-16011

main88403-16011iGZ20,MZ2#198706-198801

88596APLATE, CAUTION

main88356-12010iMZ2#198608-198801

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125
