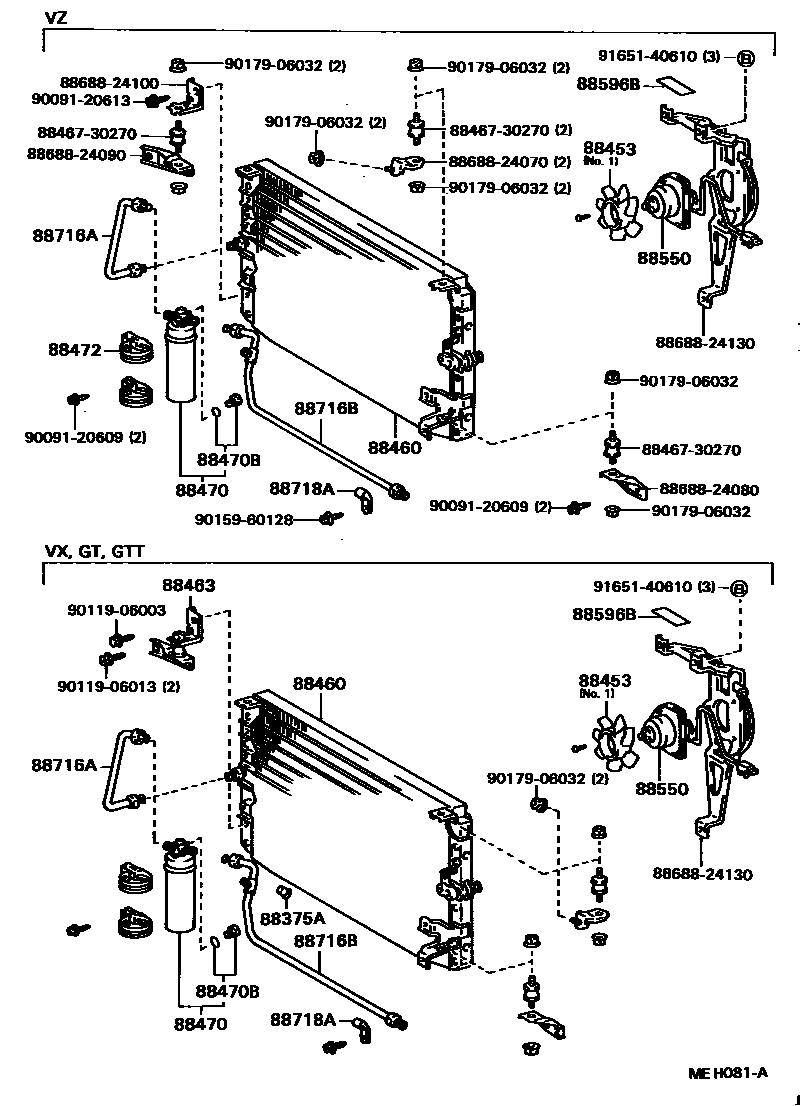

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-20010iGZ20,MZ2#..GT,GTL,GTT,VX198703-198801

main88375-30270iGZ20,MZ2#..GT,GTL,GTT,VX198601-198703

88453FAN, COOLING (FOR CONDENSER)

main88453-12030iMZ2#198601-198705

NO.2

sub88453-28010

main88453-12040iGZ20,MZ2#198601-198801

NO.1

main88453-28010iMZ2#198705-198801

NO.2

88460CONDENSER ASSY, COOLER

main88460-24040iGZ20198601-198801

main88460-24050iMZ2#198601-198603

sub88460-24051

main88460-24051iMZ2#198603-198801

88463BRACKET, COOLER CONDENSER, NO.1

main88463-14070iGZ20,MZ2#..GT,GTL,GTT,VX198711-198801

main88463-24040iGZ20,MZ2#..GT,GTL,GTT,VX198601-198711

88470RECEIVER & DRYER ASSY, COOLER

main88471-95401iGZ20,MZ2#198601-198801

88470BBOLT, FUSE

main88475-12020iGZ20,MZ2#198601-198801

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iGZ20..VZ198601-198801

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iMZ2#198601-198801

NO.2

main88550-24020iGZ20..GT,VX,VZ198601-198801

main88550-24030iGZ20..GTT198601-198801

main88550-24040iMZ2#198601-198801

NO.1

88596BPLATE, CAUTION, NO.1

main88596-24010iGZ20,MZ2#198601-198801

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-24080iGZ20198601-198801

main88716-24150iMZ2#198601-198703

sub88716-24151

main88716-24151iMZ2#198703-198801

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-24090iGZ20198601-198703

sub88716-24091

main88716-24091iGZ20198703-198801

main88716-24160iMZ2#198601-198801

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-12280iGZ20,MZ2#198601-198801

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8868824070BRACKET, COOLER DIAPHRAGM

main88688-24070

8868824080BRACKET, COOLER DIAPHRAGM

main88688-24080

8868824090BRACKET, COOLER DIAPHRAGM

main88688-24090

8868824100BRACKET, COOLER DIAPHRAGM

main88688-24100

8868824130BRACKET, COOLER DIAPHRAGM

main88688-24130

9009120609

main90091-20609

9009120613

main90091-20613

9011906003

main90119-06003

9011906013

main90119-06013

9015960128

main90159-60128

9017906032

main90179-06032

9165140610

main91651-40610

25 parts on this diagram · 3 diagrams in section
