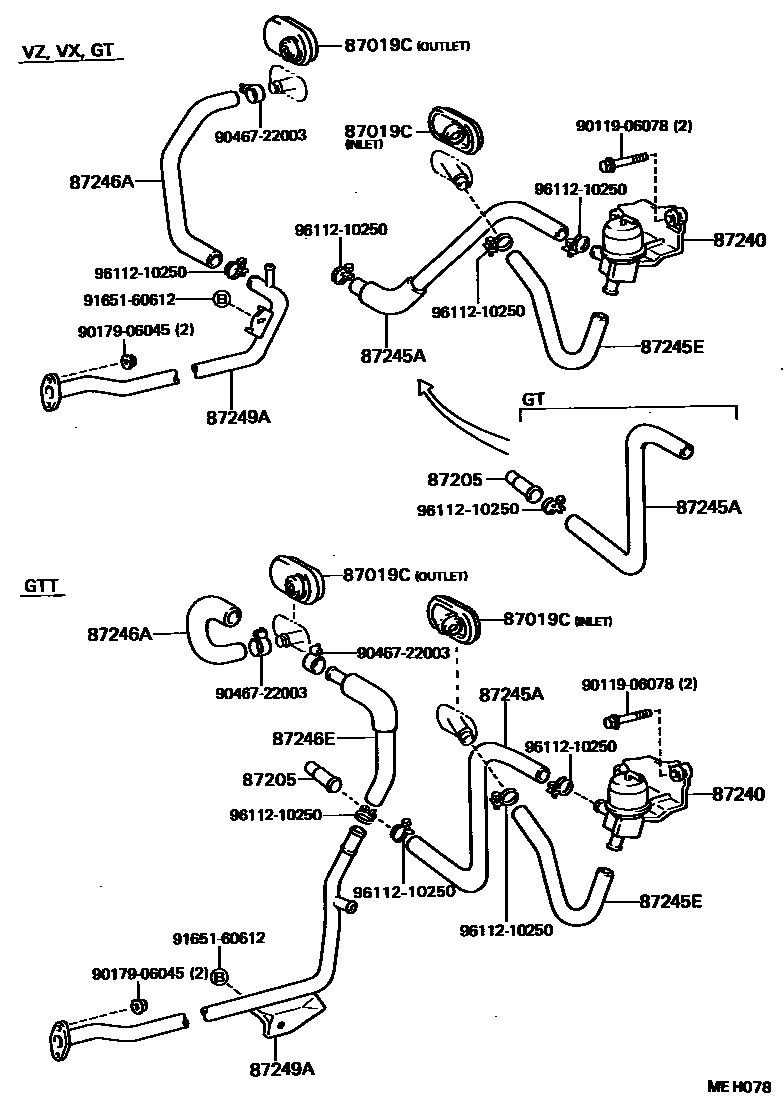

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01272iGZ20,MZ2#198601-198801

INLET

main90480-01337iGZ20,MZ2#198601-198801

OUTLET

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main90406-17001iGZ20..GT,GTT198601-198801

sub90406-17012

87240VALVE ASSY, HEATER WATER

main87240-24020iGZ20,MZ2#198601-198801

87245AHOSE, HEATER WATER, INLET A

main87245-24140iGZ20..VX,VZ198601-198801

main87245-24150iGZ20..GT,GTT198601-198801

main87245-24180iMZ2#198601-198801

87245EHOSE, HEATER WATER, INLET E

main87245-24130iGZ20,MZ2#198601-198801

87246AHOSE, HEATER WATER, OUTLET A

main87245-24160iGZ20..GT,VX,VZ198601-198801

main87245-24170iGZ20..GTT198601-198801

main87245-24190iMZ2#198601-198801

87246EHOSE, HEATER WATER, OUTLET E

main87209-24050iGZ20..GTT198601-198801

87249APIPE, HEATER WATER OUTLET, A

main87208-22011iGZ20..GT,VX,VZ198601-198801

main87208-24010iGZ20..GTT198601-198801

sub87208-24020

9011906078

main90119-06078

9017906045

main90179-06045

9046722003

main90467-22003

9165160612

main91651-60612

9611210250

main96112-10250

13 parts on this diagram · 2 diagrams in section
