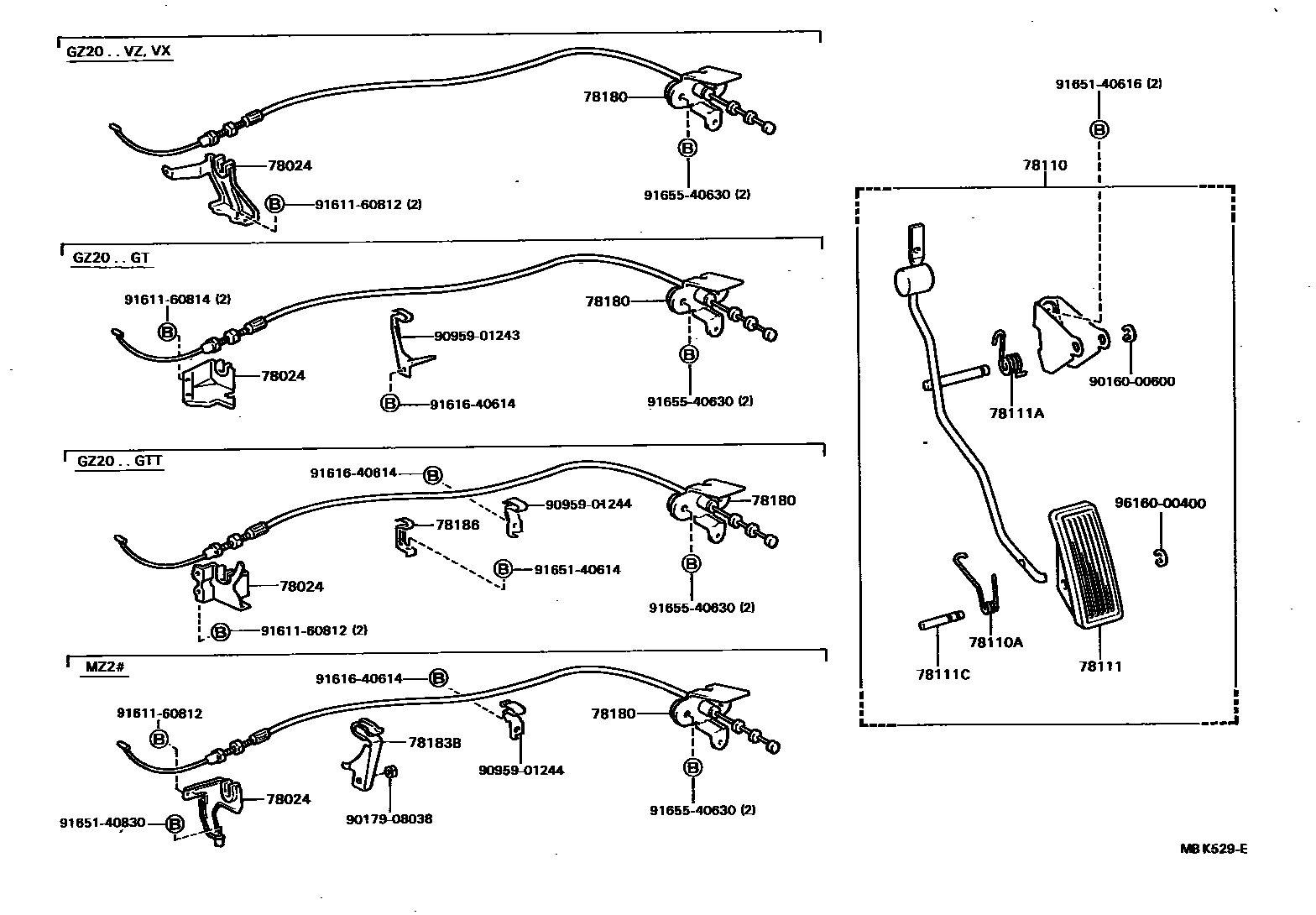

ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-14080iMZ2#198601-198801

main78024-22070iGZ20..GTT198601-198801

sub78024-22071

main78024-30020iGZ20..VX,VZ198601-198801

main78024-30070iGZ20..GT198601-198801

78110ROD ASSY, ACCELERATOR PEDAL

main78120-14430iGZ20..5F..(GT,VX,VZ)198601-198801

sub78120-14431

main78120-14470iGZ20,MZ2#..4FC198601-198801

sub78120-14471

main78120-14490iGZ20..5F..GTT198601-198801

sub78120-14491

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iMZ2#..5F198601-198801

main90508-26054iGZ20..5F..(GT,VX,VZ)198601-198801

78111PEDAL, ACCELERATOR

main78111-12100iGZ20,MZ2#198601-198801

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iGZ20,MZ2#198601-198801

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGZ20,MZ2#198601-198801

78180WIRE ASSY, ACCELERATOR

main78180-14780iMZ2#..5F198601-198801

main78180-14790iMZ2#..4FC198601-198801

main78180-14800iGZ20..GT198601-198701

main78180-14801iGZ20..GT198701-198801

main78180-14880iGZ20..GTT198601-198801

main78180-24011iGZ20..VX,VZ198601-198801

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-14020iMZ2#198701-198801

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-22030iGZ20..GTT198601-198801

9016000600

main90160-00600

9017908038

main90179-08038

9095901243

main90959-01243

9095901244

main90959-01244

9161160812

main91611-60812

9161160814

main91611-60814

9161640614

main91616-40614

9165140614

main91651-40614

9165140616

main91651-40616

9165140830

main91651-40830

9165540630

main91655-40630

9616000400

main96160-00400

21 parts on this diagram · 1 diagram in section
