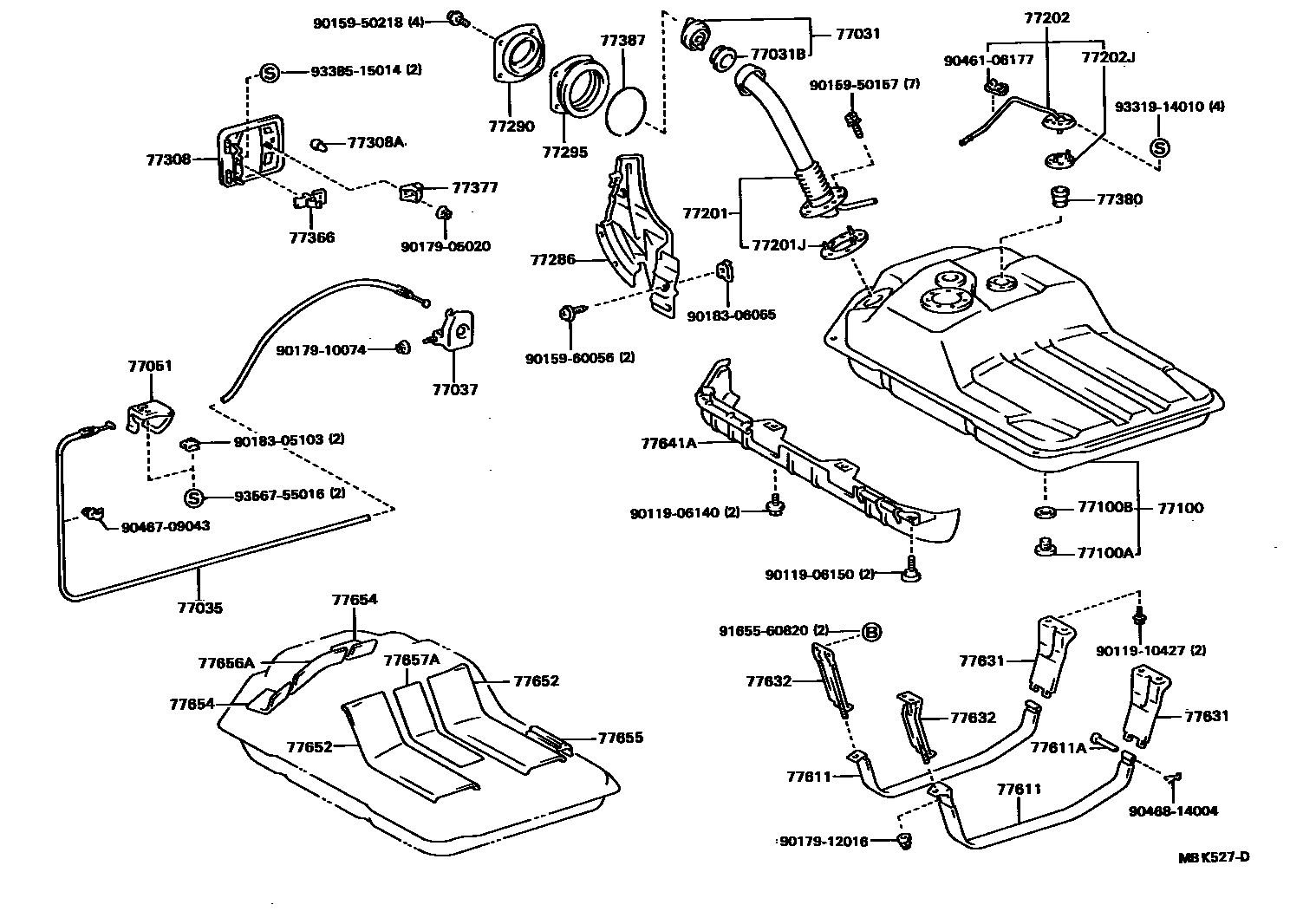

FUEL TANK & TUBE

0001 1 0002 1

77031CAP ASSY, FUEL TANK

main77310-12100iGZ20,MZ2#198601-198801

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iGZ20,MZ2#198601-198801

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-24040iGZ20,MZ2#198601-198801

sub77035-32060

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iGZ20,MZ2#198601-198801

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub77051-24020

sub77051-44010

main77051-24020-05iGZ20,MZ2#..GT,GTL,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub77051-24020

sub77051-44010

main77051-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub77051-24020

sub77051-44010

77100TANK ASSY, FUEL

main77001-19425iGZ20,MZ2#198601-198801

sub77001-19426

sub77012-14051

sub77380-14020

77100APLUG(FOR FUEL TANK)

main90341-20004iGZ20,MZ2#198601-198801

77100BGASKET(FOR FUEL TANK)

main90430-20007iGZ20,MZ2#198601-198801

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14280iGZ20..GTT198601-198801

main77201-24010iGZ20..GT,VX,VZ198601-198801

77201JGASKET(FOR FUEL TANK INLET PIPE)

main77169-14010iGZ20,MZ2#198601-198801

77202TUBE SUB-ASSY, BREATHER

main77012-14050iGZ20,MZ2#198601-198608

main77012-14051iGZ20,MZ2#198608-198801

sub77012-14060

77202JGASKET (FOR BREATHER TUBE)

main77179-14040iGZ20,MZ2#198601-198608

main77179-16010iGZ20,MZ2#198608-198801

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-24020iGZ20,MZ2#198601-198801

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20020iGZ20,MZ2#198601-198801

77295SHIELD, FUEL FILLER PIPE

main77293-20010iGZ20,MZ2#198601-198801

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-24020iGZ20,MZ2#198601-198801

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08013iGZ20,MZ2#198601-198801

sub90541-08009

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iGZ20,MZ2#198601-198801

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iGZ20,MZ2#198601-198801

77380VALVE ASSY, FUEL CUT OFF

main77380-14010iGZ20,MZ2#198601-198608

main77380-14020iGZ20,MZ2#198608-198801

77387RING, FUEL INLET BOX

main77391-16011iGZ20,MZ2#198601-198801

77611BAND, FUEL TANK

main77601-14070iGZ20,MZ2#198601-198801

RH

main77602-14050iGZ20,MZ2#198601-198801

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020iGZ20,MZ2#198601-198801

77631BRACKET, FUEL TANK, NO.1

main77613-14050iGZ20,MZ2#198601-198801

77632BRACKET, FUEL TANK, NO.2

main77614-14030iGZ20,MZ2#198601-198801

RH

main77615-14010iGZ20,MZ2#198601-198801

LH

77641APROTECTOR, FUEL TANK, NO.1

main77641-14090iGZ20,MZ2#198601-198801

COLD SPEC

main77641-24010iGZ20,MZ2#198601-198801

77652CUSHION, FUEL TANK, NO.1

main77651-14080iGZ20,MZ2#198601-198801

sub77651-14090

77654CUSHION, FUEL TANK, NO.2

main77652-14100iGZ20,MZ2#198601-198801

sub77652-14110

77655CUSHION, FUEL TANK, NO.3

main77653-14060iGZ20,MZ2#198601-198801

sub77653-14070

77656ACUSHION, FUEL TANK, NO.4

main77654-14030iGZ20,MZ2#198601-198801

sub77654-14040

77657ACUSHION, FUEL TANK, NO.5

main77655-14010iGZ20,MZ2#198601-198801

sub77655-14020

9011906140

main90119-06140

9011906150

main90119-06150

9011910427

main90119-10427

9015950157

main90159-50157

9015950218

main90159-50218

9015960056

main90159-60056

9017905020

main90179-05020

9017910074

main90179-10074

9017912016

main90179-12016

9018305103

main90183-05103

9018306065

main90183-06065

9046106177

main90461-06177

9046709043

main90467-09043

9046814004

main90468-14004

9165560820

main91655-60820

9331914010

main93319-14010

9338515014

main93385-15014

9356755016

main93567-55016

49 parts on this diagram · 2 diagrams in section
