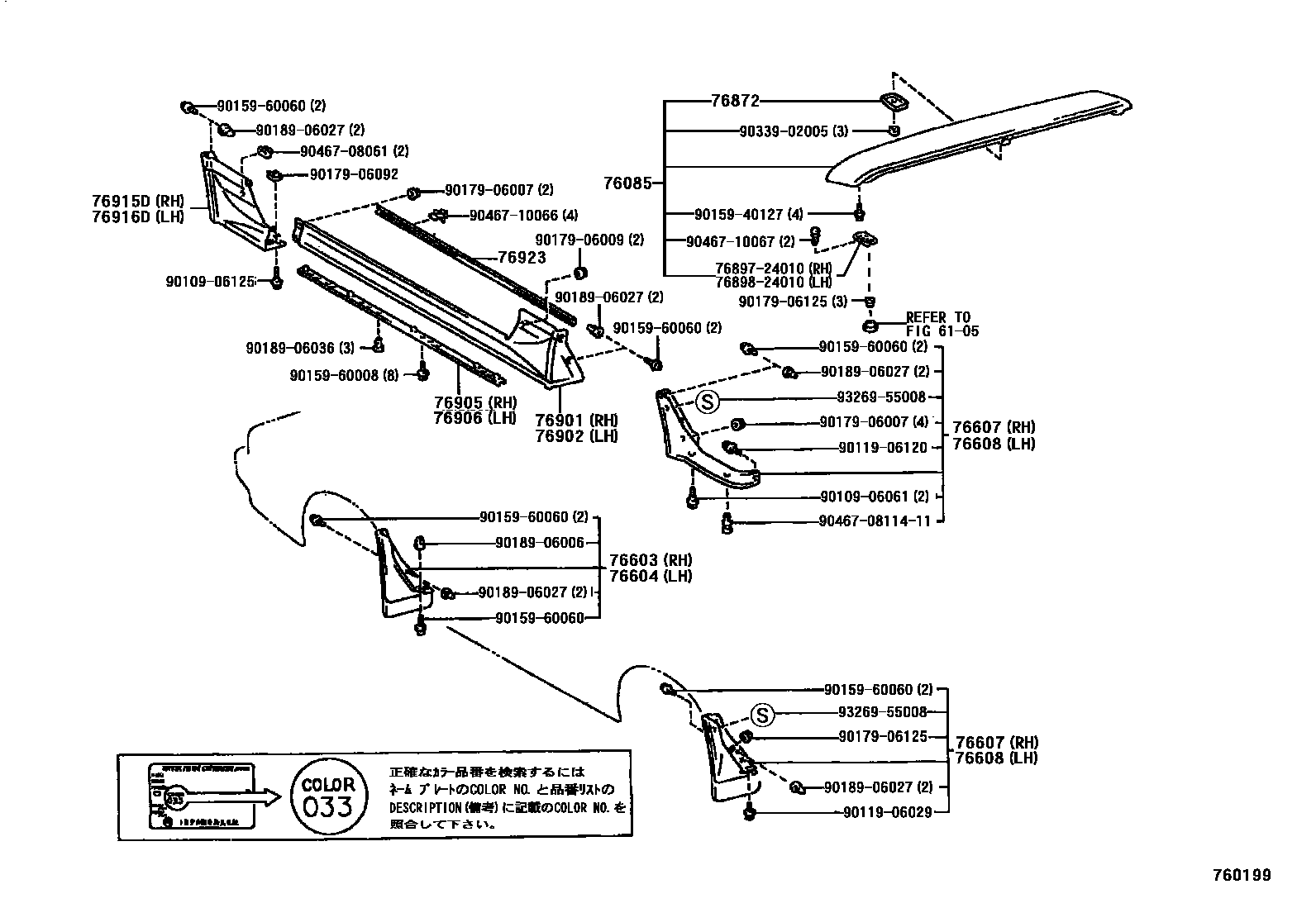

MUDGUARD & SPOILER

6105

76085SPOILER SUB-ASSY, REAR

main76085-24020-02iGZ20198601-198801

RED-M,RED MICA,3H1

sub76871-24903

sub76867-24010

sub76868-24010

sub76872-24010

sub76897-24010

sub76898-24010

sub90159-40127

sub90339-02005

sub90467-10067

main76085-24020-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

SILVER-M,SUPER SILVER 2,166

sub76871-24903

sub76867-24010

sub76868-24010

sub76872-24010

sub76897-24010

sub76898-24010

sub90159-40127

sub90339-02005

sub90467-10067

main76085-24020-05iGZ20,MZ20..GT,GTT,VX198601-198801

BEIGE-M,FINE BEIGE METALLIC,2V0

sub76871-24903

sub76867-24010

sub76868-24010

sub76872-24010

sub76897-24010

sub76898-24010

sub90159-40127

sub90339-02005

sub90467-10067

main76085-24020-08iGZ20,MZ2#198601-198801

SUPER WHITE 2,SUPER WHITE 2,040

sub76871-24903

sub76867-24010

sub76868-24010

sub76872-24010

sub76897-24010

sub76898-24010

sub90159-40127

sub90339-02005

sub90467-10067

main76085-24020-13iGZ20..GTT198601-198801

GRAY-M,DARK GRAY METALLIC,26A

sub76871-24903

sub76867-24010

sub76868-24010

sub76872-24010

sub76897-24010

sub76898-24010

sub90159-40127

sub90339-02005

sub90467-10067

main76085-24020-18iMZ2#..GTL198601-198801

PEARL MICA,CRYSTAL PEARL MICA,25A

sub76871-24903

sub76867-24010

sub76868-24010

sub76872-24010

sub76897-24010

sub76898-24010

sub90159-40127

sub90339-02005

sub90467-10067

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29085-02iGZ20198601-198801

RED-MICA,RED MICA,3H1

sub76603-29085

main76603-29085-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

SUPER SILVER-2M,SUPER SILVER 2,166

sub76603-29085

main76603-29085-05iMZ2#..GTL198601-198801

BEIGE-M,BEIGE METALLIC,25A

sub76603-29085

main76603-29085-08iGZ20,MZ2#198601-198801

SUPER WHITE 2,SUPER WHITE 2,040

sub76603-29085

main76603-29085-13iGZ20..GTT198601-198801

GRAY-M,GRAY METALLIC,26A

sub76603-29085

main76603-29085-18iGZ20,MZ20..GT,GTT,VX198601-198801

SUPER WHITE 2,WHITE PEARL MICA,2V0

sub76603-29085

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29085-02iGZ20198601-198801

RED-MICA,RED MICA,3H1

sub76604-29085

main76604-29085-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

SUPER SILVER-2M,SUPER SILVER 2,166

sub76604-29085

main76604-29085-05iMZ2#..GTL198601-198801

BEIGE-M,BEIGE METALLIC,25A

sub76604-29085

main76604-29085-08iGZ20,MZ2#198601-198801

SUPER WHITE 2,SUPER WHITE 2,040

sub76604-29085

main76604-29085-13iGZ20..GTT198601-198801

GRAY-M,GRAY METALLIC,26A

sub76604-29085

main76604-29085-18iGZ20,MZ20..GT,VX198601-198801

SUPER WHITE 2,WHITE PEARL MICA,2V0

sub76604-29085

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-29105-02iGZ20198601-198801

RED-MICA,RED MICA,3H1

sub76607-29105

main76607-29105-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

SUPER SILVER-2M,SUPER SILVER 2,166

sub76607-29105

main76607-29105-05iMZ2#..GTL198601-198801

BEIGE-M,BEIGE METALLIC,25A

sub76607-29105

main76607-29105-08iGZ20,MZ2#198601-198801

SUPER WHITE 2,SUPER WHITE 2,040

sub76607-29105

main76607-29105-13iGZ20..GTT198601-198801

GRAY-M,GRAY METALLIC,26A

sub76607-29105

main76607-29105-18iGZ20,MZ20..GT,GTT,VX198601-198801

SUPER WHITE 2,WHITE PEARL MICA,2V0

sub76607-29105

main76607-29115-02iGZ20198601-198801

W/*SMU,RED-MICA,RED MICA,3H1

sub76607-29115

main76607-29115-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

W/*SMU,SUPER SILVER-2M,SUPER SILVER 2,166

sub76607-29115

main76607-29115-05iMZ2#..GTL198601-198801

W/*SMU,BEIGE-M,BEIGE METALLIC,25A

sub76607-29115

main76607-29115-08iGZ20,MZ2#..GT,GTL,GTT198601-198801

W/*SMU,SUPER WHITE 2,SUPER WHITE 2,040

sub76607-29115

main76607-29115-13iGZ20..GTT198601-198801

W/*SMU,GRAY-M,GRAY METALLIC,26A

sub76607-29115

main76607-29115-18iGZ20,MZ20..GT,VX198601-198801

W/*SMU,SUPER WHITE 2,WHITE PEARL MICA,2V0

sub76607-29115

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-29105-02iGZ20198601-198801

RED-MICA,RED MICA,3H1

sub76608-29105

main76608-29105-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

SUPER SILVER-2M,SUPER SILVER 2,166

sub76608-29105

main76608-29105-05iMZ2#..GTL198601-198801

BEIGE-M,BEIGE METALLIC,25A

sub76608-29105

main76608-29105-08iGZ20,MZ2#198601-198801

SUPER WHITE 2,SUPER WHITE 2,040

sub76608-29105

main76608-29105-13iGZ20..GTT198601-198801

GRAY-M,GRAY METALLIC,26A

sub76608-29105

main76608-29105-18iGZ20,MZ20..GT,VX198601-198801

SUPER WHITE 2,WHITE PEARL MICA,2V0

sub76608-29105

main76608-29115-02iGZ20198601-198801

W/*SMU,RED-MICA,RED MICA,3H1

sub76608-29115

main76608-29115-03iGZ20,MZ20..GT,GTT198601-198801

W/*SMU,SUPER SILVER-2M,SUPER SILVER 2,166

sub76608-29115

main76608-29115-05iMZ2#..GTL198601-198801

W/*SMU,BEIGE-M,BEIGE METALLIC,25A

sub76608-29115

main76608-29115-08iGZ20,MZ2#..GT,GTL,GTT198601-198801

W/*SMU,SUPER WHITE 2,SUPER WHITE 2,040

sub76608-29115

main76608-29115-13iGZ20..GTT198601-198801

W/*SMU,GRAY-M,GRAY METALLIC,26A

sub76608-29115

main76608-29115-18iGZ20,MZ20..GT,GTT198601-198801

W/*SMU,SUPER WHITE 2,WHITE PEARL MICA,2V0

sub76608-29115

76872PROTECTOR, REAR SPOILER, NO.1

main76872-24010iGZ20,MZ2#198701-198801

76901MUDGUARD SUB-ASSY, SIDE, RH

main76911-24010-02iGZ20198601-198801

RED-MICA,RED MICA,3H1

main76911-24010-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

SUPER SILVER-2M,SUPER SILVER 2,166

main76911-24010-05iMZ2#..GTL198601-198801

BEIGE-M,BEIGE METALLIC,25A

main76911-24010-08iGZ20,MZ2#..GT,GTL,GTT198601-198801

SUPER WHITE 2,SUPER WHITE 2,040

main76911-24010-13iGZ20..GTT198601-198801

GRAY-M,GRAY METALLIC,26A

main76911-24010-18iGZ20,MZ20..GT,VX198601-198801

SUPER WHITE 2,WHITE PEARL MICA,2V0

76902MUDGUARD SUB-ASSY, SIDE, LH

main76912-24010-02iGZ20198601-198801

RED-MICA,RED MICA,3H1

main76912-24010-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

SUPER SILVER-2M,SUPER SILVER 2,166

main76912-24010-05iMZ2#..GTL198601-198801

BEIGE-M,BEIGE METALLIC,25A

main76912-24010-08iGZ20,MZ2#198601-198801

SUPER WHITE 2,SUPER WHITE 2,040

main76912-24010-13iGZ20..GTT198601-198801

GRAY-M,GRAY METALLIC,26A

main76912-24010-18iGZ20,MZ20..GT,VX198601-198801

SUPER WHITE 2,WHITE PEARL MICA,2V0

76905RETAINER SUB-ASSY, SIDE MUDGUARD, LOWER RH

main76905-24010iGZ20,MZ2#198601-198801

76906RETAINER SUB-ASSY, SIDE MUDGUARD, LOWER LH

main76906-24010iGZ20,MZ2#198601-198801

76915DMUDGUARD, SIDE, FRONT RH

main76915-24010-02iGZ20198601-198608

RED-MICA,RED MICA,3H1

sub76915-24011

main76915-24010-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198608

SUPER SILVER-2M,SUPER SILVER 2,166

sub76915-24011

main76915-24010-05iMZ2#..GTL198601-198608

BEIGE-M,BEIGE METALLIC,25A

sub76915-24011

main76915-24010-08iGZ20,MZ2#198601-198608

SUPER WHITE 2,SUPER WHITE 2,040

sub76915-24011

main76915-24010-13iGZ20..GTT198601-198608

GRAY-M,GRAY METALLIC,26A

sub76915-24011

main76915-24010-18iGZ20,MZ20..GT,VX198601-198608

WHITE PEARL MICA,WHITE PEARL MICA,2V0

sub76915-24011

main76915-24011-02iGZ20198608-198801

RED-MICA,RED MICA,3H1

main76915-24011-03iGZ20,MZ20..GT,GTT198608-198801

SUPER SILVER-2M,SPR SLVR 2,166

main76915-24011-05iMZ2#..GTL198608-198801

BEIGE-M,BEIGE METALLIC,25A

main76915-24011-08iGZ20,MZ2#198608-198801

SUPER WHITE 2,SPER WHT2,040

main76915-24011-13iGZ20..GTT198608-198801

GRAY-M,GRAY METALLIC,26A

main76915-24011-18iGZ20,MZ20..GT,VX198608-198801

WHITE PEARL MICA,WHITE PEARL MICA,2V0

76916DMUDGUARD, SIDE, FRONT LH

main76916-24010-02iGZ20198601-198608

RED-MICA,RED MICA,3H1

sub76916-24011

main76916-24010-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198608

SUPER SILVER-2M,SUPER SILVER 2,166

sub76916-24011

main76916-24010-05iMZ2#..GTL198601-198608

BEIGE-M,BEIGE METALLIC,25A

sub76916-24011

main76916-24010-08iGZ20,MZ2#198601-198608

SUPER WHITE 2,SUPER WHITE 2,040

sub76916-24011

main76916-24010-13iGZ20..GTT198601-198608

GRAY-M,GRAY METALLIC,26A

sub76916-24011

main76916-24010-18iGZ20,MZ20..GT,VX198601-198608

WHITE PEARL MICA,WHITE PEARL MICA,2V0

sub76916-24011

main76916-24011-02iGZ20198608-198801

RED-MICA,RED MICA,3H1

main76916-24011-03iGZ20,MZ20..GT,GTT,VX,VZ198608-198801

SUPER SILVER-2M,SPR SLVR 2,166

main76916-24011-05iMZ2#..GTL198608-198801

BEIGE-M,BEIGE METALLIC,25A

main76916-24011-08iGZ20,MZ2#..GT,GTL,GTT198608-198801

SUPER WHITE 2,SPER WHT 2,040

main76916-24011-13iGZ20..GTT198608-198801

GRAY-M,GRAY METALLIC,26A

main76916-24011-18iGZ20,MZ20..GT,VX198608-198801

WHITE PEARL MICA,WHITE PEARL MICA,2V0

76923RETAINER, SIDE MUDGUARD

main76923-24010iGZ20,MZ2#198601-198801

7689724010PROTECTOR, REAR SPOILER, SIDE RH

main76897-24010

7689824010PROTECTOR, REAR SPOILER, SIDE LH

main76898-24010

9010906061

main90109-06061

9010906125

main90109-06125

9011906029

main90119-06029

9011906120

main90119-06120

9015940127

main90159-40127

9015960008

main90159-60008

9015960060

main90159-60060

9017906007

main90179-06007

9017906009

main90179-06009

9017906092

main90179-06092

9017906125

main90179-06125

9018906006

main90189-06006

9018906027

main90189-06027

9018906036

main90189-06036

9033902005

main90339-02005

9046708061

main90467-08061

904670811411

main90467-0811411

9046710066

main90467-10066

9046710067

main90467-10067

9326955008

main93269-55008

36 parts on this diagram · 1 diagram in section
