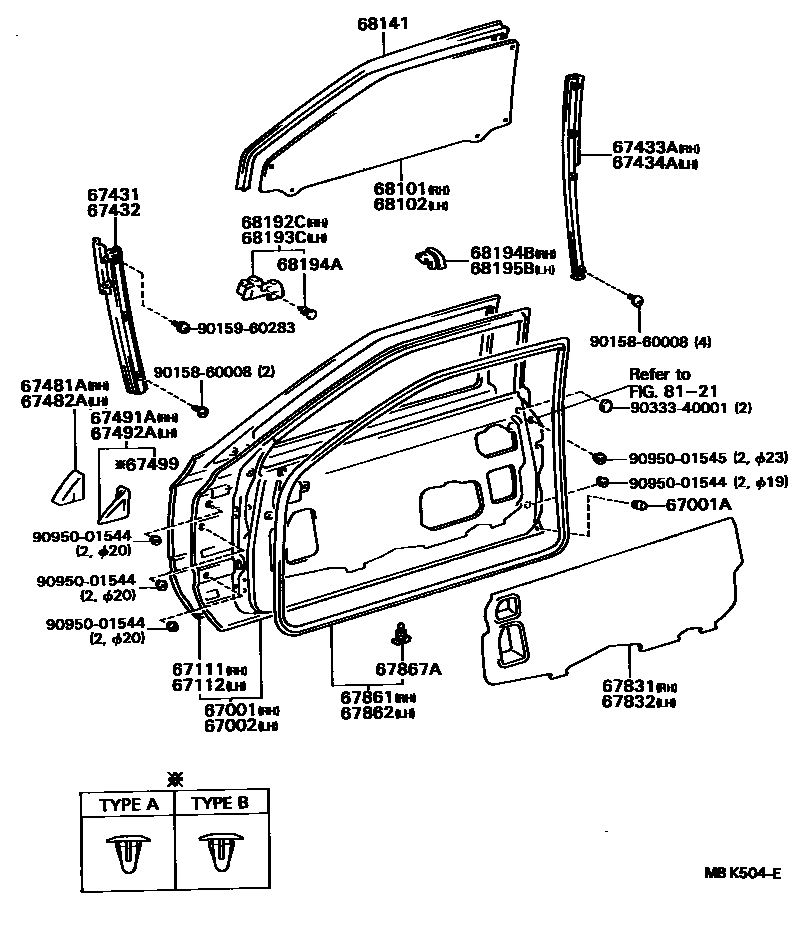

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-24030iGZ20,MZ2#198601-198801

67001ACUSHION, FRONT DOOR PANEL

main90541-09006iGZ20,MZ2#198601-198603

main90541-09051iGZ20,MZ2#198603-198801

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-24030iGZ20,MZ2#198601-198801

67111PANEL, FRONT DOOR, OUTER RH

main67111-24020iGZ20,MZ2#198601-198801

67112PANEL, FRONT DOOR, OUTER LH

main67112-24020iGZ20,MZ2#198601-198801

67431GUIDE, FRONT DOOR WINDOW, FRONT RH

main67431-24020iGZ20,MZ2#198601-198801

67432GUIDE, FRONT DOOR WINDOW, FRONT LH

main67432-24020iGZ20,MZ2#198601-198801

67433AGUIDE, FRONT DOOR WINDOW, REAR RH

main67433-24020iGZ20,MZ2#198601-198801

67434AGUIDE, FRONT DOOR WINDOW, REAR LH

main67434-24020iGZ20,MZ2#198601-198801

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-24010iGZ20,MZ2#198601-198801

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-24010iGZ20,MZ2#198601-198801

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-24030-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub67491-24030

main67491-24030-05iGZ20,MZ2#..GT,GTL,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub67491-24030

main67491-24030-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub67491-24030

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-24030-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub67492-24030

main67492-24030-05iGZ20,MZ2#..GT,GTL,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub67492-24030

main67492-24030-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub67492-24030

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-24010iGZ20,MZ2#198601-198801

TYPE B

main67499-30010iGZ20,MZ2#198601-198801

TYPE A

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67801-24010iGZ20,MZ2#198601-198801

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67802-24010iGZ20,MZ2#198601-198801

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-24040iGZ20,MZ2#198601-198801

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-24040iGZ20,MZ2#198601-198801

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iGZ20,MZ2#198601-198801

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-24060iGZ20,MZ2#198601-198801

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-24060iGZ20,MZ2#198601-198801

68141RUN, FRONT DOOR GLASS

main68141-24030iGZ20,MZ2#198601-198801

RH

main68151-24030iGZ20,MZ2#198601-198801

LH

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-24030iGZ20,MZ2#198601-198801

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-24030iGZ20,MZ2#198601-198801

68194ACLIP(FOR FRONT DOOR BELT SEAL)

main67869-30020iGZ20,MZ2#198601-198801

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-24020iGZ20,MZ2#198601-198801

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-24020iGZ20,MZ2#198601-198801

8121

9015860008

main90158-60008

9015960283

main90159-60283

9033340001

main90333-40001

9095001544

main90950-01544

9095001545

main90950-01545

33 parts on this diagram · 2 diagrams in section
