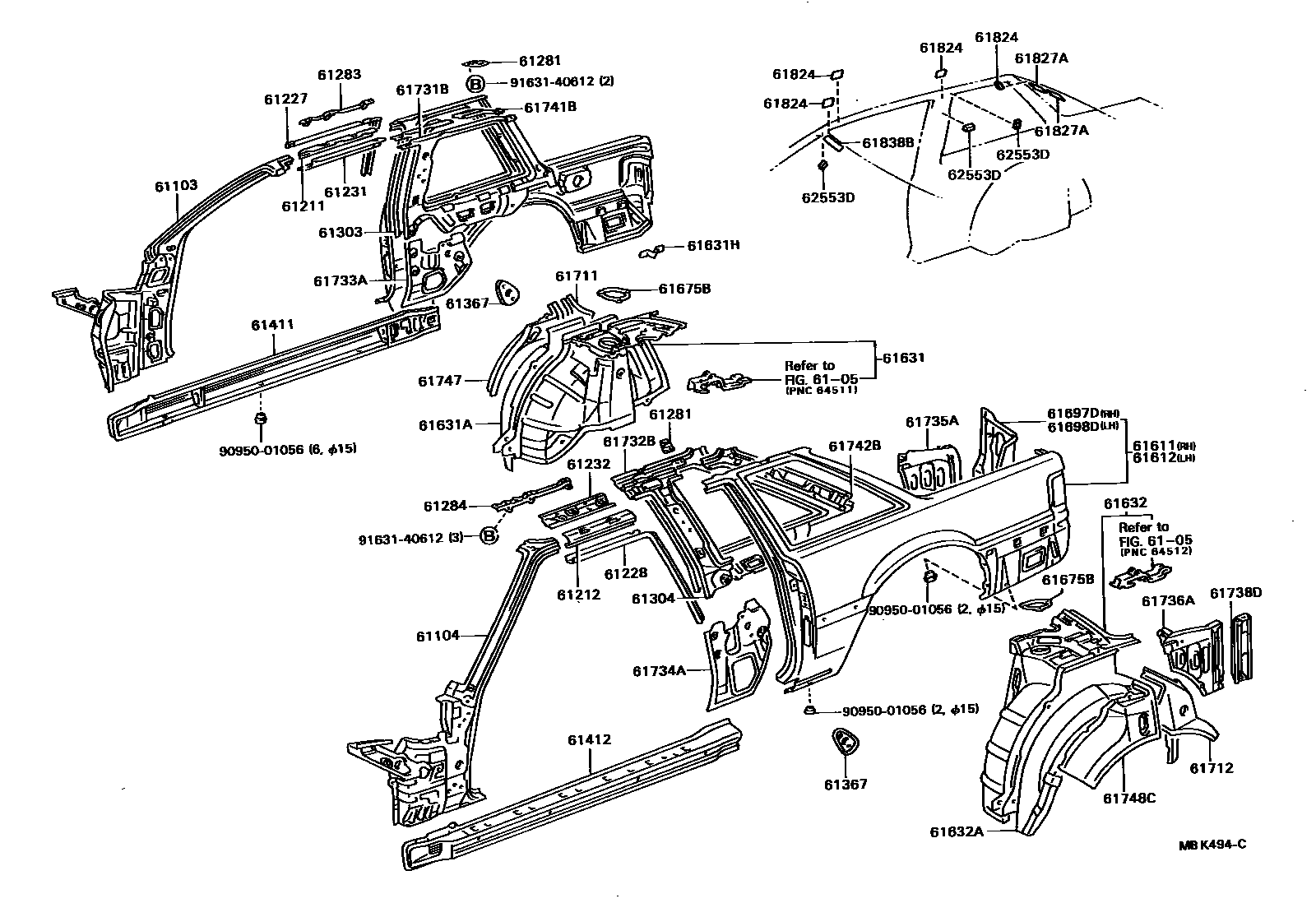

SIDE MEMBER
6105
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61227CHANNEL, ROOF DRIP SIDE, REAR RH
61228CHANNEL, ROOF DRIP SIDE, REAR LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411PANEL, ROCKER, OUTER RH
W/SIDE MUDGUARD
61412PANEL, ROCKER, OUTER LH
W/SIDE MUDGUARD
61631PANEL, QUARTER WHEEL HOUSE, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61631HBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2
61632PANEL, QUARTER WHEEL HOUSE, LH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
61741BREINFORCEMENT, BACK WINDOW OPENING, RH
61742BREINFORCEMENT, BACK WINDOW OPENING, LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61824PLATE, NOISE CONTROL, NO.1
61827APLATE, NOISE CONTROL, NO.4
61838BPLATE, NOISE CONTROL, NO.5
62553DPAD, PILLAR, NO.3
9095001056
main90950-01056
9163140612
main91631-40612
46 parts on this diagram · 1 diagram in section
