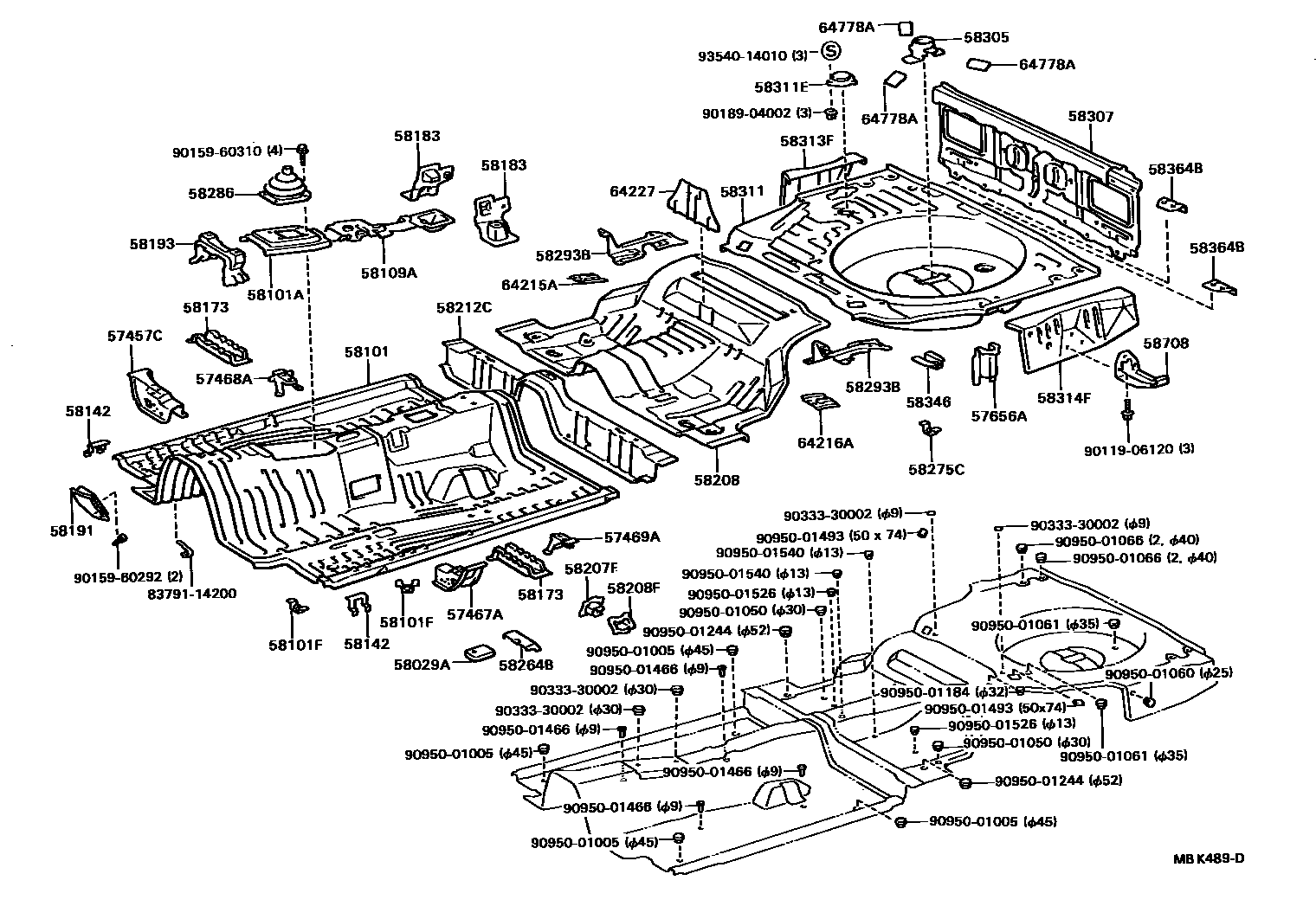

FLOOR PAN & LOWER BACK PANEL
57457CBRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH
57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
58029ABRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP
58101PAN SUB-ASSY, FRONT FLOOR
58101ACOVER, TRANSMISSION AUXILIARY
58101FBRACKET, MOUNTING, FLOOR, NO.1
58109ARETAINER SUB-ASSY, PARKING BRAKE
58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58173DEFLECTOR, FRONT FLOOR STONE
RH
LH
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207FCLAMP SUB-ASSY, PARKING BRAKE CABLE, RH
58208PAN, CENTER FLOOR
W/CRT DISPLAY
58208FCLAMP SUB-ASSY, PARKING BRAKE CABLE, LH
58212CPAN, CENTER FLOOR, FRONT
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58275CBRACKET, WIRE HARNESS PROTECTOR
58286BOOT, SHIFT & SELECT LEVER, NO.1
58293BCARRIER, DISPLAY COMPUTER
RH
LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58311ECOVER, REAR FLOOR SERVICE HOLE
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58346BRACKET, REAR FLOOR HEAT INSULATOR
58364BBRACKET, FUEL TANK SUPPORT
RH
LH
58708CARRIER SUB-ASSY, JACK
64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
64227EXTENSION, CENTER FLOOR TO BRACE
64778APROTECTOR, SPARE WHEEL
8379114200
9011906120
9015960292
9015960310
9018904002
9033330002
9095001005
9095001050
9095001060
9095001061
9095001066
9095001184
9095001244
9095001466
9095001493
9095001526
9095001540
9354014010
54 parts on this diagram · 1 diagram in section
